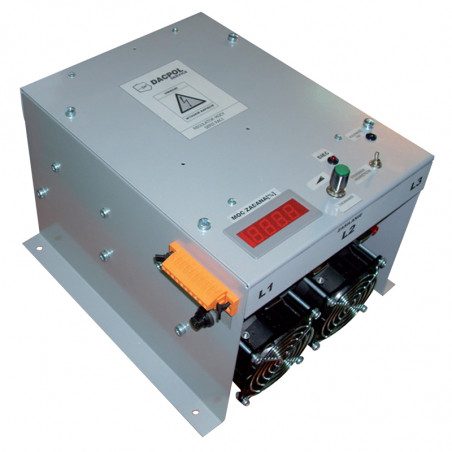

Three-phase thyristor rectifiers of the PT3F series 30÷200 A


Rectifier PT3F sets allow the construction of six-pulse rectifiers with voltage or current regulation in a wide range of supply voltages. The controller is adapted to cooperate with various types of regulators with typical input signal values of 0÷10 V or 4÷20 mA. A blocking input facilitates connection of the controller with a safety automation system.

Performance advantages of thyristor rectifiers

  • convenient mounting and wiring in control cabinets
  • high level of passive safety of the operator ensured by shielding of conductive parts
  • easy fuse replacement
  • visual check of the correctness of the rectifier control
  • localization of damage without the use of measuring instruments
  • easy repair in case of damage

Outstanding durability is achieved through:

  • selection of thyristors for anticipated loads and operating conditions
  • use of a heat sink to ensure optimum thermal conditions for the thyristors
  • use of RC suppressors to reduce switching surges
  • incorporation of fast fuses in the starter design for short-circuit protection of thyristors





Technical data

Max. load current
 30 - 100 A 120 - 250 A
Peak current t = 10 ms 1310 A 1665 A 5100 A 7500 A
Power supply
 3 x 400 V, 50 Hz
Control
Power supply
 3 x 230 V, 50 Hz
Control signal
 0÷10 V or 4÷20 mA
Lock 0 (GND) or 1 (10.24V)
Protection
Surge protection RC suppressors
Short-circuit protection fast fuses
Thermal protection thermal switches, NO contacts
Cooling forced
Insulation test voltage 2,5 kV
Protective cover Metal enclosure
Ingress Protection IP00
Environmental conditions
Operating temperature range 0 ÷ 50 °C
Storage temperature range -20 ÷ 60 °C
Relative humidity from 85% (no condensation)
Altitude up to 1000 m without power reduction
Weight and dimensions
Dimensions L x W x H [mm] 290 x 220 x 193 346 x 304 x 24
Weight [kg]
 6 10
Wiring and mounting
Fixing of connecting cables M6/M8 screws (Cu rails)
Rectangle of fixing holes [mm] 250 x 250 220 x 330
