Произвођач: Honeywell

Ниво сензор СЕРИЈА ЛРН

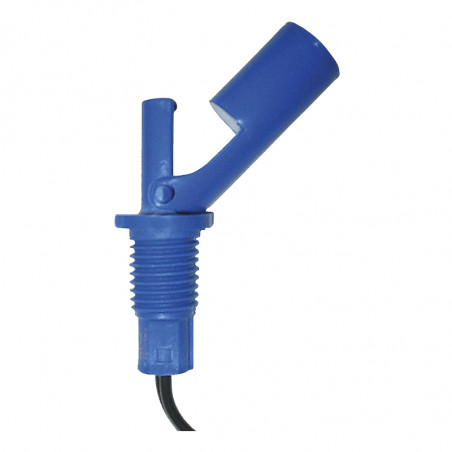

Magnet placed on the float is used for reed activation at both - rising and lowering level.

Sensor construction allows for low and high level detection by turning sensor for 180° Sensors can be mounted from the inside or outside of the container, there is also an universal version available. They are available in nylon, cast iron, polypropylene filled with glass fibre casings. LRN sensors can be used in chemical, petrochemical, food and control processes.

Application

  • Cooling liquids low level
  • Oil or fuel level
  • Boiler safety level
  • Flood state control
  • Food machines
  • Medical equipment

Type Assembly method Casing Operation temperature range Load Seal Assembly method Cable Drawing nr
LRNH31S42 horizontal nylon -30...130°C SPST250Vrms/1A silicone universal 2m 1
LRNH41021 horizontal iron cast -30...130°C SPST 250Vrms/1A none 1/2” NPT outside 0,5m 2
LRNR31N01 angular nylon -30...130°C SPST250Vrms/1A nitrile Ml 6x2 inside 0,5m 3
LRNV31S42 vertical nylon -30...130°C SPST250Vrms/1A silicone universal 2m 4

Dimensions [in/mm]

Drawing 1
CZUJNIKI POZIOMU SERII LRN wymiary		 Drawing 2
CZUJNIKI POZIOMU SERII LRN wymiary
Drawing 3
CZUJNIKI POZIOMU SERII LRN wymiary		 Drawing 4
CZUJNIKI POZIOMU SERII LRN wymiary
