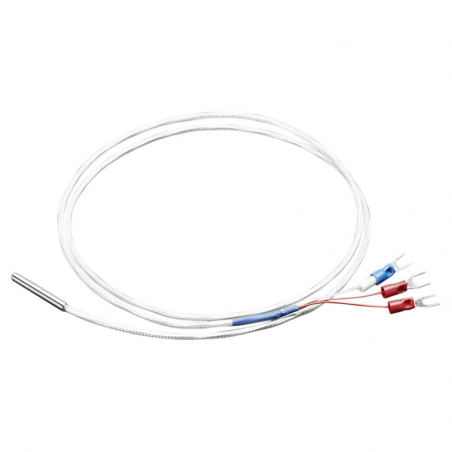

Отпорни сензор. Минијатурни акт-26

Mini straight resistant sensor used for precise liquid and gas mediums temperature measurement. Temperature range -50°C - +250°C. Protection shields made from steel 1.4571 allows for aggressive media measurement. Sensor is placed in additional shield and assembled with screw.

SPECIFICATION:
Type Execution
ACT-21 Normal
ACT-21/EXI Spark safe
SENSOR TECHNICAL PARAMETERS
Version Characteristic Measurement resistor Measurement range Accuracy class Max measurement current Connection type
normal
shockproof		 according to PN-EN-60751 1xPt100, 2xPt100 from -50°C
up to +250°C		 B 8 mA 2 cables
1xPt100 A 5 mA 3, 4
cables
-50°C+150°C 1/3 B DIN 2 mA

Shield
diameter
d[mm]

material according to
WNr/ DIN

 material according to
ASTM /AISI

length
L[mm]
Ø3, Ø4, Ø5 , Ø6 1.4571 316 Ti arbitrary

Additional shield
diameter
d[mm]

material according to
WNr/ DIN

 material according to
ASTM /AISI

length
L[mm]

Stub pipe thread
Ø3, Ø4, Ø5 , Ø6 1.4571 316 Ti arbitrary M20x1,5 G1/2” G3/4” G3/8”

Connection head
Type Max operation temperature Material
MA +100O AL
Max operation pressure
1,6MPa



Marking:
A. Execution
 A

normal
 -
  Spark safe /Exi
B. Resistor type
 B
  Single 1xPt100
  Double 2xPt100
C. Accuracy class
 C

B
 B

A
 A

1/3 B DIN
 1/3 B DIN
D. Connection type


2 - cables
 2p

3 - cables
 3p

4 - cables
 4p
E. Sensor shield diameter d
 E

Ø6
 6
F. Shield immersion length L1
 E

L1
 give in mm
G. Additional shield diameter d
 F

Ø6
 8
H. Additional shield material
 G

1.4571
 1.4571
I. Stub pipe thread D
 H

M20x1,5
 M20x1,5

G1/2"
 G1/2

G3/4"
 G3/4

G3/8"
 G3/8"
J. Additional shield length L
 I

LK
 give in mm
K.Sensor type
 K

normal
 Z

shockproof
 W
