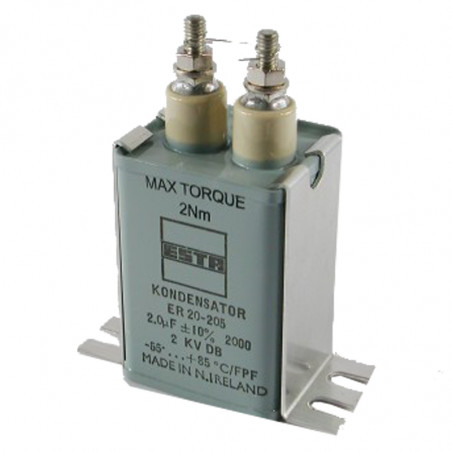

Kondenzatori visokog napona - ER serije

Кратак опис:


Aplikacija:
HV napajanja, HV filteri, vuča, Roentgena generatori

Električni podaci
Temperaturni opseg:
-55°C - 85°C @ UN

-55°C - 105°C @ 0,4 UN
Temperaturni opseg

• standardno
±10% @ 1 kHz
• opcije
±5% @ 1 kHz

±2% @ 1 kHz
Koeficijent snage
0,5 % (20°C; 1kHz)
Montiranje
proizvoljni


TipNapon
[V]
Kapacitet
[µF]
Dimenzije
[mm]
ABCDE
ER10-10410000,15048282020
ER10-50410000,55048282020
ER10-105100017548282020
ER10-405100047560542535
ER10-605100069560542535
ER10-10610001011580484035
ER10-25610002515585674035
ER10-5061000501551301005035
ER20-10420000,16048282020
ER20-25420000,256048282020
ER20-50420000,56048282020
ER20-105200019548282020
ER20-205200027554482235
ER20-4052000411554482235
ER20-6052000613560542535
ER20-8052000813580484035
ER20-10620001011585674035
ER20-12620001213585674035
ER20-15620001515585674035
ER20-2062000201151301005035
ER20-2562000251351301005035
ER20-3062000301551301005035
ER20-4062000401801301005035
ER20-5062000502301301005035
ER30-10430000,16048282020
ER30-25430000,256048282020
ER30-50430000,57548282020
ER30-1053000111548282020
ER30-105X300017554482235
ER30-2053000211554482235
ER30-4053000415560542535
ER30-6053000618080484035
ER30-8053000815585674035
ER30-106300010951301005035
ER30-1263000121151301005035
ER30-1563000151351301005035
ER30-2063000201551301005035
ER30-2563000251801301005035
ER30-3063000302301301005035
ER30-4063000402951301005035
ER30-5063000503451301005035


TipNapon
[V]
Kapacitet
[µF]
Dimenzije
[mm]
ABCDE
ER50-10450000,16048282020
ER50-25450000,257548282020
ER50-50450000,58054282020
ER50-1055000111554482220
ER50-2055000213560542535
ER50-4055000415585674035
ER50-805500081351301005035
ER50-1065000101551301005035
ER50-1265000121801301005035
ER50-1565000152301301005035
ER50-2065000202901301005035
ER50-2565000253451301005035
ER50-5065000502951801807535
ER60-10460000,1655448*35
ER60-25460000,25805448*35
ER60-50460000,510080484035
ER60-1056000110085674035
ER60-205600021001301005035
ER60-405600041351301005035
ER60-605600061801301005035
ER60-805600082501301005035
ER60-1066000102901301005035
ER60-1266000123451301005035
ER60-1566000152601901207535
ER60-20660002018022016412560
ER80-50380000,05586054*60
ER80-10480000,1656054*60
ER80-25480000,25856054*60
ER80-50480000,51406054*60
ER80-1058000112085674060
ER80-205800021201301005060
ER80-405800042001301005060
ER80-605800062701301005060
ER80-805800083451301005060
ER80-1068000102601901207560
ER80-1268000122601801807560
ER80-1568000152801801807560


TipNapon
[kV]
Kapacitet
[µF]
Dimenzije
[mm]
ABCDE
ER100-503100,055880484060
ER100-104100,16580485460
ER100-254100,2510580484060
ER100-504100,514080484060
ER100-10510116085674060
ER100-2051021401301005060
ER100-4051042601301005060
ER100-6051063501301005060
ER100-8051083001901207560
ER100-10610103501901207560
ER100-12610123001801807560
ER100-15610153501801807560
ER120-503120,057585674060
ER120-104120,110085674060
ER120-254120,2510585674060
ER120-504120,51051301007560
ER120-1051211451301007560
ER120-2051222401301007560
ER120-4051242801901207560
ER120-6051262801801807560
ER150-103150,01606054*60
ER150-203150,02606054*60
ER150-503150,05856054*60
ER150-104150,11058048*60
ER150-254150,2512585674060
ER150-504150,519085674060
ER150-504X150,51051301007560
ER150-1051511601301007560
ER150-2051523001301007560
ER150-40515426018018075100
ER150-50515528518018075100
ER150-60515635518018075100
ER150-805158355240180100100
ER200-103200,01608048*60
ER200-203200,02708048*60


TipNapon
[kV]
Kapacitet
[µF]
Dimenzije
[mm]
ABCDE
ER200-503200,051058048*60
ER200-503X200,058585674060
ER200-104200,110585674060
ER200-254200,2519085674060
ER200-504200,51601301007560
ER200-1052013001301007560
ER200-20520225018018090100
ER200-405204305240180100100
ER200-505205355240180100100
ER250-103250,01708567*70
ER250-203250,02758567*70
ER250-503250,051108567*70
ER250-104250,11508567*70
ER250-104X250,1951301006570
ER250-254250,251301301006570
ER250-504250,52501301006570
ER250-10525120018018075100
ER250-205252275240180100100
ER300-103300,01808567*70
ER300-203300,021008567*70
ER300-503300,051358567*70
ER300-104300,12008567*70
ER300-104X300,11201301006570
ER300-254300,251751301006570
ER300-504300,53151301006570
ER300-10530129518018075100
ER300-205302365240180100100
ER400-103400,011058567*70
ER400-203400,021258567*70
ER400-503400,052108567*70
ER400-503X400,051251301006570
ER400-104400,11851301006570
ER400-254400,528018018075100
ER400-504400,5280180ISO75100

Kuciste dimenzija [mm]

BCKLM
4828637615
5448708220
6054759020
80489510830
856710211430
13010014615955
19012014615955
180180230260130
240180290320130

Trajanje
40°C i UN– 50000 h
85°C i 0,6 UN– 50000 h
 Characteristic for 40°C.
Temperaturni koeficijent
