FLIR CM78

True RMS Clamp/DMM with infrared thermometer and Bluetooth METERLiNK®

This meter is supplied in the METERLiNK® kit and includes a Bluetooth module designed for use with FLIR infrared cameras. The combination of a clamp meter and an infrared (IR) camera is used for electrical power measurement, analysis, and documentation..
The FLIR CM78 measurement functions include AC/DC voltage , AC/DC current, resistance, capacitance, frequency , diode test, continuity , type k thermocouple temperature plus non-contact IR temperature
Proper use and care of this meter will provide many years of reliable service.



Key features

  •    True RMS current and voltage measurements.
  •     Multimeter functions include AC/DC voltage, resistance, capacitance, fre- quency, diode, and continuity.
  •     42 mm (1.7″) jaw opening; for conductors up to 2000 MCM.
  •     4000–count backlit display.
  •     Built-in non-contact IR thermometer with laser pointer.
  •     Features include data hold, minimum/maximum, and auto power off.
  •     METERLiNK® Bluetooth transmitter wirelessly transmits voltage and current readings to selected FLIR thermal imaging IR cameras,
    to incorporate meter readings with thermal images.
  •     Complete with CAT IV-1000V Professional Test Leads, 6 x AAA.
  •     FLIR CM78 METERLiNK® for Android app for remote meter reading.
  •     Safety Category Rating: CAT IV-600V, CAT III-1000V

Meter parts

FLIR CM78

Front view

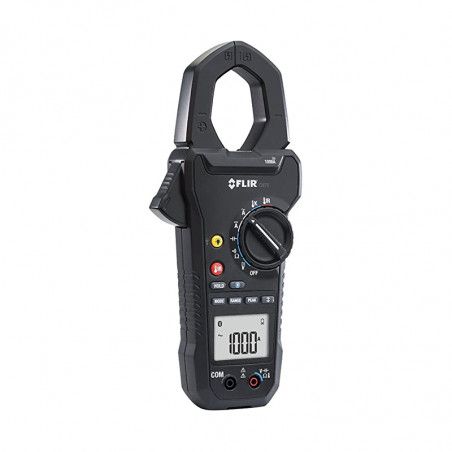

  1. 1. Clamp jaw.
    2. Jaw opening trigger
    3. Function buttons,
    4. Work light.
    5. Function switch,
    6. LCD display.
    7. Probe/thermocouple terminals.


Technical specifications

General specifications

Display 4000-count with bar
Controls • 8-position rotary switch
• Dedicated IR button
• 8 dedicated function buttons: flashlight, IR, maximum/minimum, Bluetooth, hold, range, mode, peak
Backlight White LED
Work light White LED array
Measurement ranges See section Electrical range specifications
Sample rate 20 per second, nominal
Input impedance 10 MΩ (VDC an VAC)
AC voltage bandwidth 45–400 Hz
Power supply 6 xi AAA (LR03) batteries
Battery lifte 100 hours, using alkaline batteries
Auto power off (APO) After 25 minutes (nominal) inactivity; reset when the rotary switch is set to OFF, then set to any posistion again
APO quiescent current 50 µA maximum
Over-current protection fuse No fuse
Measurement type True RMS, crest factor ≤ 3 at full scale up to 500 V, decreasing linearly to ≤ 1,5 at 1000 V
Continuity test Visual and audible.Threshold is 30 Ω
Other indications Low battery, over-range, IR, memory
Operating temperature -10 do 50℃ (14 do 122℉)
Storage temperature -25 do 60℃ (-14 do 140℉)
Operating humidity Maximum 90% up to 35℃ (95℉) decreasing linearly to 60% at 45℃ (113℉)
Storage humidity 90% maximum
Dimensions 257 mm × 110 mm × 50 mm (10.1″ × 4.3″ × 2.0″)
Weight 0,63 kg
Bluetooth range 10m (32ft) maximum
Safety Category Rating CAT IV-600V, CAT III-1000V

Electrical range specifications
Valid for ambient temperature conditions 18 to 28 ℃

Function Range Resolution Accuracy (of reading)
AC current 400,0 A 0,1 A ± (2,5% + 8 digits)
1000 A ± (2,8% + 5 digits)
DC current 400,0 A 0,1 A ± (2,5% + 5 digits)
1000 A ± (2,8% + 5 digits)
AC voltage 400,0 mV 0,1 mV ± (1,5% + 10 digits)
4,000 V 0,001 V ± (1,5% + 5 digits)
40,00 V 0,01 V
400,0 V 0,1 V
1000 V 1 V ± (2,0% + 5 digits)

NOTE
All AC voltage ranges are specified from 5% of the range to 100% of the range.
DC voltage 400,0 mV 0,1 mV ± (1,5%+10 digits)
4,000 V 0,001 V ± (1,5% + 2 digits)
40,00 V 0,01 V
400,0 V 0,1 V
1000 V 1 V ± (2,0% + 2 digits)
Resistance 400,0 Ω 0,1 Ω ± (1,0% + 4 digits)
4,000 kΩ 0,001 kΩ ± (1,5% + 2 digits)
40,00 kΩ 0,01 kΩ
400,0 kΩ 0,1 kΩ
4,000 MΩ 0,001 MΩ ± (2,5% + 3 digits)
40,00 MΩ 0,01 MΩ ± (3,5% + 5 digits)
Capacitance 4,000 nF 0,001 nF ± (5,0% + 30 digits)
40,00 nF 0,01 nF ± (5,0% + 20 digits)
400,0 nF 0,1 nF ± (3,0% + 5 digits)
4,000 μF 0,001 μF
40,00 μF 0,01 μF
400,0 μF 0,1 μF ± (4,0% + 10 digits)
4,000 mF 0,001 mF ± (10% + 10 digits)
40,00 mF 0,01 mF Unspecified
Frequency 4,000 kHz 0,001 kHz ± (1,5% + 2 digits)
Sensitivity:: 100 V (< 50 Hz); 50 V (50–400 Hz); 5 V (401–4000 Hz)

Thermal range specifications

Function Thermocouple
range		 IR range Accuracy (of
reading)
IR temperature
(8:1 ratio)		   -29 do -20℃(-20 do -4℉) ± 5℃
Od -20 do 270℃ ±2.0% reading or ±2℃ (±4℉)
(whichever is greater)
Type K inputs
(excluding probe)		 Od -20 do+120℃   ±(3% rdg + 5℃)
(±(3% rdg + 9℉)

Maximumu input specifications

Function Maximum input
AC voltage, DC voltage 1000 V DC/AC
Thermocouple 1000 V DC/AC
Resistance, capacitance, frequency, diode test 1000 V DC/AC
