Индустријска и железничка претварачи ДЦ / АЦ ОДКС-1300 серија

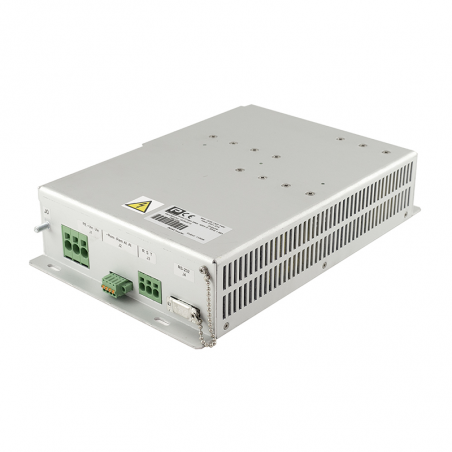

The ODX-1300 are three phase sinusoidal DC/AC inverters that offer 1300VA with multiple input-output combinations (250Vac and 400 Vac and 24Vdc, 72Vdc and 110Vdc). All models have been designed to feed industrial equipment and are suitable for motor control and offer a version for railway applications that comply with the EN50155.
The ODX-1300 inverters have a maximum output current protection and feature a disable function for input under-voltage. They also have protection against overloads, short-circuits and over-temperature with auto-recovery. Parameters can be monitored and adjusted through the PAMTool application via RS232.
Fixing the unit is easy on a mounting surface, as it includes 4 threaded holes for a quick installation. Cooling takes place through internal fans and the efficiency of this series goes up to 91%.

KEY FEATURES

• Sine wave output voltage
• Suitable for motors control
• Adjustable output voltage
• High input-output isolation 3000Vrms
• Remote inhibit
• Remote control via RS232
• Alarm by isolated relay contacts
• Remote ON/OFF opto-coupled
• According to the standard EN50155
• Fire and smoke: EN45545-2 approved
• Efficiency up to 91%

PRODUCT WARRANTY

• 3 years for Industrial version
• 5 years for Railway version
