Произвођач: KIRA Leuchten

Ке-ЛЕД-ЕА 30 ..- П | ЛЕД флуоресцентна лампа

KE-LED-EA 30..-P | LED TUBE LUMINAIRE

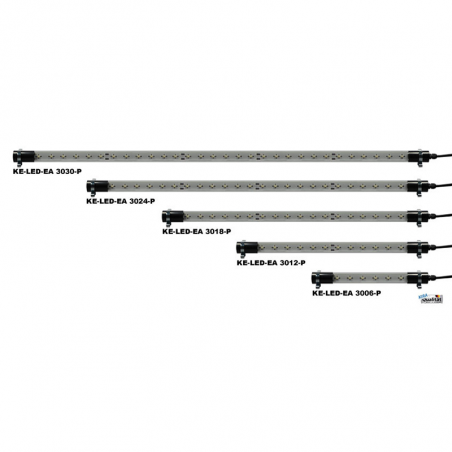

The modular design of the KE-LED-EA 30xx-P series gives you a consistent design for lighting applications where different mounting conditions are to be considered. The lamp is available with 6/12/18/24 or 30 POWER LEDs. This allows a luminaire length of at least 325mm up to 1185mm to be realized. Due to its very slim design, it can be used as an industrial, machine and system light without an external ballast.

Technical Data KE-LED-EA 3006-P / 3012-P / 3018-P / 3024-P / 3030-P
Illuminant POWER LED with 6, 12, 18, 24, oder 30 modules / 5000 Kelvin
Power 3006: 7 W | 3012: 9 W | 3018: 18 W | 3024: 24 W | 3030: 24 W
Luminous flux 3006: 600 Lm | 3012: 1200 Lm | 3018: 1800 Lm | 3024: 2400 Lm | 3030: 3000 Lm
Voltage 24V DC
Protective tube plexiglas, 30mm Ø
Diffusor optional available (only for model 3006 / 3012 / 3018)
End caps ABS, plastic black
Fixing clamps 2 fixing clamps
Cable 5 m H05RN-F 2 x 1,0 mm² (other lengths on request)
Plug Plug
Protection (IP) IP54
Protection class III
Lenght 3006: 325mm | 3012: 540mm | 3018: 755mm | 3024: 970mm | 3030: 1185mm
Ambient temperature range -10°C - +40°C

Color of light 5000k

Type Quantity
POWER LED		 Voltage Amp. Plug Weight Weight
KE-LED-EA 3006-P / 24 6 24 V DC 0,300A ohne 0,47 kg 131420
KE-LED-EA 3012-P / 24 12 24 V DC 0,330A ohne 0,59 kg 131421
KE-LED-EA 3018-P / 24 18 24 V DC 0,650A ohne 0,71 kg 131422
KE-LED-EA 3024-P / 24 24 24 V DC 0,650A ohne 0,83 kg 131423
KE-LED-EA 3030-P / 24 30 24 V DC 1,100A ohne 0,95 kg 131424

Type Dimensions in mm
a b c d e f
KE-LED-EA 3006-P 325 60 210 20 33 30
KE-LED-EA 3012-P 540 60 425 20 33 30
KE-LED-EA 3018-P 755 60 640 20 33 30
KE-LED-EA 3024-P 970 60 855 20 33 30
KE-LED-EA 3030-P 1185 60 1070 20 33 30


Type Description Art.-No.
30 KM Fixation clamp with magnet 290500
FSK 30 Spring steel clamp, galvanized 290084
SELV Trafos see standard accessories

2 fixing clamps included in the scope of delivery
