Произвођач: Kyoritsu

КЕВ6315-03 Анализатор квалитета ЕН. + 3 Цлас Еласт. 1000А

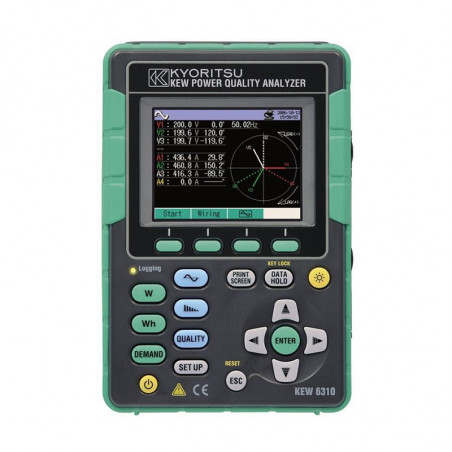

KEW6315-03 POWER QUALITY ANALYZER

  • Simultaneous Power [&] Power quality measurements
    Power/ Harmonics/ Waveform/ Power quality are
    recorded at all CHs. (Voltage: 3ch, Current 4ch)
  • Helpful support functions
    Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement
  • Measurement with high accuracy
    Guaranteed accuracy: ±0.3%rdg(energy),
    ±0.2%rdg(voltage/ current)
  • Complies with the International Standard
    IEC61000-4-30 Class S and the European Standard EN50 160
  • Remote monitoring on PC and Android device
    Remote checking of measurement in real-timeis possible via Bluetooth
    communication. Recorded data can be saved in the supplied SD card.
    EN50160 reportcan be generated after survey by PC software.
  • Various Clamp Current Sensors
    Various types of clamp and  exible sensors are available: from
    1000mA Range up to 3000A Range and Earth leakage measurements
  • Energy consumption check on site
    Trend and demand graphs for easy recognition.
    TFT color displaywith high resolution.


Current (RMS)
Wiring connections 1P2W, 1P3W, 3P3W, 3P4W
Measurements and parameters Voltage, Current, Frequency, Active power, Reactive power, Apparent power, Active energy, Reactive energy, Apparent energy, Power factor (cos0), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate), Capacitance calculation for PF correction unit, Flicker
Voltage (RMS)
Range 600.0/1000V
Accuracy ±0.2%rdg±0.2%f.s.(sine wave, 40^70Hz)
Allowable input W120% of each range (rms). 200% of each range (peak)
Display range 0.15^130% of each range
Crest factor 3 or less
Sampling speed of Voltage transient 2.4^s
Range 8128    (50A type) 8127 (100A type) 8126 (200A type) 8125 (500A type) 8124/8130 (1000A type) 8146/8147/8148 (10A type) 8129    (3000A type) 5/50A/AUTO 10/100A/AUTO 20/200A/AUTO 50/500A/AUTO 100/1000A/AUTO 1/10A/AUTO 300/1000/3000A
Accuracy±0.2%rdg±0.2%f.s.+accuracy of clamp sensor (sine wave, 40^70Hz)
Allowable input W110% of each range (rms). 200% of each range (peak)
Display range 0.15^130% of each range
Crest factor 3 or less
Active power
Accuracy ±0.3%rdg±0.2%f.s. + accuracy of clamp sensor (power factor 1, sine wave, 40^70Hz)
Influence of power factor ±1.0%rdg (reading at power factor 0.5 against power factor 1)
Frequency meter range 40-70Hz
Power supply(AC Line) AC100-240V/50-60Hz/7VA max
Power supply(DC battery) Alkaline size AA battery LR6 or Ni-MH(HR15-51)X6 Battery life approx. 3 h (LR6, Backlight OFF)
Internal memory FLASH memory (4MB)
PC card interface SD card (2GB)
PC communicationinterface USB Ver2.0, Bluetooth Ver2.1+EDR Class2
Display 320X240(RGB)Pixel, 3.5inch color TFT display
Display update period 1 sec
Temperature and humidity range 23±5°C, less than 85% RH (without condensation)
Operating temperature and humidity range 0^45°C, leaa than 85% RH (without condensation)
Storage temperature and humidity range -20^60°C, less than 85% RH (without condensation)
Applicable Standards IEC61010-1 CATIV 300V,CATIII 600V, CATN 1000V Pollution degree 2 IEC61010-2-030, IEC61010-031, IEC61326, EN50160 IEC61000-4-30 Class S, IEC61000-4-15, IEC61000-4-7
Dimension/Weight 175 (L) X 12((W) X 6((D) mm/approx 900g
Included accessories 7141B (Voltage test lead) ,7170 (Power cord), 7219 (USB cable) ,8326-02 (SD card 2GB), 9125 (Carrying case for KEW6315) 9135 (Carrying case for KEW6315-03),Input terminal plateX6, KEW Windows for KEW631( (software) ,Calibration Certificate Quick manual, Alkaline size AA battery (LR6) X6
Optional accessories 8124, 8125, 8126, 8127, 8128 (Load current clamp sensor), 8129, 813((Flexible clamp sensor), 8146, 8147, 8148 (Leakage and Load current clamp sensor), 8312 (Power supply adapter) ,9132 (Magnetic carrying case)
