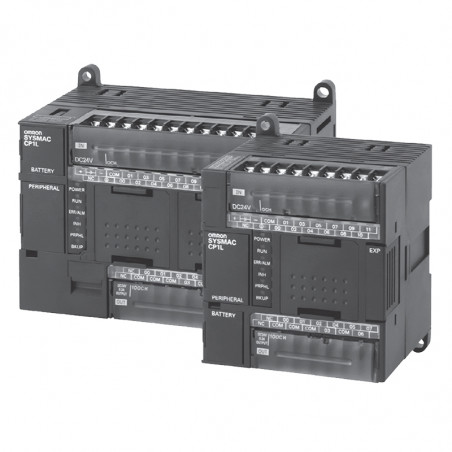

Фотографије су само у информативне сврхе. Погледајте спецификацију производа
please use latin characters
Typ | CP1L-M40 (40 points) | CP1L-M30 (30 points) | CP1L-L20 (20 points) | CP1L-L14 (14 points) | |
---|---|---|---|---|---|
Item Models | CP1L-M40@@-@ | CP1L-M30@@-@ | CP1L-L20@@-@ | CP1L-L14@@-@ | |
Control method | Stored program method | ||||
I/O control method | Cyclic scan with immediate refreshing | ||||
Program language | Ladder diagram | ||||
Function blocks | Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
||||
Instruction length | 1 to 7 steps per instruction | ||||
Instructions | Approx. 500 (function codes: 3 digits) | ||||
Instruction execution time | Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min. | ||||
Common processing time | |||||
Program capacity | 10K steps | 5K steps | |||
Number of tasks | 288 (32 cyclic tasks and 256 interrupt tasks) | ||||
Scheduled interrupt tasks |
1 (interrupt task No. 2, fixed) | ||||
Input interrupt tasks |
6 (interrupt task No. 140 to 145, fixed) | 4 (interrupt task No. 140 to 143, fixed) |
|||
(Mogq bye także określane i wykonywane zadania przerwaniowe szybkiego licznika.) | |||||
Maximum subroutine number | 256 | ||||
Maximum jump number | 256 | ||||
I/O areas |
Input bits | 24: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.11 |
18: CIO 0.00 to CIO 0.11 and |
12: CIO 0.00 to CIO 0.11 | 8: CIO 0.00 to CIO 0.07 |
Output bits | 16: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.07 |
12: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.033 |
8: CIO 100.00 to CIO 100.07 | 6: CIO 100.00 to CIO 100.05 | |
1:1 Link Area | 1,024 bits (64 words): CIO 3000.00 to CIO 3063.15 (CIO 3000 to CIO 3063) | ||||
Serial PLC Link Area |
1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189) | ||||
Work bits | 8,192 bits (512 words): W000.00 to W511.15 (W0 to W511) CIO Area: 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (CIO 3800 to CIO 6143) |
||||
TR Area | 16 bits: TR0 to TR15 | ||||
Holding Area | 8,192 bits (512 words): H0.00 to H511.15 (H0 to H511) | ||||
AR Area | Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959) |
||||
Timers | 4,096 bits: T0 to T4095 | ||||
Counters | 4,096 bits: C0 to C4095 | ||||
DM Area | 32 Kwords: D0 to D32767 | 10 Kwords: D0 to D9999, D32000 to D32767 | |||
Data Register Area | 16 registers (16 bits): DR0 to DR15 | ||||
Index Register Area | 16 registers (32 bits): IR0 to IR15 | ||||
Task Flag Area | 32 flags (32 bits): TK0000 to TK0031 |
Type | CP1L-M40 (40 points) | CP1L-M30 (30 points) | CP1L-L20 (20 points) | CP1L-L14 (14 points) |
---|---|---|---|---|
Item Models | CP1L-M40@@-@ | CP1L-M30@@-@ | CP1L-L20@@-@ | CP1L-L14@@-@ |
Trace Memory | 4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.) | |||
Memory Cassette | A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting. | |||
Clock function | Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55C), -2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C) |
|||
Communications functions | One built-in peripheral port (USB 1.1): For connecting Support Software only | |||
A maximum of two Serial Communications Option Boards can be mounted. |
A maximum of one Serial Communications Option Board can be mounted | |||
Memory backup | Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values. Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery. |
|||
Battery service life | 5 years at 25C. (Use the replacement battery within two years of manufacture.) | |||
Built-in input terminals | 40 (24 inputs, 16 outputs) | 30 (18 inputs, 12 outputs) | 20 (12 inputs, 8 outputs) | 14 (8 inputs, 6 outputs) |
Number of connectable Expansion Units and Expansion I/O Units |
CP-series Expansion Unit and Expansion I/O Units: 3 max. | CP-series Expansion Units and Expansion I/O Units: 1 max. | ||
Max. number of I/O points | 160 (40 built in + 40 per Expansion (I/O) Unit 3 Units) |
150 (30 built in + 40 per Expansion (I/O) Unit 3 Units) |
60 (20 built in + 40 per Expansion (I/O) Unit 1 Unit) |
54 (14 built in + 40 per Expansion (I/O) Unit 1 Unit) |
Interrupt inputs | 6 inputs (Response time: 0.3 ms) | 4 inputs (Response time: 0.3 ms) |
||
Interrupt inputs counter mode | 6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters |
4 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters |
||
Quick-response inputs | 6 points (Min. input pulse width: 50 μs max.) | 4 points (Min. input pulse width: 50 μs max.) |
||
Scheduled interrupts | 1 | |||
High-speed counters | 4 counters, 2 axes (24-VDC input) 4 inputs: Differential phases (4x), 50 kHz or Single-phase (pulse plus direction, up/down, increment), 100 kHz Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison |
|||
Pulse outputs (models with transistor outputs only) |
Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed) 2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction) |
|||
Duty ratio: 0.0% to 100.0% (specified in increments of 0.1% or 1%) 2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz (Accuracy: 5% at 1 kHz) |
||||
Analog control | 1 (Setting range: 0 to 255) | |||
External analog input | 1 input (Resolution: 1/256, Input range: 0 to 10 V). Not isolated. |
CPU Unit | Specifications | Model | Standards | |||
---|---|---|---|---|---|---|
Power supply |
Output method | Inputs | Outputs | |||
CP1L-M CPU Units with 40 Points | AC power supply | Relay output | 24 | 16 | CP1L-M40DR-A | UC1, N, L, CE |
DC power supply | CP1L-M40DR-D | |||||
Transistor output (sinking) | CP1L-M40DT-D | |||||
Transistor output (sourcing) | CP1L-M40DT1-D | |||||
CP1L-M CPU Units with 30 Points | AC power supply | Relay output | 18 | 12 | CP1L-M30DR-A | |
DC power supply | CP1L-M30DR-D | |||||
Transistor output (sinking) | CP1L-M30DT-D | |||||
Transistor output (sourcing) | CP1L-M30DT1-D | |||||
CP1L-L CPU Units with 20 Points | AC power supply | Relay output | 12 | 8 | CP1L-L20DR-A | |
DC power supply | CP1L-L20DR-D | |||||
Transistor output (sinking) | CP1L-L20DT-D | |||||
Transistor output (sourcing) | CP1L-L20DT1-D | |||||
CP1L-L CPU Units with 14 Points | AC power supply | Relay output | 8 | 6 | CP1L-L14DR-A | |
DC power supply | CP1L-L14DR-D | |||||
Transistor output (sinking) | CP1L-L14DT-D | |||||
Transistor output (sourcing) | CP1L-L14DT1-D |
Name | Specifications | Model | Standards |
---|---|---|---|
RS-232C Option Board | For CPU Unit option port. | CP1W-CIF01 | UC1, N, L, CE |
RS-422A/485 Option Board | For CPU Unit option port. | CP1W-CIF11 | |
Memory Cassette | Can be used for backing up programs or auto-booting. | CP1W-ME05M |
Name | Specifications | Model | Standards | |
---|---|---|---|---|
CX-One FA Integrated Tool Package Ver. 2.0 |
CX-One is a package that integrates the Support Software for OMRON PLCs and components. CX-One runs on the following OS. OS:Windows 98SE, Me, NT 4.0 (Service Pack 6a), 2000 (Service Pack 3 or higher), or XP *CX-Thermo runs only on Windows 2000 (Service Pack 3 or higher) or XP. CX-One Ver. 2.0 includes CX-Programmer Ver. 7.@. For details, refer to the CX-One catalog (Cat. No. R134). *The software is provided on CDs for the CXONE-AL@@C-@EV2 and on DVD for the CXONE-AL@@D-@EV2. *Site licenses are available for users who must run the CX-One on many computers. Ask your OMRON representative for details. |
1 license | CXONE-AL01C-EV2 CXONE-AL01D-EV2 | - |
3 license | CXON E-AL03C-EV2 CXON E-AL03 D-EV2 |
|||
10 license | CXONE-AL10C-EV2 CXONE-AL10D-EV2 | |||
50 license | CXON E-AL50C-EV2 CXONE-AL50D-EV2 | |||
USB Programming cable | A-type male to B-type male (Length: 1.8 m) | CP1W-CN221 | - | |
Programming Device Connecting Cable for CP1W-CIF01 RS-232C Option Board |
Connects DOS computers, D-Sub 9-pin (Length: 2.0 m) | For anti-static connectors |
XW2Z-200S-CV | - |
Connects DOS computers, D-Sub 9-pin (Length: 5.0 m) | XW2Z-500S-CV | |||
Connects DOS computers, D-Sub 9-pin (Length: 2.0 m) | XW2Z-200S-V | |||
Connects DOS computers, D-Sub 9-pin (Length: 5.0 m) | XW2Z-500S-V | |||
USB-Serial Conversion Cable (See note) |
USB-RS-232C Conversion Cable (Length: 0.5 m) and PC driver (on a CD-ROM disc) are included. Complies with USB Specification 1.1 On personal computer side: USB (A plug connector, male) On PLC side: RS-232C (D-sub 9-pin, male) Driver: Supported by Windows 98, Me, 2000, and XP |
CS1W-CIF31 |
Note:
1. Cannot be used with a peripheral USB port.
2. CP1L PLCs are supported by CX-Programmer version 7.1 or higher.
Name | Output method | Inputs | Outputs | Model | Standards |
---|---|---|---|---|---|
Expansion I/O Units |
Relay | 24 | 16 | CP1W-40EDR | N, L, CE |
Transistor (sinking) | CP1W-40EDT | ||||
Transistor output (sourcing) | CP1W-40EDT1 | ||||
Relay | 12 | 8 | CP1W-20EDR1 | U, C, L, CE | |
Transistor (sinking) | CP1W-20EDT | U, C, N, L, CE | |||
Transistor output (sourcing) | CP1W-20EDT1 | ||||
Relay | — | 16 | CP1W16ER | CE | |
— | 8 | — | CP1W-8ED | U, C, N, L, CE | |
Relay | — | 8 | CP1W-8ER | ||
Transistor (sinking) | - | 8 | CP1W-8ET | ||
Transistor output (sourcing) | CP1W-8ET1 | ||||
Analog Input Unit | Analog (resolution: 1/6000) | 4 | — | CP1W-AD041 | UC1, CE |
Analog Output Unit |
Analog (resolution: 1/6000) | - | 4 | CP1W-DA041 | UC1, CE |
Analog I/O Unit |
Analog (resolution: 1/6000) | 2 | 1 | CP1W-MAD11 | U, C, N, CE |
CompoBus/S I/O Link Unit |
- | 8 (I/O link input bits) |
8 (I/O link input bits) |
CP1WSRT21 | U, C, N, L, CE |
Temperature Sensor Unit |
2 thermocouple inputs | CP1W-TS001 | U, C, N, L, CE | ||
4 thermocouple inputs | CP1W-TS002 | ||||
2 platinum resistance thermometer inputs | CP1W-TS101 | ||||
4 platinum resistance thermometer inputs | CP1W-TS102 |

Да ли вас занима овај производ? Да ли су вам потребне додатне информације или појединачне цене?
морате бити пријављени
Typ | CP1L-M40 (40 points) | CP1L-M30 (30 points) | CP1L-L20 (20 points) | CP1L-L14 (14 points) | |
---|---|---|---|---|---|
Item Models | CP1L-M40@@-@ | CP1L-M30@@-@ | CP1L-L20@@-@ | CP1L-L14@@-@ | |
Control method | Stored program method | ||||
I/O control method | Cyclic scan with immediate refreshing | ||||
Program language | Ladder diagram | ||||
Function blocks | Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
||||
Instruction length | 1 to 7 steps per instruction | ||||
Instructions | Approx. 500 (function codes: 3 digits) | ||||
Instruction execution time | Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min. | ||||
Common processing time | |||||
Program capacity | 10K steps | 5K steps | |||
Number of tasks | 288 (32 cyclic tasks and 256 interrupt tasks) | ||||
Scheduled interrupt tasks |
1 (interrupt task No. 2, fixed) | ||||
Input interrupt tasks |
6 (interrupt task No. 140 to 145, fixed) | 4 (interrupt task No. 140 to 143, fixed) |
|||
(Mogq bye także określane i wykonywane zadania przerwaniowe szybkiego licznika.) | |||||
Maximum subroutine number | 256 | ||||
Maximum jump number | 256 | ||||
I/O areas |
Input bits | 24: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.11 |
18: CIO 0.00 to CIO 0.11 and |
12: CIO 0.00 to CIO 0.11 | 8: CIO 0.00 to CIO 0.07 |
Output bits | 16: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.07 |
12: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.033 |
8: CIO 100.00 to CIO 100.07 | 6: CIO 100.00 to CIO 100.05 | |
1:1 Link Area | 1,024 bits (64 words): CIO 3000.00 to CIO 3063.15 (CIO 3000 to CIO 3063) | ||||
Serial PLC Link Area |
1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189) | ||||
Work bits | 8,192 bits (512 words): W000.00 to W511.15 (W0 to W511) CIO Area: 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (CIO 3800 to CIO 6143) |
||||
TR Area | 16 bits: TR0 to TR15 | ||||
Holding Area | 8,192 bits (512 words): H0.00 to H511.15 (H0 to H511) | ||||
AR Area | Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959) |
||||
Timers | 4,096 bits: T0 to T4095 | ||||
Counters | 4,096 bits: C0 to C4095 | ||||
DM Area | 32 Kwords: D0 to D32767 | 10 Kwords: D0 to D9999, D32000 to D32767 | |||
Data Register Area | 16 registers (16 bits): DR0 to DR15 | ||||
Index Register Area | 16 registers (32 bits): IR0 to IR15 | ||||
Task Flag Area | 32 flags (32 bits): TK0000 to TK0031 |
Type | CP1L-M40 (40 points) | CP1L-M30 (30 points) | CP1L-L20 (20 points) | CP1L-L14 (14 points) |
---|---|---|---|---|
Item Models | CP1L-M40@@-@ | CP1L-M30@@-@ | CP1L-L20@@-@ | CP1L-L14@@-@ |
Trace Memory | 4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.) | |||
Memory Cassette | A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting. | |||
Clock function | Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55C), -2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C) |
|||
Communications functions | One built-in peripheral port (USB 1.1): For connecting Support Software only | |||
A maximum of two Serial Communications Option Boards can be mounted. |
A maximum of one Serial Communications Option Board can be mounted | |||
Memory backup | Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values. Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery. |
|||
Battery service life | 5 years at 25C. (Use the replacement battery within two years of manufacture.) | |||
Built-in input terminals | 40 (24 inputs, 16 outputs) | 30 (18 inputs, 12 outputs) | 20 (12 inputs, 8 outputs) | 14 (8 inputs, 6 outputs) |
Number of connectable Expansion Units and Expansion I/O Units |
CP-series Expansion Unit and Expansion I/O Units: 3 max. | CP-series Expansion Units and Expansion I/O Units: 1 max. | ||
Max. number of I/O points | 160 (40 built in + 40 per Expansion (I/O) Unit 3 Units) |
150 (30 built in + 40 per Expansion (I/O) Unit 3 Units) |
60 (20 built in + 40 per Expansion (I/O) Unit 1 Unit) |
54 (14 built in + 40 per Expansion (I/O) Unit 1 Unit) |
Interrupt inputs | 6 inputs (Response time: 0.3 ms) | 4 inputs (Response time: 0.3 ms) |
||
Interrupt inputs counter mode | 6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters |
4 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters |
||
Quick-response inputs | 6 points (Min. input pulse width: 50 μs max.) | 4 points (Min. input pulse width: 50 μs max.) |
||
Scheduled interrupts | 1 | |||
High-speed counters | 4 counters, 2 axes (24-VDC input) 4 inputs: Differential phases (4x), 50 kHz or Single-phase (pulse plus direction, up/down, increment), 100 kHz Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison |
|||
Pulse outputs (models with transistor outputs only) |
Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed) 2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction) |
|||
Duty ratio: 0.0% to 100.0% (specified in increments of 0.1% or 1%) 2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz (Accuracy: 5% at 1 kHz) |
||||
Analog control | 1 (Setting range: 0 to 255) | |||
External analog input | 1 input (Resolution: 1/256, Input range: 0 to 10 V). Not isolated. |
CPU Unit | Specifications | Model | Standards | |||
---|---|---|---|---|---|---|
Power supply |
Output method | Inputs | Outputs | |||
CP1L-M CPU Units with 40 Points | AC power supply | Relay output | 24 | 16 | CP1L-M40DR-A | UC1, N, L, CE |
DC power supply | CP1L-M40DR-D | |||||
Transistor output (sinking) | CP1L-M40DT-D | |||||
Transistor output (sourcing) | CP1L-M40DT1-D | |||||
CP1L-M CPU Units with 30 Points | AC power supply | Relay output | 18 | 12 | CP1L-M30DR-A | |
DC power supply | CP1L-M30DR-D | |||||
Transistor output (sinking) | CP1L-M30DT-D | |||||
Transistor output (sourcing) | CP1L-M30DT1-D | |||||
CP1L-L CPU Units with 20 Points | AC power supply | Relay output | 12 | 8 | CP1L-L20DR-A | |
DC power supply | CP1L-L20DR-D | |||||
Transistor output (sinking) | CP1L-L20DT-D | |||||
Transistor output (sourcing) | CP1L-L20DT1-D | |||||
CP1L-L CPU Units with 14 Points | AC power supply | Relay output | 8 | 6 | CP1L-L14DR-A | |
DC power supply | CP1L-L14DR-D | |||||
Transistor output (sinking) | CP1L-L14DT-D | |||||
Transistor output (sourcing) | CP1L-L14DT1-D |
Name | Specifications | Model | Standards |
---|---|---|---|
RS-232C Option Board | For CPU Unit option port. | CP1W-CIF01 | UC1, N, L, CE |
RS-422A/485 Option Board | For CPU Unit option port. | CP1W-CIF11 | |
Memory Cassette | Can be used for backing up programs or auto-booting. | CP1W-ME05M |
Name | Specifications | Model | Standards | |
---|---|---|---|---|
CX-One FA Integrated Tool Package Ver. 2.0 |
CX-One is a package that integrates the Support Software for OMRON PLCs and components. CX-One runs on the following OS. OS:Windows 98SE, Me, NT 4.0 (Service Pack 6a), 2000 (Service Pack 3 or higher), or XP *CX-Thermo runs only on Windows 2000 (Service Pack 3 or higher) or XP. CX-One Ver. 2.0 includes CX-Programmer Ver. 7.@. For details, refer to the CX-One catalog (Cat. No. R134). *The software is provided on CDs for the CXONE-AL@@C-@EV2 and on DVD for the CXONE-AL@@D-@EV2. *Site licenses are available for users who must run the CX-One on many computers. Ask your OMRON representative for details. |
1 license | CXONE-AL01C-EV2 CXONE-AL01D-EV2 | - |
3 license | CXON E-AL03C-EV2 CXON E-AL03 D-EV2 |
|||
10 license | CXONE-AL10C-EV2 CXONE-AL10D-EV2 | |||
50 license | CXON E-AL50C-EV2 CXONE-AL50D-EV2 | |||
USB Programming cable | A-type male to B-type male (Length: 1.8 m) | CP1W-CN221 | - | |
Programming Device Connecting Cable for CP1W-CIF01 RS-232C Option Board |
Connects DOS computers, D-Sub 9-pin (Length: 2.0 m) | For anti-static connectors |
XW2Z-200S-CV | - |
Connects DOS computers, D-Sub 9-pin (Length: 5.0 m) | XW2Z-500S-CV | |||
Connects DOS computers, D-Sub 9-pin (Length: 2.0 m) | XW2Z-200S-V | |||
Connects DOS computers, D-Sub 9-pin (Length: 5.0 m) | XW2Z-500S-V | |||
USB-Serial Conversion Cable (See note) |
USB-RS-232C Conversion Cable (Length: 0.5 m) and PC driver (on a CD-ROM disc) are included. Complies with USB Specification 1.1 On personal computer side: USB (A plug connector, male) On PLC side: RS-232C (D-sub 9-pin, male) Driver: Supported by Windows 98, Me, 2000, and XP |
CS1W-CIF31 |
Note:
1. Cannot be used with a peripheral USB port.
2. CP1L PLCs are supported by CX-Programmer version 7.1 or higher.
Name | Output method | Inputs | Outputs | Model | Standards |
---|---|---|---|---|---|
Expansion I/O Units |
Relay | 24 | 16 | CP1W-40EDR | N, L, CE |
Transistor (sinking) | CP1W-40EDT | ||||
Transistor output (sourcing) | CP1W-40EDT1 | ||||
Relay | 12 | 8 | CP1W-20EDR1 | U, C, L, CE | |
Transistor (sinking) | CP1W-20EDT | U, C, N, L, CE | |||
Transistor output (sourcing) | CP1W-20EDT1 | ||||
Relay | — | 16 | CP1W16ER | CE | |
— | 8 | — | CP1W-8ED | U, C, N, L, CE | |
Relay | — | 8 | CP1W-8ER | ||
Transistor (sinking) | - | 8 | CP1W-8ET | ||
Transistor output (sourcing) | CP1W-8ET1 | ||||
Analog Input Unit | Analog (resolution: 1/6000) | 4 | — | CP1W-AD041 | UC1, CE |
Analog Output Unit |
Analog (resolution: 1/6000) | - | 4 | CP1W-DA041 | UC1, CE |
Analog I/O Unit |
Analog (resolution: 1/6000) | 2 | 1 | CP1W-MAD11 | U, C, N, CE |
CompoBus/S I/O Link Unit |
- | 8 (I/O link input bits) |
8 (I/O link input bits) |
CP1WSRT21 | U, C, N, L, CE |
Temperature Sensor Unit |
2 thermocouple inputs | CP1W-TS001 | U, C, N, L, CE | ||
4 thermocouple inputs | CP1W-TS002 | ||||
2 platinum resistance thermometer inputs | CP1W-TS101 | ||||
4 platinum resistance thermometer inputs | CP1W-TS102 |
