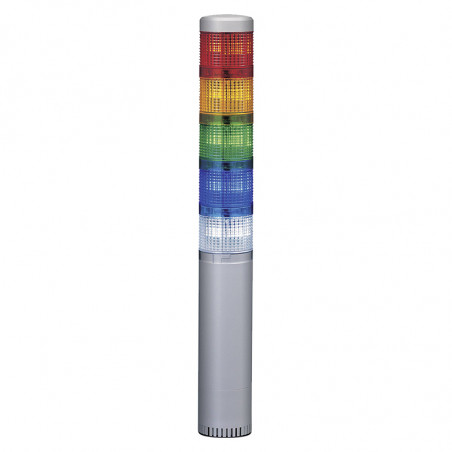

ЛУ5 - модуларни сигналне куле 50 мм
  • ЛУ5 - модуларни сигналне куле 50 мм

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: Patlite

ЛУ5 - модуларни сигналне куле 50 мм

Technical data
· PATLITE’s Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance.
· Built-in Alarms (FB Type): 2 selectable sound patterns up to 85dB at 1m.
· Installation: Direct or pole mount (Option).
· Color-coordinated Wiring: Terminal block color corresponds to the lens colors for quick wiring verification.
· Interchangeable LED Modules: No re-wiring even after installation.
· Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
· Available Colors: Red, Amber, Green, Blue, Clear/White


Connection scheme
Dimensions[mm]



SIZE - 50mm diameter
INPUT VOLTAGES - 24V DC
FUNCTIONS - Continuous Only
- Continuous, Flashing, Alarms
- Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN or PNP) for DC24V
- Direct voltage control for DC24V, continuous and Alarm functions only
MOUNTING - Direct mount only, includes 3 mounting nuts
BODY STYLE - Component style, wiring terminals provided
- interchangeable and stackable after purchase
BODY COLOR - Body: Beige
- Body: Silver
TIERS - Up to 5 modules can be stacked
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
BUZZER - Alarm 1: Selectable, single-tone, continuous alarm; 85dB (at 1m)
- Alarm 2: Selectable, single tone, intermittent (slow beep) alarm; 85dB (at 1m)
CONFORMITY STANDARDS - CE Marking
- UL Listed (US)
- c-UL Listed (Canada)
- RoHS
PROTECTION RATINGS - IP-65
- Type 4 / 4X / 13 (indoor only)



LED Module
Supply modules
Type Colour Supply voltage
LU5-E-R Red 24V DC
LU5-E-Y Yellow
LU5-E-G Green
LU5-E-B Blue
LU5-E-C Transparent
Type Supply voltage Alarm/blinking
LU5-02 24V DC -
LU5-02FB 24V DC 2 sounds/blinking
Мање
