КЕВМАТЕ2012РА мултиметри клешта 120А АЦ / ДЦ ТРМС
  • КЕВМАТЕ2012РА мултиметри клешта 120А АЦ / ДЦ ТРМС

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: Kyoritsu

КЕВМАТЕ2012РА мултиметри клешта 120А АЦ / ДЦ ТРМС

  • 103956

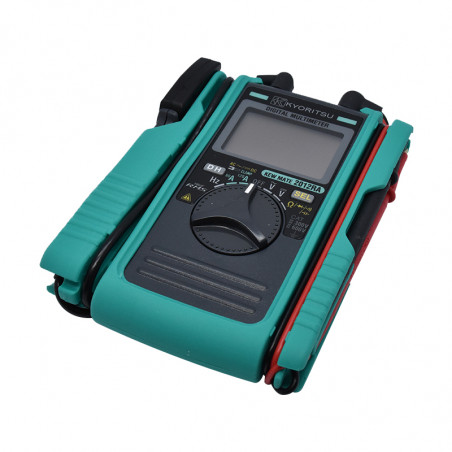

KEWMATE2012RA Multimeter with 120A AC/DC TRMS clamps is an innovative multimeter with a new generation of open current clamps that enables the measurement of direct and alternating currents up to 120A and with a very high resolution of 0.01A. The clamp sensor in the form of open fixed clamps is connected to the meter with a flexible cable, which allows for extraordinary convenience of measurements in distribution boxes, with densely packed bundles and in other situations. The maximum diameter of the measured cable is 12 mm. The device has typical measurement functions, it also enables frequency measurement during current measurement. Counting on the LCD up to 6039 max (9999 for Hz, 4000 for Cx) allows to obtain high resolution of measurements, while the fast analog bargraph enables to track fast changes of measured values.

  • LCD display with high count up to 6000 max with analog bargraph
  • Measurement of the true effective value (True RMS) allows for reliable measurements of distorted waveforms of alternating currents and voltages, which are often found in industrial installations
  • Unique solution ensuring AC and DC current measurements with miniature open clamps
  • Maximum measurement resolution - 0.01A AC / DC
  • Open-ended clamps allow for convenient measurement even in the most difficult conditions
  • Measurements with automatic range changes (except current measurements)
  • Sleep function for battery saving
  • HOLD - “freezing” the current measurement on the LCD
  • Protective cover for clamps and test leads
Мање
Опширније

Пошаљите упит

Да ли вас занима овај производ? Да ли су вам потребне додатне информације или појединачне цене?

Контактирајте нас
Питајте производ close
Хвала вам што сте послали поруку. Одговорићемо у најкраћем могућем року.
Питајте производ close
Прегледајте
пошаљите упит

Додај у листу жеља

морате бити пријављени

KEWMATE2012RA Multimeter with 120A AC/DC TRMS clamps is an innovative multimeter with a new generation of open current clamps that enables the measurement of direct and alternating currents up to 120A and with a very high resolution of 0.01A. The clamp sensor in the form of open fixed clamps is connected to the meter with a flexible cable, which allows for extraordinary convenience of measurements in distribution boxes, with densely packed bundles and in other situations. The maximum diameter of the measured cable is 12 mm. The device has typical measurement functions, it also enables frequency measurement during current measurement. Counting on the LCD up to 6039 max (9999 for Hz, 4000 for Cx) allows to obtain high resolution of measurements, while the fast analog bargraph enables to track fast changes of measured values.

  • LCD display with high count up to 6000 max with analog bargraph
  • Measurement of the true effective value (True RMS) allows for reliable measurements of distorted waveforms of alternating currents and voltages, which are often found in industrial installations
  • Unique solution ensuring AC and DC current measurements with miniature open clamps
  • Maximum measurement resolution - 0.01A AC / DC
  • Open-ended clamps allow for convenient measurement even in the most difficult conditions
  • Measurements with automatic range changes (except current measurements)
  • Sleep function for battery saving
  • HOLD - “freezing” the current measurement on the LCD
  • Protective cover for clamps and test leads
