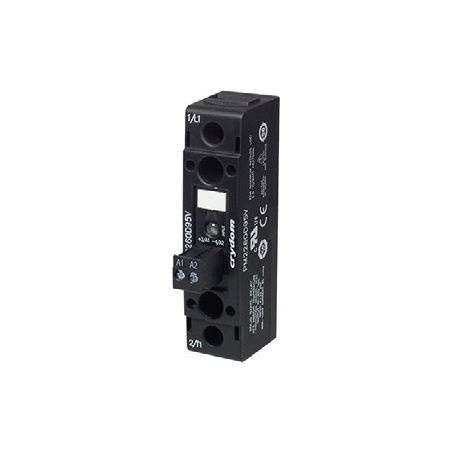

![СЕРИЈА PM22 СЕРИЈА PM22](https://www.dacpol.eu/42060-large_default/54191-seria-pm22.jpg)
![СЕРИЈА PM22 СЕРИЈА PM22](https://www.dacpol.eu/42060-large_default/54191-seria-pm22.jpg)
Морате бити пријављени да
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Фотографије су само у информативне сврхе. Погледајте спецификацију производа
please use latin characters
Control Voltage | 25A | 50A | 95A |
90-280 VAC/VDC | PM2260A25V | PM2260A50V | PM2260A95V |
4-32 VDC | PM2260D25V | PM2260D50V | PM2260D95V |
Description | 25A | 50A | 95A |
Operating Voltage (47-440Hz) [Vrms] | 48-600 | 48-600 | 48-600 |
Transient Overvoltage [Vpk] | 1200 | 1200 | 1200 |
Maximum Leakage Current at Rated Voltage [mArms] | 1 | 1 | 1 |
Minimum dV/dt in the Off-State at Maximum Rated Voltage [V/usec] | 500 | 500 | 500 |
Load Current, General Application UL508/LC and IEC62314 at 40 degrees Celsius [Arms] | 25 | 50 | 95 |
Load Current, Motor Start UL508 FLA/LC and IEC62314 at 40 degrees Celsius [Arms] | 8.5/4.8 | 14/7.6 | 26/14 |
Minimum Load Current [mArms] | 100 | 100 | 100 |
Maximum Amplitude of Single Current Pulse (50/60Hz) [Apk] | 286/300 | 716/750 | 1290/1350 |
Maximum Voltage Drop during Operation at Rated Current [Vrms] | 1.35 | 1.35 | 1.30 |
Thermal Resistance Junction-Case (Rjc) [degrees Celsius/W] | 0.49 | 0.27 | 0.2 |
Maximum I2t for Trip (½ cycle) (50/60Hz) [A2 sec] | 409/375 | 2563/2343 | 8320/7593 |
Minimum Heat Dissipation Capability at Rated Current at 40 degrees Celsius [degrees Celsius/W] | 2 | 0.7 | 0.25 |
Minimum Power Factor (at Maximum Load) | 0.5 | 0.5 | 0.5 |
Motor Parameters UL 508/IEC62314 [HP (kW)]: 120 VAC | 0.5 (0.37) | 1 (0.74) | 2 (1.5) |
Motor Parameters UL 508/IEC62314 [HP (kW)]: 240 VAC | 1.5 (1.1) | 3 (2.2) | 5 (3.73) |
Motor Parameters UL 508/IEC62314 [HP (kW)]: 480 VAC | 3 (2.24) | 5 (3.7) | 10 (7.4) |
Description | PM2260DxxV | PM2260AxxV |
Control Voltage Range | 4-32 VDC | 90-280 VAC/VDC |
Maximum Reverse Voltage | -32 VDC | - |
Minimum Turn-On Voltage | 4 VDC | 90 VAC/VDC |
Required Turn-Off Voltage | 1 VDC | 5 VAC/VDC |
Minimum Input Current (for turn-on) | 7 mA | 6 mA |
Maximum Input Current | 15 mA | 10 mA |
Rated Input Impedance | Current-regulated | Current-limited |
Maximum Turn-On Time [msec] | ½ cycle | 20 |
Maximum Turn-Off Time [msec] | ½ cycle | 30 |
Description | Parameters |
---|---|
Dielectric Strength, Input to Output (50/60Hz) | 4000 Vrms |
Dielectric Strength, Input/Output to Base Plate (50/60Hz) | 4000 Vrms |
Minimum Insulation Resistance (at 500V DC) | 109 Ohms |
Maximum Capacitance, Input/Output | 8pF |
Ambient Temperature Range for Operation | -40 to 80 degrees Celsius |
Ambient Temperature Range for Storage | -40 to 100 degrees Celsius |
Rated Short Circuit Current | 100kA |
Weight (typical) | 65 |
Housing Material | UL94 V-0 |
Base Plate Material | Aluminum |
Internal Finish | Nickel Plated |
Input Terminal Screw Torque (Nm) | 0.5 |
Load Terminal Screw Torque Range (Nm) | 2-2.2 |
Torque Range for Mounting SSR (Nm) | 2.2-2.8 |
Humidity for IEC 60068-2-78 | 95% non-condensing |
Status Indicator LED | Green |
Series |
---|
PM22 |
60: 48-600 VAC |
Control Voltage |
A: 90-280 VAC/VDCD: 4-32 VDC |
Rated Load Current |
25: 25 Amperes50: 50 Amperes95: 95 Amperes |
Terminal Configuration |
V: Contactor Configuration |
Switching Type |
Blank: Zero Voltage SwitchingR: Instantaneous Switching (Certified motor parameters) |
Input Connection |
Blank: Screw Terminal |
J: Spring Terminal |
Thermal Pad |
Blank: NoneH: Included |
Required for valid part number - None
Contactor Part Numbers: CP201 CP202 | Accessory Part Number: HK8 |
---|---|
Plug-in input contacts, 2 positions, with either screw terminals (CP201) or spring terminals (CP202). Compatible with NOVA22 SSR contactor configuration. | Bag with two SSR mounting screws 8-32 x 3/8, hexagonal head, compatible with PM22 series SSR panel mount. Used for mounting SSR to any of our heat sinks. |
Radiator Part Number: HS259DR | Thermal pad Part Number: HSP-7 |
Mountable on DIN rail heat sink with thermal resistance of 2.5 degrees Celsius/W. The material of the heat sink is black anodized aluminum. Suitable for single panel-mounted PM22 series SSR. | Non-adhesive thermal pad for SSR housing in a semi-circular shape. Compatible with panel-mounted PM22 series SSR. |
