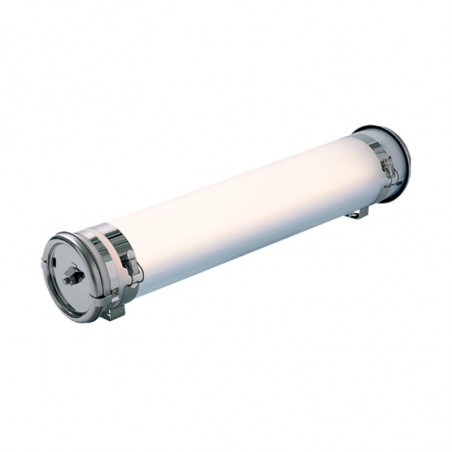

Јоуле 133

JOULE 133

Technology LED
Maks. temp.: 70^oC
Light ouput: 2475 to 4125 lm
Control Gear: "Industry" rated

• High efficiency LED modules (160 lm/W)
• Special high-temperature LED modules
• 50 000 h L80/B50 at max. operating temperature
• Replaceable LED modules
• CRI > 80

• Light mixing chamber
• Satin Diffuser to minimise glare

• Special high-temperature electronic driver (non-dimmable)
• Resistance to voltage surge: 320 V AC, 48 h
• Supports voltage peaks > 4 kV

• 220-240 V 50/60 Hz

Operating temperature

• -20^oC do +70^oC

Wykonanie

• Housing Polycarbonate protected by a coextruded layer of PMMA
• End caps, fixing straps… Stainless Steel 304 L
• Gaskets EPDM

Standards

• Imperviousness IP66, IP68 and IP69 K
• Shock resistance IK10
• Fire resistance 650 °C
• Vibration resistance Meets the standard EN 60598-1 (tested according to CEI 60068-2-6)

Finishings

• End caps and fixing straps in Stainless Steel 316 L

• Housing in Polycarbonate – PO

• 1 cable gland–Ø cable: 5 to 12 mm 113
• 1 cable gland–Ø cable: 7 to 14 mm 116
• 2 cable glands–Ø cable: 5 to 12 mm 213
• 2 cable glands–Ø cable: 7 to 14 mm 216

Cable entries (nickel-coated brass)

• 1 cable gland–Ø cable: 5 to 14 mm 113 LN
• 2 cable glands–Ø cable: 5 to 54 mm 213 LN
• Disconnectable output cords with Plug (length 0,80 m)
• High-temperature output cord fitted with a 3 pole WIELAND plug

Accessories

• Protective roof
• Fixings for columns
• Spacer kit (5 or 20 cm) for fire safety standards
• 4-outlet IP68 junction box
