Произвођач: Eaton / CEAG

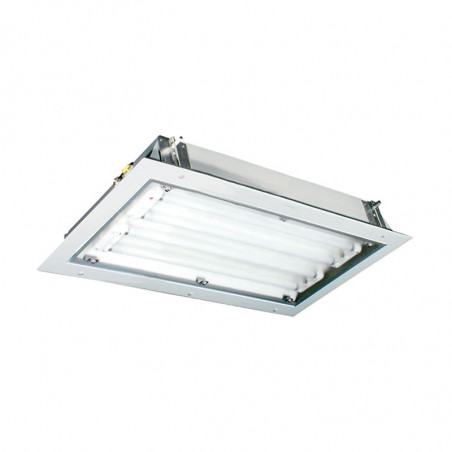

Еллб 20 серија

Light fittings eLLB 20


eLLB 20... 18-58 W

Oprawy świetlówkowe z serii nLLK 08 spełniają zasadnicze wymagania Dyrektywy ATEX (94/9/ WE) i są dopuszczone do pracy w strefie 2 oraz 21 i 22 zagrożenia wybuchem. Wyposażone są w stateczniki elektroniczne (EVG), które umożliwiają bezpieczną i oszczędną pracę dwupinowych świetlówek G13, które pod koniec okresu swojej żywotności są monitorowane i bezpiecznie wyłączane. oprawy dostępne są w dwóch wariantach: o mocy 18 lub 36 W. Wyposażone są w system baterii – dla trybu z konserwacją lub bez konserwacji. Oprawy te charakteryzują się 1,5- lub 3-godzinnym czasem pracy w trybie awaryjnym oraz zieloną diodą LED sygnalizującą ładowanie baterii. Standardowe jednostronne okablowanie przelotowe oraz przestronny przedział zaciskowy, zapewnia szybką i wygodną instalację. Dzięki dwustronnej blokadzie z 10 lub 20 zatrzaskami, przy montażu oprawy nie trzeba zwracać uwagi na to, która strona jest właściwa. Przyjazny w eksploatacji system baterii zamontowany jest za klapą reflektora.



eLLB 20018/18 | eLLB 20036/36 | eLLB 20058/58 eLLB 20418 | eLLB 20436

Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20
eLLB 20436 eLLB 20418 eLLB 20058/58 eLLB 20036/36 eLLB 20018/18

Marking accd. to 94/9/EC Ex II 2G Ex de mb ib IIC T4 Gb
Ex II 2D Ex tb IIIC T80 °C Db IP66
Certyfikat badania typu WE BVS 09 ATEX E 044 X
IECEx Certificate of Conformity IECEx BKI 08.0017
Marking accd. to IECEx Ex edmb [ib] IIC T4 Gb
Ex t IIIC IP66 T80 °C Db
Permissible ambient temperature -25 °C do +50 °C
Frequency 50-60 Hz
Power factor cos φ ≥ 0,95
Circuit EVG lub EVG/CG-S
Connecting terminals L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal, through-wiring twin-ende
Protection class I
Lamp cap G13 wg IEC 60081
Degree of protection accd. to EN 60529 IP66
Cable glands / gland plates / enclosure drilling Ex-e cable glands Ex-e M25 x 1,5 (plastic)) na kable o średnicy 0 8 - 17 mm,
Option: M20 x 1,5 metal thread
Enclosure material painted steel sheet, white optional polished stainless steel
Enclosure colour white RAL 9010
Protective cover / protective bowl single-safety glass pane of 6 mm thick
Permissible ceiling tickness for fixing accessories min. 25 mm do max. 90 mm

  1 eLLB 20018/18 1 eLLB 20418
Rated voltage 110-254 V AC / 110-250 V DC 110-254 V AC / 110-250 V DC
Rated voltage CG-S 220-254 V AC / 195-250 V DC 220-254 V AC / 195-250 V DC
Rated current 0,18 A / 0,19 A (CG-S wariant) 0,36 A / 0,37 A (CG-S wariant)
Lamp/illuminant 2 x T26 / 18 W (T8) 4 x T26 / 18 W (T8)
Rated luminous flux1) 2700 lm 5400lm
Dimensions (L x W x H) 862 x 340 x 120 mm 862 x 490 x 120 mm
Weight ok. 15 kg / ok. 15,5 kg (CG-S wariant) ok. 25 kg / ok. 25,5 kg (CG-S wariant)

  eLLB 20036/36 eLLB 20436
Rated voltage 110-254 V AC / 110-250 V DC 110-254 V AC / 110-250 V DC
Rated voltage CG-S 220-254 V AC / 195-250 V DC 220-254 V AC / 195-250 V DC
Rated current 0,34 A / 0,35 A (CG-S wariant) 0,68 A / 0,69 A (CG-S wariant)
Lamp/illuminant 2 x T26 / 36 W (T8) 4 x T26 / 36 W (T8)
Rated luminous flux1) 6700lm 13400lm
Dimensions (L x W x H) 1460 x 340 x 120 mm 1460 x 490 x 120 mm
Weight ok. 22 kg / ok. 22,5 kg (CG-S wariant) ok. 34 kg / ok. 34,5 kg (CG-S wariant)

  eLLB 20058/58
Rated voltage 220-254 V AC / 195-250 V DC
Rated voltage CG-S 220-254 V AC / 195-250 V DC
Rated current 0,53 A / 0,54 A (CG-S wariant)
Lamp/illuminant 2 x T26 / 58 W (T8)
Rated luminous flux 10400lm
Dimensions (L x W x H) 1760 x 340 x 120 mm
Weight około 26 kg / około 26,5 kg (CG-S wariant)

1)Depending on the housing

eLLB 20018/18 | eLLB 20036/36 | eLLB 20058/58 eLLB 20418 | eLLB 20436

Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20
eLLB 20436 eLLB 20418 eLLB 20058/58 eLLB 20036/36 eLLB 20018/18

Details of the order

Product Groups Product Subgroup Description Part No.
Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2M Stainless Steel 316 12190218111

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2, Sheet Metal, painted 12190218001

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2 Stainless Steel 316 12190218011

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2M Sheet Metal, painted 12190218101

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2M Stainless Steel 316 12190236111

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2, Sheet Metal, painted 12190236001

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2 Stainless Steel 316 12190236011

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2M Sheet Metal, painted 12190236101

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2M Stainless Steel 316 12190258111

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2 Stainless Steel 316 12190258011

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2, Sheet Metal, painted 12190258001

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2M Sheet Metal, painted 12190258101

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2M Stainless Steel 316 12190418111

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2M Sheet Metal, painted 12190418101

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2, Stainless Steel 316 12190418011

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2, Sheet Metal, painted 12190418001

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2M Stainless Steel 316 12190436111

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2M Sheet Metal, painted 12190436101

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2, Stainless Steel 316 12190436011

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2, Sheet Metal, painted 12190436001

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2M Stainless Steel 316 12190218723

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2, Sheet Metal, painted 12190218703

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2M Stainless Steel 316 12190218733

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2M Sheet Metal, painted 12190218713

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2M Stainless Steel 316 12190236723

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2, Sheet Metal, painted 12190236703

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2 Stainless Steel 316 12190236733

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2M Sheet Metal, painted 12190236713

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2M Stainless Steel 316 12190258723

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2, Sheet Metal, painted 12190258703

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2 Stainless Steel 316 12190258733

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20... Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2M Sheet Metal, painted 12190258713

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2M Stainless Steel 316 12190418723

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2M Sheet Metal, painted 12190418713

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2, Stainless Steel 316 12190418733

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2, Sheet Metal, painted 12190418703

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2M, Stainless Steel 316 12190436723

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2M, Sheet Metal, painted 12190436713

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2, Stainless Steel 316 12190436733

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2, Sheet Metal, painted 12190436703

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2, Stainless Steel 316 12190218012

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2, Sheet Metal, painted 12190218002

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2M, Stainless Steel 316 12190218112

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2M, Sheet Metal, painted 12190218102

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2, Stainless Steel 316 12190236012

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2, Sheet Metal, painted 12190236002

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2M, Stainless Steel 316 12190236112

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2M, Sheet Metal, painted 12190236102

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2, Stainless Steel 316 12190418012

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2, Sheet Metal, painted 12190418002

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2M, Stainless Steel 316 12190418112

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2M, Sheet Metal, painted 12190418102

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2, Stainless Steel 316 12190436012

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2, Sheet Metal, painted 12190436002

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2M, Stainless Steel 316 12190436112

Ex-recessed ceiling light fittings Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2M, Sheet Metal, painted 12190436102


eLLB 20018/18 | eLLB 20036/36 | eLLB 20058/58 eLLB 20418 | eLLB 20436

Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20 Oprawa liniowa eLLB 20
eLLB 20436 eLLB 20418 eLLB 20058/58 eLLB 20036/36 eLLB 20018/18

Accessories

Fixing materials eLLB 20...
Type/code Corrosion protection Number of binding no product
eyebolt A2 plating 2 22 480 002 000
Hexagon screw S4 stainless steel 2 22 480 054 000
Bracket for ceiling mount D92 with the supplied screws and washers stainless steel 2 22 480 092 000

Fixing materials eLLB 20...
Type/code Corrosion protection for pipes DIN Outer Ø D (mm) Qty per light fitting Order No
Pipe clamp
R12 hot galvanizde 1 1/4"v 38-42 2 22 480 462 000
R14 CrNi 1 1/4" 38-42 2 22 480 464 000
R22 hot galvanizde 1 1/2" 47-51 2 22 480 472 000
R24 CrNi 1 1/2" 47-51 2 22 480 474 000
R32 hot galvanizde 2" 56-60 2 22 480 482 000
R34 CrNi 2" 56-60 2 22 480 484 000
Luminaire wall suspension 30° z incl. screws and washer not dip galvanized     2 22 480 000 122

Dimensions

Polar curve

Polar curve
eLLB 20018/18 / eLLB 20036/36 / eLLB 20058/58		 Polar curve
eLLB 20418 / eLLB 20436
