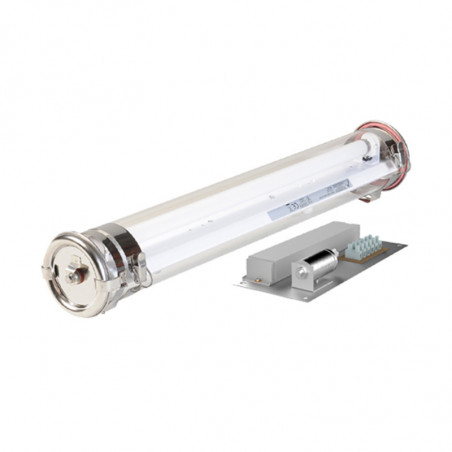

Паули 100 ХТ 100
  • Паули 100 ХТ 100

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: Sammode

Паули 100 ХТ 100

PAULI 100 HT 100

Maks. temp. 100oC
Technology T8
Power: 1x36W and 1x58W
Housing: Brorosilicate glass


Key features
Suitable for very high temperatures
Impervious luminaire
Suitable for industrial environments
Resistant to aggressive chemical environments
Durable and maintainable luminaire

Technical data
Light source
  • 1 x T8 lamp, not included
Optic
  • White powder coated gear tray serving as reflector for diffuse general lighting
  • Extensive reflector (wide beam) in anodised aluminum sheet
  • Intensive reflector (narrow beam) in anodised aluminium sheet
Control Gear
  • Ferromagnetic Control Gear with very low losses (EEI B1)
  • Separate gear tray included in delivery
Power supply
  • 230V 50 Hz
Operating temperature
  • -20oC do +100oC
Connection
  • Cable gland in black polyamid for Ø cable 5–12 mm (3 × 2,5 mm²)
  • Separate gear tray (6 × 2,5 mm²)
Fixing
  • 2 reinforced Stainless Steel fixing straps
Method of Construction
  • Housing in one piece with high mechanical and chemical resistance
  • Long-lasting imperviousness by axial screw fitting
Materials
  • Housing Borosilicate glass
  • End caps, fixing straps… Stainless Steel 304 L
  • Gaskets Silicone
Dopuszczenia
  • Szczelność – IP 66, IP 68, IP 69K
  • Odporność mechaniczna – IK 07
  • Wytrzymałość ogniowa – niepalne
  • Odporność na wstrząsy i wibracje – Zgodnie z normą EN 60598-1

Options

Finishings

  • End caps and fixing straps in Stainless Steel 316 L
Fixings
  • Reinforced fixing straps with HSHC screw BRV
  • Shock-resistant fixing straps with HSHC screw BAC
Cable entries (black polyamide)
  • 1 cable gland–Ø cable: 7 to 14 mm 116
  • Cable entries (nickel-coated brass)
  • 1 cable gland–Ø cable: 5 to 14 mm 113 LN
Disconnectable output cords with Plug (length 0,80 m)
  • 1 cable gland–Ø cable: 5 to 14 mm 113 LN

High-temperature output cord fitted with a 3 pole WIELAND plug

Accessories

  • Protective roof
  • Fixings for columns
  • 4-outlet IP68 junction box


Power Designation Part. No Optic L (mm)
Versions without reflector
1 X 36 W PAU100 HT100 136CS G13 PY 113 BRS 3513 0021 Oprawa PAULI 100 HT 100 1307
1 x 58 W PAU100 HT100 158CS G13 PY 113 BRS 3513 0031 1607
Versions with extensive reflector
1 X 36 W PAU100 HT100 136CS G13 PY 113 RE BRS 3513 5011 Oprawa PAULI 100 HT 100 1307
1 X 58 W PAU100 HT100 158CS G13 PY 113 RE BRS 3513 5005 1607
Versions with intensive reflector
1 X 36 W PAU100 HT100 136CS G13 PY 113 RI BRS 3513 5012 Oprawa PAULI 100 HT 100 1307
1 X 58 W PAU100 HT100 158CS G13 PY 113 RI BRS 3513 5001 1607


Dimensions

Oprawa PAULI 100 HT 100
