Произвођач: Sammode

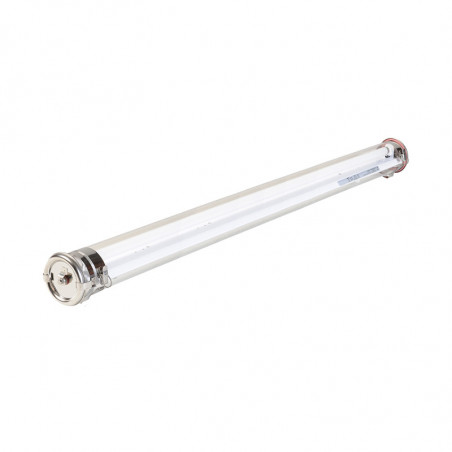

Паули 100 ХТ 80

PAULI 100 HT 80

Maks. temp.: 80oC
Technology T8
Moc: 1x36W and 1x58W
Housing Borosilicate glass


Key features
Suitable for very high temperatures
Impervious luminaire
Suitable for industrial environments
Resistant to aggressive chemical environments
Durable and maintainable luminaire

Technical data
Light source
  • 1 x T8 lamp, not included
Optic
  • White powder coated gear tray serving as reflector for diffuse general lighting
  • Extensive reflector (wide beam) in anodised aluminum sheet
  • Intensive reflector (narrow beam) in anodised aluminium sheet
Control Gear
  • Ferromagnetic Control Gear with very low losses (EEI B1)
Power supply
  • 230V 50 Hz
Operating temperature
  • -20oC do +80oC
Connection
  • Cable gland in black polyamid for Ø cable 5–12 mm (3 × 2,5 mm²)
Fixing
  • 2 reinforced Stainless Steel fixing straps

Method of Construction

  • Housing in one piece with high mechanical and chemical resistance
  • Long-lasting imperviousness by axial screw fitting

Materials

  • Housing Borosilicate glass
  • End caps, fixing straps… Stainless Steel 304 L
  • Gaskets Silicone

Standards

  • Imperviousness IP66, IP68 and IP69 K
  • Shock resistance IK07
  • Fire resistance Non-flammable
  • Vibration resistance Meets the standard EN 60598-1 (tested according to CEI 60068-2-6)

Options

Finishings

  • End caps and fixing straps in Stainless Steel 316 L
Fixings
  • Reinforced fixing straps with HSHC screw BRV
    Shock-resistant fixing straps with HSHC screw BAC
Cable entries (black polyamide)
  • 1 cable gland–Ø cable: 7 to 14 mm 116
  • 2 cable glands–Ø cable: 5 to 12 mm 213
  • 2 cable glands–Ø cable: 7 to 14 mm 216
Cable entries (nickel-coated brass)
  • 1 cable gland–Ø cable: 5 to 14 mm 113 LN
  • 2 cable glands–Ø cable: 5 to 54 mm 213 LN
Disconnectable output cords with Plug (length 0,80 m)
  • High-temperature output cord fitted with a 3 pole WIELAND plug CHT3
Accessories
  • Protective roof
  • Fixings for columns
  • 4-outlet IP68 junction box


Power Designation Part No. Optic L (mm)
Versions without reflector
1 X 36 W PAU100 HT80 136C G13 PY 113 BRS 3510 0021 1307
1 x 58 W PAU100 HT80 158C G13 PY 113 BRS 3510 0031 1607
Versions with extensive reflector
1 X 36 W PAU100 HT80 136C G13 PY 113 RE BRS 3510 0161 1307
1 X 58 W PAU100 HT80 158C G13 PY 113 RE BRS 3510 5015 1607
Versions with intensive reflector
1 X 36 W PAU100 HT80 136C G13 PY 113 RI BRS 3510 5008 1307
1 X 58 W PAU100 HT80 158C G13 PY 113 RI BRS 3510 5004 1607


Dimensions

Oprawa PAULI 100 HT 80
