Technical data
Electrical preferences:
- max. voltage: 3,3kV AC,
- test voltage: 3PV4: > 10kV 50Hz 1min, 3PV5, 3PV6: > 13kV 50Hz 1min,
- current: see tables,
- contact resistance: < 1m Ω,
- IP: IP 67 - IK10,
s - designed according to: N.F.C. 63300, CEI 309-1.
|
![]() |
||||||||||||||||||||||||||||||||||||
|
![]() |
||||||||||||||||||||||||||||||||||||
|
![]() |
||||||||||||||||||||||||||||||||||||
|
![]() |
Contacts | Cable section[mm2] | Female insert IP2 | Male insert | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 250 | 50 | 10 | 330 340 N | 330 397 N |
2P+E+2p | 250 | 70 | 10 | 330 342 N | 330 399 N |
3P+E+2p | 250 | 50 | 10 | 330 344 N | 330 405 N |
3P+E+2p | 250 | 70 | 10 | 330 156 N | 330 407 N |
4P+E+2p | 200 | 35 | 6 | 330 346 N | 330 413 N |
4P+E+2p | 200 | 50 | 6 | 330 158 N | 330 415 N |
4P+E+2p | 200 | 70 | 6 | 331 326 N | 331 327 N |
Contacts | Cable section [mm2] |
Cable external diameter [mm] |
Female insert | Male insert IP2 | ||
---|---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |||
2P+E+2p | 250 | 50 | 10 | 32-42 | 330 339 N | 330 396 N |
2P+E+2p | 250 | 70 | 10 | 43-54 | 330 341 N | 330 398 N |
3P+E+2p | 250 | 50 | 10 | 32-42 | 330 343 N | 330 404 N |
3P+E+2p | 250 | 70 | 10 | 43-54 | 330 155 N | 330 406 N |
4P+E+2p | 200 | 35 | 6 | 32-42 | 330 345 N | 330 421 N |
4P+E+2p | 200 | 5 | 6 | 32-42 | 330 157 N | 330 414 N |
4P+E+2p | 200 | 70 | 6 | 43-54 | 331 328 N | 331 329 N |
Contacts | Cable section[mm2] | Cable external diameter [mm] |
Marking | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 250 | 50 | 10 | 32-42 | 330 400N |
2P+E+2p | 250 | 50 | 10 | 43-54 | 330 402 N |
3P+E+2p | 250 | 50 | 10 | 32-42 | 330 408N |
3P+E+2p | 250 | 70 | 10 | 43-54 | 330 410 N |
4P+E+2p | 200 | 35 | 6 | 32-42 | 330 416 N |
4P+E+2p | 200 | 50 | 6 | 32-42 | 330 224 N |
4P+E+2p | 200 | 70 | 6 | 43-54 | 331 330 N |
Contacts | Cable section [mm2] |
Marking | ||
---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |
2P+E+2p | 250 | 50 | 10 | 330 401 N |
2P+E+2p | 250 | 70 | 10 | 330 403 N |
3P+E+2p | 250 | 50 | 10 | 330 409 N |
3P+E+2p | 250 | 70 | 10 | 330 411 N |
4P+E+2p | 200 | 35 | 6 | 330 417 N |
4P+E+2p | 200 | 50 | 6 | 330 223 N |
4P+E+2p | 200 | 70 | 6 | 331 331 N |
Contacts | Cable section[mm2] | Female insert IP2 | Male insert | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 400 | 95 | 10 | 330 348 N | 330 419 N |
2P+E+2p | 400 | 120 | 10 | 330 350 N | 330 421 N |
2P+E+2p | 400 | 150 | 10 | 331 262 N | 331 265 N |
3P+E+2p | 400 | 95 | 10 | 330 352 N | 330 427 N |
3P+E+2p | 400 | 120 | 10 | 330 354 N | 330 429 N |
3P+E+2p | 400 | 150 | 10 | 331 263 N | 331 266 N |
4P+E+2p | 320 | 95 | 6 | 330 356 N | 330 435 N |
4P+E+2p | 320 | 120 | 6 | 330 160 N | 330 437 N |
4P+E+2p | 320 | 150 | 6 | 331 264 N | 331 267 N |
Contacts | Cable section[mm2] | Cable external diameter [mm] |
Male insert | Female insert IP2 | ||
---|---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |||
2P+E+2p | 400 | 95 | 10 | 45-55 | 330 347 N | 330 418 N |
2P+E+2p | 400 | 120 | 10 | 45-55 | 330 349 N | 330 420 N |
2P+E+2p | 400 | 150 | 10 | 52-62 | 331 268 N | 331 271 N |
3P+E+2p | 400 | 95 | 10 | 45-55 | 330 351 N | 330 426 N |
3P+E+2p | 400 | 120 | 10 | 52-62 | 330 353 N | 330 428 N |
3P+E+2p | 400 | 150 | 10 | 52-62 | 331 269 N | 331 272 N |
3P+E+2p | 400 | 150 | 10 | 63-76 | 331 429 N | 331 428 N |
4P+E+2p | 320 | 95 | 6 | 52-62 | 330 355 N | 330 434 N |
4P+E+2p | 320 | 120 | 6 | 52-62 | 330 159 N | 330 436 N |
4P+E+2p | 320 | 150 | 6 | 52-62 | 331 270 N | 331 273 N |
4P+E+2p | 320 | 150 | 6 | 63-76 | 331 431 N | 331 430 N |
Contacts | Cable section[mm2] | Cable external diameter [mm] |
Marking | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 400 | 95 | 10 | 45-55 | 330 422 N |
2P+E+2p | 400 | 120 | 10 | 45-55 | 330 424 N |
2P+E+2p | 400 | 150 | 10 | 52-62 | 331 274 N |
3P+E+2p | 400 | 95 | 10 | 45-55 | 330 430 N |
3P+E+2p | 400 | 120 | 10 | 52-62 | 330 432 N |
3P+E+2p | 400 | 150 | 10 | 52-52 | 331 275 N |
4P+E+2p | 320 | 95 | 6 | 52-62 | 330 438 N |
4P+E+2p | 320 | 120 | 6 | 52-62 | 330 440 N |
4P+E+2p | 320 | 150 | 6 | 52-62 | 331 276 N |
Contacts | Cable section [mm2] |
Marking | ||
---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |
2P+E+2p | 400 | 95 | 10 | 330 423 N |
2P+E+2p | 400 | 120 | 10 | 330 425 N |
2P+E+2p | 400 | 150 | 10 | 331 277N |
3P+E+2p | 400 | 95 | 10 | 330 431 N |
3P+E+2p | 400 | 120 | 10 | 330 433 N |
3P+E+2p | 400 | 150 | 10 | 331 278 N |
4P+E+2p | 320 | 95 | 6 | 330 439 N |
4P+E+2p | 320 | 120 | 6 | 330 441 N |
4P+E+2p | 320 | 150 | 6 | 331 279 N |
Contacts | Cable section [mm2] |
Female insert IP2 | Male insert | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 800 | 240 | 6 | 330 358 | 330 443 |
2P+E+2p | 800 | 300 | 6 | 330 360 | 330 445 |
3P+E+2p | 800 | 240 | 6 | 330 362 | 330 451 |
3P+E+2p | 800 | 300 | 6 | 330 364 | 330 453 |
4P+E+2p | 640 | 185 | 6 | 330 366 | 330 459 |
4P+E+2p | 640 | 240 | 6 | 330 368 | 330 461 |
Contacts | Cable section [mm2] |
Cable external diameter [mm] |
Male insert | Female insert IP2 | ||
---|---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |||
2P+E+2p | 800 | 240 | 6 | 52-72 | 330 357 | 330 442 |
2P+E+2p | 800 | 300 | 6 | 75-90 | 330 359 | 330 444 |
3P+E+2p | 800 | 240 | 6 | 75-90 | 330 361 | 330 450 |
3P+E+2p | 800 | 300 | 6 | 85-100 | 330 363 | 330 452 |
4P+E+2p | 640 | 185 | 6 | 75-90 | 330 365 | 330 458 |
4P+E+2p | 640 | 240 | 6 | 85-100 | 330 367 | 330 460 |
Contacts | Cable section[mm2] | Cable external diameter [mm] |
Marking | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 800 | 240 | 6 | 52-72 | 330 446 |
2P+E+2p | 800 | 300 | 6 | 75-90 | 330 448 |
3P+E+2p | 800 | 240 | 6 | 75-90 | 330 454 |
3P+E+2p | 800 | 300 | 6 | 85-100 | 330 456 |
4P+E+2p | 640 | 185 | 6 | 75-90 | 330 462 |
4P+E+2p | 640 | 240 | 6 | 85-100 | 330 464 |
Contacts | Cable section [mm2] |
Marking | ||
---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |
2P+E+2p | 800 | 240 | 6 | 330 447 |
2P+E+2p | 800 | 300 | 6 | 330 449 |
3P+E+2p | 800 | 240 | 6 | 330 455 |
3P+E+2p | 800 | 300 | 6 | 330 457 |
4P+E+2p | 640 | 185 | 6 | 330 463 |
Panel socket |
PIN
|
![]() |
![]() |
Cable connector |
PIN
|
![]() |
![]() |
Да ли вас занима овај производ? Да ли су вам потребне додатне информације или појединачне цене?
морате бити пријављени
Technical data
Electrical preferences:
- max. voltage: 3,3kV AC,
- test voltage: 3PV4: > 10kV 50Hz 1min, 3PV5, 3PV6: > 13kV 50Hz 1min,
- current: see tables,
- contact resistance: < 1m Ω,
- IP: IP 67 - IK10,
s - designed according to: N.F.C. 63300, CEI 309-1.
|
![]() |
||||||||||||||||||||||||||||||||||||
|
![]() |
||||||||||||||||||||||||||||||||||||
|
![]() |
||||||||||||||||||||||||||||||||||||
|
![]() |
Contacts | Cable section[mm2] | Female insert IP2 | Male insert | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 250 | 50 | 10 | 330 340 N | 330 397 N |
2P+E+2p | 250 | 70 | 10 | 330 342 N | 330 399 N |
3P+E+2p | 250 | 50 | 10 | 330 344 N | 330 405 N |
3P+E+2p | 250 | 70 | 10 | 330 156 N | 330 407 N |
4P+E+2p | 200 | 35 | 6 | 330 346 N | 330 413 N |
4P+E+2p | 200 | 50 | 6 | 330 158 N | 330 415 N |
4P+E+2p | 200 | 70 | 6 | 331 326 N | 331 327 N |
Contacts | Cable section [mm2] |
Cable external diameter [mm] |
Female insert | Male insert IP2 | ||
---|---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |||
2P+E+2p | 250 | 50 | 10 | 32-42 | 330 339 N | 330 396 N |
2P+E+2p | 250 | 70 | 10 | 43-54 | 330 341 N | 330 398 N |
3P+E+2p | 250 | 50 | 10 | 32-42 | 330 343 N | 330 404 N |
3P+E+2p | 250 | 70 | 10 | 43-54 | 330 155 N | 330 406 N |
4P+E+2p | 200 | 35 | 6 | 32-42 | 330 345 N | 330 421 N |
4P+E+2p | 200 | 5 | 6 | 32-42 | 330 157 N | 330 414 N |
4P+E+2p | 200 | 70 | 6 | 43-54 | 331 328 N | 331 329 N |
Contacts | Cable section[mm2] | Cable external diameter [mm] |
Marking | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 250 | 50 | 10 | 32-42 | 330 400N |
2P+E+2p | 250 | 50 | 10 | 43-54 | 330 402 N |
3P+E+2p | 250 | 50 | 10 | 32-42 | 330 408N |
3P+E+2p | 250 | 70 | 10 | 43-54 | 330 410 N |
4P+E+2p | 200 | 35 | 6 | 32-42 | 330 416 N |
4P+E+2p | 200 | 50 | 6 | 32-42 | 330 224 N |
4P+E+2p | 200 | 70 | 6 | 43-54 | 331 330 N |
Contacts | Cable section [mm2] |
Marking | ||
---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |
2P+E+2p | 250 | 50 | 10 | 330 401 N |
2P+E+2p | 250 | 70 | 10 | 330 403 N |
3P+E+2p | 250 | 50 | 10 | 330 409 N |
3P+E+2p | 250 | 70 | 10 | 330 411 N |
4P+E+2p | 200 | 35 | 6 | 330 417 N |
4P+E+2p | 200 | 50 | 6 | 330 223 N |
4P+E+2p | 200 | 70 | 6 | 331 331 N |
Contacts | Cable section[mm2] | Female insert IP2 | Male insert | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 400 | 95 | 10 | 330 348 N | 330 419 N |
2P+E+2p | 400 | 120 | 10 | 330 350 N | 330 421 N |
2P+E+2p | 400 | 150 | 10 | 331 262 N | 331 265 N |
3P+E+2p | 400 | 95 | 10 | 330 352 N | 330 427 N |
3P+E+2p | 400 | 120 | 10 | 330 354 N | 330 429 N |
3P+E+2p | 400 | 150 | 10 | 331 263 N | 331 266 N |
4P+E+2p | 320 | 95 | 6 | 330 356 N | 330 435 N |
4P+E+2p | 320 | 120 | 6 | 330 160 N | 330 437 N |
4P+E+2p | 320 | 150 | 6 | 331 264 N | 331 267 N |
Contacts | Cable section[mm2] | Cable external diameter [mm] |
Male insert | Female insert IP2 | ||
---|---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |||
2P+E+2p | 400 | 95 | 10 | 45-55 | 330 347 N | 330 418 N |
2P+E+2p | 400 | 120 | 10 | 45-55 | 330 349 N | 330 420 N |
2P+E+2p | 400 | 150 | 10 | 52-62 | 331 268 N | 331 271 N |
3P+E+2p | 400 | 95 | 10 | 45-55 | 330 351 N | 330 426 N |
3P+E+2p | 400 | 120 | 10 | 52-62 | 330 353 N | 330 428 N |
3P+E+2p | 400 | 150 | 10 | 52-62 | 331 269 N | 331 272 N |
3P+E+2p | 400 | 150 | 10 | 63-76 | 331 429 N | 331 428 N |
4P+E+2p | 320 | 95 | 6 | 52-62 | 330 355 N | 330 434 N |
4P+E+2p | 320 | 120 | 6 | 52-62 | 330 159 N | 330 436 N |
4P+E+2p | 320 | 150 | 6 | 52-62 | 331 270 N | 331 273 N |
4P+E+2p | 320 | 150 | 6 | 63-76 | 331 431 N | 331 430 N |
Contacts | Cable section[mm2] | Cable external diameter [mm] |
Marking | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 400 | 95 | 10 | 45-55 | 330 422 N |
2P+E+2p | 400 | 120 | 10 | 45-55 | 330 424 N |
2P+E+2p | 400 | 150 | 10 | 52-62 | 331 274 N |
3P+E+2p | 400 | 95 | 10 | 45-55 | 330 430 N |
3P+E+2p | 400 | 120 | 10 | 52-62 | 330 432 N |
3P+E+2p | 400 | 150 | 10 | 52-52 | 331 275 N |
4P+E+2p | 320 | 95 | 6 | 52-62 | 330 438 N |
4P+E+2p | 320 | 120 | 6 | 52-62 | 330 440 N |
4P+E+2p | 320 | 150 | 6 | 52-62 | 331 276 N |
Contacts | Cable section [mm2] |
Marking | ||
---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |
2P+E+2p | 400 | 95 | 10 | 330 423 N |
2P+E+2p | 400 | 120 | 10 | 330 425 N |
2P+E+2p | 400 | 150 | 10 | 331 277N |
3P+E+2p | 400 | 95 | 10 | 330 431 N |
3P+E+2p | 400 | 120 | 10 | 330 433 N |
3P+E+2p | 400 | 150 | 10 | 331 278 N |
4P+E+2p | 320 | 95 | 6 | 330 439 N |
4P+E+2p | 320 | 120 | 6 | 330 441 N |
4P+E+2p | 320 | 150 | 6 | 331 279 N |
Contacts | Cable section [mm2] |
Female insert IP2 | Male insert | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 800 | 240 | 6 | 330 358 | 330 443 |
2P+E+2p | 800 | 300 | 6 | 330 360 | 330 445 |
3P+E+2p | 800 | 240 | 6 | 330 362 | 330 451 |
3P+E+2p | 800 | 300 | 6 | 330 364 | 330 453 |
4P+E+2p | 640 | 185 | 6 | 330 366 | 330 459 |
4P+E+2p | 640 | 240 | 6 | 330 368 | 330 461 |
Contacts | Cable section [mm2] |
Cable external diameter [mm] |
Male insert | Female insert IP2 | ||
---|---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |||
2P+E+2p | 800 | 240 | 6 | 52-72 | 330 357 | 330 442 |
2P+E+2p | 800 | 300 | 6 | 75-90 | 330 359 | 330 444 |
3P+E+2p | 800 | 240 | 6 | 75-90 | 330 361 | 330 450 |
3P+E+2p | 800 | 300 | 6 | 85-100 | 330 363 | 330 452 |
4P+E+2p | 640 | 185 | 6 | 75-90 | 330 365 | 330 458 |
4P+E+2p | 640 | 240 | 6 | 85-100 | 330 367 | 330 460 |
Contacts | Cable section[mm2] | Cable external diameter [mm] |
Marking | ||
---|---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | ||
2P+E+2p | 800 | 240 | 6 | 52-72 | 330 446 |
2P+E+2p | 800 | 300 | 6 | 75-90 | 330 448 |
3P+E+2p | 800 | 240 | 6 | 75-90 | 330 454 |
3P+E+2p | 800 | 300 | 6 | 85-100 | 330 456 |
4P+E+2p | 640 | 185 | 6 | 75-90 | 330 462 |
4P+E+2p | 640 | 240 | 6 | 85-100 | 330 464 |
Contacts | Cable section [mm2] |
Marking | ||
---|---|---|---|---|
Quantity | Prąd [A] |
Phase | Pilot | |
2P+E+2p | 800 | 240 | 6 | 330 447 |
2P+E+2p | 800 | 300 | 6 | 330 449 |
3P+E+2p | 800 | 240 | 6 | 330 455 |
3P+E+2p | 800 | 300 | 6 | 330 457 |
4P+E+2p | 640 | 185 | 6 | 330 463 |
Panel socket |
PIN
|
![]() |
![]() |

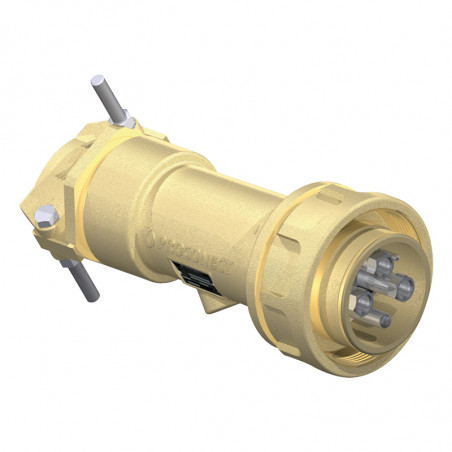

Cable connector |
PIN
|
![]() |
![]() |
Vaša zahvalnost na komentar ne može biti registrovana
Prijavite nepristojan komentar
Prija nepristojnog komentara registrovana
Vaša prijava nepristojnog komentara ne može biti registrovana
Napišite vaš komentar
Komentar poslat
Vaš komentar ne može biti registrovan
