Произвођач: Beck

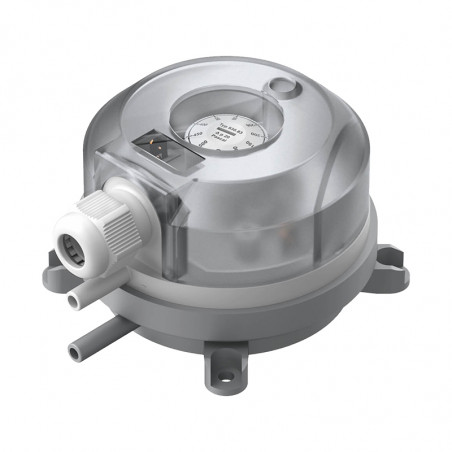

Диференцијални прекидач притиска 930..Ек Цлимаир®

Zone 1

With adjustable switching pressure for Ex zones 1 and 2

Applications
Adjustable differential pressure switch for monitoring overpressure, vacuum and differential pressure of air or other non-aggressive, combustible gases.

Possible fields of application include:

  • Monitoring air filters and ventilators
  • Monitoring industrial cooling-air circuits
  • Overheating protection for fan heaters
  • Monitoring flows in ventilation ducts
  • Controlling air and fire-protection flaps
  • Frost protection for heat exchangers
  • Ex zones 1 and 2 with ATEX type examination


Technical Specifications:

Medium air, (non-)combustible and non-aggressive gases
Temperature ranges:
Medium and ambient temperature -20˚C do +85 ˚C
Storage temperature -40˚C do +85 ˚C
Switching pressure ranges 20-200Pa (minimum)
  1,000-4,000 (maximum)
Switching differential 10 Pa minimum
  250 Pa maximum (depending on pressure range)
Switching pressure tolerance ±15% from setpoint
Max. working overpressure 10kPa
Pressure connections 2 plastic hose ports
Outer diameter 6mm
Materials:
Diaphragm silicone, tempered at 200° C, free of gas emissions (other materials on request).
Pressure switch housing PA 6.6
Cover PS
Weight 150/110 g (with/without cover)
Electrical rating 24 VDC/100 mA; 30 VDC/45 mA
Electrical connections AMP flat plug, 6.3 mm x 0.8 mm, in accordance with DIN 46244 or push-on screw terminals
Cable conduit PG-11 or M20 x1.5 with cable strain relief
Protection category IP 54 (with cover)
Mechanical working life over 106 switching operations

ATEX

EC type examination BVS 06 ATEX E 141X
Device category II 2G
Ignition protection type II B T4
CE conformity ATEX Directive 94/9/EG
  RoHS-Directive 2002/95/EG

Ex i-circuits

This pressure switch can be used in potentially explosive zones 1 and 2. In the safe area, an associated isolating means (separating barrier, switching amplifier) must be connected before. The entire isolating circuit must then be proved to keep inherent safety.
For this purpose, the power specifications (P, I, U) of the barrier must be lower and the characteristics (L, C) higher than those of the pressure switch and of the connection line (blue colour).

Characteristics for IIB:
Voltage- Ui 24VDC/30VDC
Current-Ii 100mA/45mA
Capacitance -Ci 0μF
Inductance -Li 0mH


Arrangement of contacts


Order matrix
Switching pressure
setting range
[Pa]		 Switching differential
set to		 Tolerance for max. and
min. switching pressure		 930,8   EX
from to
20 200 10 ±15%   0
30 400 15 ±15%   4
50 500 20 ±15%   3
200 1,000 100 ±15%   5
500 2,500 150 ±15%   6
1,000 4,000 250 ±15%   7
Electrical connection using 6.3 x 0.8 mm flat plug   1
Electrical connection using enclosed screw terminals   4
Fitting method using fastening eyes     2
Scale in mbar       1
Scale in Pasca       2
Scale in Pascal and inWC       3
IP 54 with cable conduit PG-11         1
IP 54 with cable conduit M20 x1.5         2
Packaging bulk packed, 45 pcs. per carton           1
bulk packed, folding boxes included           2
individually boxed           3
Accessories without accessories             1
with S-shaped metal mounting bracket 6402             2
with L-shaped metal mounting bracket 6401             3
with Climaset ® 6555             4
with Climaset ® 6550             5
with metal mounting bracket 6402 and Climaset ® 6555             6
with metal mounting bracket 6402 and Climaset ® 6550             7
with metal mounting bracket 6401 and Climaset ® 6555             8
with metal mounting bracket 6401 and Climaset ® 6550             9
with S-shaped snap-on mounting bracket 6482             A
with L-shaped snap-on mounting bracket 6481             B
with snap-on mounting bracket 6482 and Climaset ® 6555             C
with snap-on mounting bracket 6482 and Climaset ® 6550             D
with snap-on mounting bracket 6481 and Climaset ® 6555             E
with snap-on mounting bracket 6481 and Climaset® 6550             F

The switching pressure details are referred to a vertical installation position which is also recommended for pressure switches which have their connection ports below. For a horizontal installation position with AMP terminal lugs on top, the switching values are some 20 Pa higher.
The switching pressure can be set without any manometer by an adjusting knob provided with a reference scale. With the aid of a screwdriver, the switching difference can also be adjusted.


Accessories

Metal mounting bracket, S-shaped Article no. 6402
Metal mounting bracket, L-shaped Article no. 6401
Snap-on plastic bracket, S-shaped Article no. 6482
Snap-on plastic bracket, L-shaped Article no. 6481
Climaset ® consisting of 2 m PVC hose and two plastic tubes Article no. 6555
Climaset ® consisting of 2 m silicone hose and two plastic tubes Article no. 6557
Climaset ® consisting of 2 m PVC hose and two angled metal pipes Article no. 6550
Climaset ® consisting of 2 m silicone hose and two angled metal pipes Article no. 6556
Set consisting of three push-on screw terminals, bagged, Article no. 6415
Plastic tube for Climaset ® 6555 Article no. 6551
Angled metal pipe for Climaset ® 6550 Article no. 6552
Rubber grommet for Climaset ® 6550 Article no. 6553
Roll with 100 m PVC/silicone hose Article no. 6424/25
PG-11 cable conduit including sealing and counter screw Article no. 6358
M20x1.5 cable conduit including sealing and counter screw Article no. 6568
Cardbox for single packing for 930.8x Climair ® small/large Article no. 6428/29

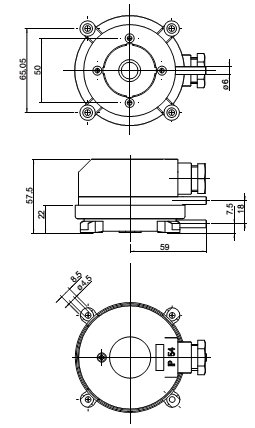

Drawings and dimensions

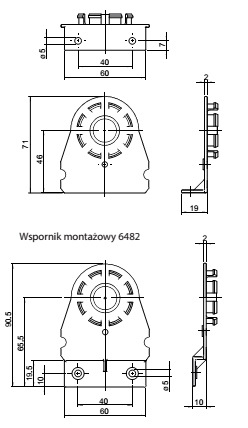

930.8x Climair Mounting bracket 6481

Climase 6550/6556 Climase 6555/6557 Mounting bracket 6401 Mounting bracket 6402
