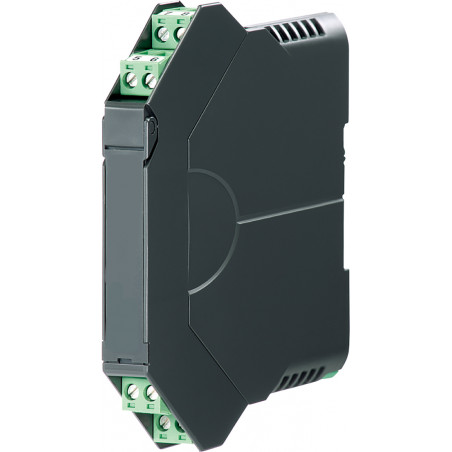

![М3СМС - претварач сигнала са отпорним уносом - 12 мм ширине М3СМС - претварач сигнала са отпорним уносом - 12 мм ширине](https://www.dacpol.eu/20862-large_default/m3sms-pretvarach-signala-sa-otpornim-unosom-12-mm-shirine.jpg)
![М3СМС - претварач сигнала са отпорним уносом - 12 мм ширине М3СМС - претварач сигнала са отпорним уносом - 12 мм ширине](https://www.dacpol.eu/20862-large_default/m3sms-pretvarach-signala-sa-otpornim-unosom-12-mm-shirine.jpg)
Морате бити пријављени да
Фотографије су само у информативне сврхе. Погледајте спецификацију производа
please use latin characters
Types of inputs: resistive 50Ω - 10kΩ
Types of outputs: current or voltage with various ranges
Possibility of making the range of inputs / outputs on special order.
Wire connection | Terminals M3 screw screws |
---|---|
Separation | Input / Output / Power td > |
Dielectric strength | DC power: 2000V AC AC power : 1500V AC | Ranges selection | When ordering |
Double output | None |
Power | AC / DC |
Working temperature | - 10 to + 55 ° C |
Mount | DIN Rail |
Dimensions | 12x106x110.5mm |
