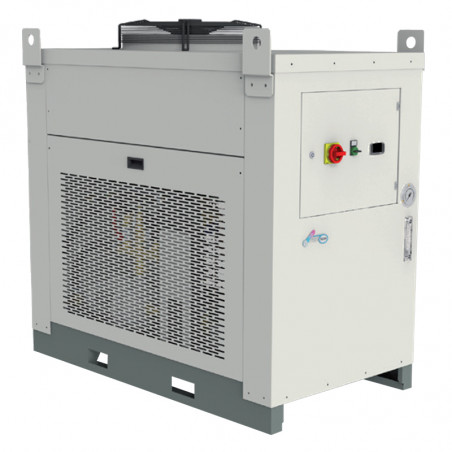

![Хладњаци воде серије 3 - ТЦВ Хладњаци воде серије 3 - ТЦВ](https://www.dacpol.eu/7214-large_default/khladaci-vode-serie-3-tcv.jpg)
![Хладњаци воде серије 3 - ТЦВ Хладњаци воде серије 3 - ТЦВ](https://www.dacpol.eu/7214-large_default/khladaci-vode-serie-3-tcv.jpg)
Морате бити пријављени да
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Фотографије су само у информативне сврхе. Погледајте спецификацију производа
please use latin characters
Cooling power range | 12300 - 20700 W |
Casing | Steel, covered with polyester, colour RAL 7035, casing is removable. |
Compressor | Hermetically closed compressor with thermal protection and oil level indicator. |
Cooling circuit | Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R410a. |
Evaporator | Plate heat exchanger with icing protection and differential pressure switch. |
Condenser | High efficient, spiral exchanger with ribs, protected with steel net. |
Axial fan | Protected thermally and with metal net. |
Hydraulic circuit | Consist of electric pump, plastic water container, valve, manometr 0-10 bar. Evaporator is protected with flow sensor. |
Temperature control | Done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off. |
Dimensions
Technical data
Type | TCW A2 | TCW A4 | TCW A7 | TCW A9 |
---|---|---|---|---|
Nominal cooling power [W] | 12300 | 16400 | 17800 | 20700 |
Ambient temperature range [°C] | +15 ÷ +45 | |||
Water temperature range [°C] | +8 ÷ +45 | |||
Cooling liquid | R410A | |||
Power supply [V/Hz] | 400 3f / 50 | |||
Power [W] | 6100 | 7800 | 8000 | 8800 |
Pump | ||||
Water flow [l/min] | 35,0/80,0 | 46,0/80,0 | 50,0/80,0 | 58,0/80,0 |
Water pressure [bar] | 2,9 | 2,7 | 2,6 | 2,5 |
Container capacity [l] | 150,0 | |||
Water terminal BPS | 1" | |||
Weight[kg] | 250,0 | 255,0 | 265,0 | 270,0 |
