Произвођач: OMERIN

Силифлон ® 250 ° Ц Улецул

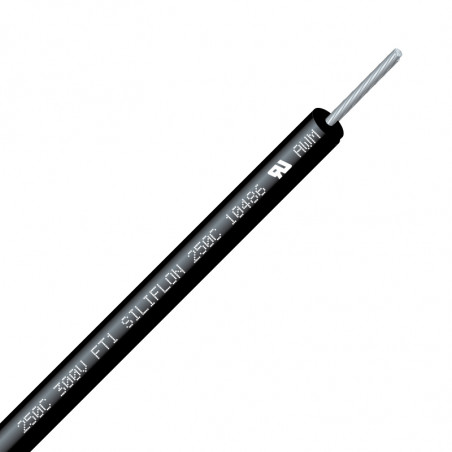

SILIFLON ® 250°C ULcUL

Characteristics

• Continuous operating temperatures: -90 °C to +250 °C.
• Excellent resistance to aggressive chemical environments.
• Excellent resistance to humidity and UV
• Excellent mechanical strength.
• Rated voltage: as per style no.
• Test voltage: 10 x Rated voltage.

Standard products

• All colours including translucent.
• Stranding of conducting cores: contact us.

Approvals - standards

• UL approval as per standard UL 758 – File no.: E101965.
• cUL approval (CSA) as per standard C22.2 No. 210 – File no.: E101965.
• “Horizontal flame test” as per UL approval.
• “FT1 flame rating” as per cUL approval.
• VW1 approval for Style 1727.

Applications

• Cabling for household electrical heating appliances, rotating machines, industrial machines, electronic equipment, rear computer panels, etc.

Options

• Other nominal cross-sections: contact us.

1 • Bare, tin-plated, nickel-plated or silver-plated copper core
2 • Insulation: Fluorinated polymer.

Style  1933
PFA  cienkościenny		 1882PFA 10486
PFA		 10410
MFA		 1726
PFA
250 °C - VNS 250 °C -  150V 250 °C -  300V 250 °C -  300V 250 °C -  300V
Nominal cross-section Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter*
AWG [mm2] [mm] [mm] [mm] [mm] [mm]
30 0.05 0.15 0.6 0.25 0.8 0.23 0.75 0.25 0.8 0.33 0.95
28 0.09 0.15 0.7 0.25 0.9 0.23 0.85 0.25 0.9 0.33 1.05
26 0.13 0.15 0.8 0.25 1.0 0.23 0.95 0.25 1.0 0.33 1.15
24 0.22 0.15 0.9 0.25 1.1 0.23 1.1 0.25 1.1 0.33 1.3
22 0.34 0.15 1.05 0.25 1.25 0.23 1.2 0.25 1.25 0.33 1.45
- 0.5 0.15 1.2 0.25 1.4 0.23 1.4 0.25 1.4 0.33 1.6
20 0.6 0.15 1.3 0.25 1.5 0.23 1.5 0.25 1.5 0.33 1.65
- 0.75 - - 0.25 1.55 0.23 1.55 0.25 1.55 0.33 1.75
18 0.93 - - 0.25 1.8 0.23 1.75 0.25 1.8 0.33 1.9
- 1 - - 0.25 1.8 0.23 1.75 0.25 1.8 0.33 1.95
16 1.34 - - 0.25 2.0 0.23 2.0 0.25 2.0 0.33 2.2
- 1.5 - - 0.25 2.0 0.23 2.0 0.25 2.0 0.33 2.2
14 - - - - - 0.23 2.3 0.25 2.4 0.33 2.6
- 2.5 - - - - 0.23 2.5 0.25 2.55 0.33 2.7
12 - - - - - 0.23 2.8 0.25 2.9 0.33 3.2
- 4 - - - - 0.23 3.05 0.25 3.1 0.33 3.25
10 - - - - - 0.23 3.6 0.25 3.6 0.33 3.9
- 6 - - - - 0.23 3.65 0.25 3.7 0.33 3.9
8 - - - - - 0.51 5.2 - - 0.51 5.2
- 10 - - - - 0.51 5.4 - - 0.51 5.4
6 - - - - - 0.51 6.3 - - 0.51 6.3
- 16 - - - - 0.51 6.6 - - 0.51 6.6
4 - - - - - 0.76 8.0 - - 0.76 8.0
- 25 - - - - 0.76 8.5 - - 0.76 8.5
2 35 - - - - 0.76 9.6 - - 0.76 9.6
1 - - - - - 1.14 11.2 - - 1.14 11.2
- 50 - - - - 1.14 12.0 - - 1.14 12.0
1/0 - - - - - 1.14 12.5 - - 1.14 12.5
2/0 70 - - - - 1.14 14.0 - - 1.14 14.0
3/0 - - - - - 1.14 15.2 - - 1.14 15.2
- 95 - - - - 1.14 15.4 - - 1.14 15.4
4/0 - - - - - 1.14 16.8 - - 1.14 16.8
- 120 - - - - 1.14 17.1 - - 1.14 17.1
Conducting metal CEG CEG CEG CEG CEG


Style  10297
MFA  Cienkościenny		 10362
PFA  Cienkościenny		 1727-VW1 10300
MFA		 10371
PFA Cienkościenny
250 °C -  600V 250 °C - 600V 250 °C -  600V 250 °C -  600V 250 °C -  1000V (cUL 600V)
Przekrój Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter* Average thickness of insulation Nominal diameter*
AWG [mm2] [mm] [mm] [mm] [mm] [mm]
30 0.05 - - 0.25 0.8 0.51 1.3 0.51 1.3 0.51 1.3
28 0.09 0.25 0.9 0.25 0.9 0.51 1.4 0.51 1.4 0.51 1.4
26 1.0 0.25 1.0 0.25 1.0 0.51 1.5 0.51 1.5 0.51 1.5
24 0.22 0.25 1.1 0.25 1.1 0.51 1.65 0.51 1.65 0.51 1.65
22 0.34 0.25 1.25 0.25 1.25 0.51 1.8 0.51 1.8 0.51 1.8
- 0.5 0.25 1.4 0.25 1.4 0.51 1.95 0.51 1.95 0.51 1.95
20 0.6 0.25 1.5 0.25 1.5 0.51 2.0 0.51 2.0 0,51 2.0
- 0.75 0.25 1.55 0.25 1.55 0.51 2.1 0.51 2.1 0.51 2.1
18 0.93 0.25 1.8 0.25 1.8 0.51 2.2 0.51 2.2 0.51 2.2
- 1 0.25 1.8 0.25 1.8 0.51 2.3 0.51 2.3 0.51 2.3
16 1.34 0.25 2.0 0.25 2.0 0.51 2.45 0.51 2.45 0.51 2.45
- 1.5 0.25 2.0 0.25 2.0 0.51 2.65 0.51 2.5 0.51 2.55
14 - 0.25 2.4 0.25 2.4 0.51 2.85 0.51 2.85 0.51 2.8
- 2.5 0.25 2.55 0.25 2.55 0.51 3.0 0.51 3.0 0.51 3.0
12 - 0.25 2.9 0.25 2.9 0.51 3.4 0.51 3.4 0.51 3.4
- 4 0.25 3.1 0.25 3.1 0.51 3.6 0.51 3.6 0.51 3.6
10 - 0.25 3.6 0.25 3.6 0.51 4.2 0.51 4.2 0.51 4.2
- 6 0.25 3.7 0.25 3.7 0.51 4.3 0.51 4.3 0.51 4.3
8 - 0.25 4.6 0.76 5.8 0.76 5.7 0.76 5.7 0.76 5.7
- 10 0.25 4.9 0.76 5.9 0.76 5.9 0.76 5.9 0.76 5.9
6 - 0.25 5.8 0.76 6.8 0.76 6.8 0.76 6.8 0.76 6.8
- 16 0.25 6.1 0.76 7.1 0.76 7.1 0.76 7.1 0.76 7.1
4 - 0.25 6.9 0.76 8.0 0.76 8.0 0.76 8.0 0.76 8.0
- 25 0.25 7.5 0.76 8.5 0.76 8.5 0.76 8.5 0.76 8.5
2 35 - - 0.76 9.6 0.76 9.6 0.76 9.6 0.76 9.6
1 - - - 1.14 1 1.2 1.14 11.2 1.14 11.2 1.14 11.2
- 50 - - 1.14 12.0 1.14 12.0 1.14 12.0 1.14 12.0
1/0 - - - 1.14 12.5 1.14 12.5 1.14 12.5 1.14 12.5
2/0 70 - - 1.14 14.0 1.14 14.0 1.14 14.0 1.14 14.0
3/0 - - - 1.14 15.2 1.14 15.2 1.14 15.2 1.14 15.2
- 95 - - 1.14 15.4 1.14 15.4 1.14 15.4 1.14 15.4
4/0 - - - 1.14 16.8 1.14 16.8 1.14 16.8 1.14 16.8
- 120 - - 1.14 17.1 1.14 17.1 1.14 17.1 1.14 17.1
Conducting metal   CEG CEG CEG CEG CEG

* The diameter is provided for information purposes as it may vary depending on the stranding of the core. Only the average thickness of insulation should be taken into account.

KEY

Conducting metal
B Tin-plated copper
B* Tin-plated copper (Ø > 0.38 mm)
C Nickel-plated copper
D Silver-plated copper
E Nickel
F Bare copper
F* Bare copper (Ø > 0.38 mm)
G Nickel-plated copper 27 %



AWM I A     Internal wiring, not subject to mechanical abuse
AWM I A/B   Internal wiring
AWM II A/B   External or Internal wiring
NS   Not Specified
VNS   Voltage Not Specified
