Произвођач: OMERIN

Силигаине 15Ц5-Е од -60 ° Ц до + 250 ° Ц - Кошуља проширења (Х и Ц класа)

SILIGAINE® 15C5-E Expandable -60 °C to +250 °C Classes H and C

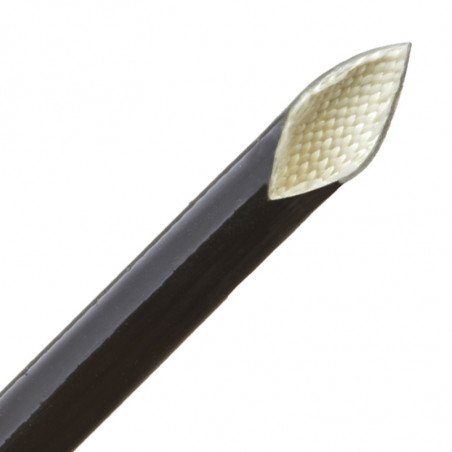

15C5-E - FIBREGLASS BRAIDED SLEEVING WITH SILICONE RUBBER COATING

Characteristics
• Continuous operating temperature: -60 °C to +250 °C.
• Expandable up to about twice the nominal diameter.
• Good resistance to humidity, ozone and UV.
• Good resistance to common chemical environments
• Compatible with most impregnation varnishes class H
• Self-extinguishing - meets the requirements of test VW-1 as per standard UL 1441.
• Very good flexibility.
• Halogen-free.
• Dielectric strength (dry): > 5 kV.

Standard products
• Colour: black.

Packaging
• Diameters from 0.5 to 1.5 mm: 200 m rolls
• Diameters from 2 to 4 mm: 100 m rolls.
• Diameters from 5 to 16 mm: 50 m rolls.

Standards
• IEC 60684-1 and 60684-2.
• IEC 60684-3 part 400 to 402.

Applications
• Internal cabling for rotating machines classes H and C (motors, alternators, generators, transformers, inductors, etc.).
• All insulations up to 250°C permanent in the electric and electronic constructions, heating appliances, lighting, automobile, measuring, control, etc.

Options
• Other diameters: contact us.
• Other colours: contact us.
• Sleevings cut to length: contact us.


INTERNAL DIAMETER SILIGAINE 15C5-E
Nominal value (mm) Minimum wall thickness (mm) Approximate linear weight (kg/km)
0.5 0.25 2.6
1 0.25 5.1
1.5 0.35 7.7
2 0.35 10.2
2.5 0.40 12.7
3 0.40 15.2
4 0.50 20.1
5 0.50 24.9
6 0.50 29.6
7 0.50 34.2
8 0.50 38.7
10 0.65 47.6
12 0.65 56.0
14 0.65 64.1
16 0.65 71.9
