Актуатори
  • Актуатори

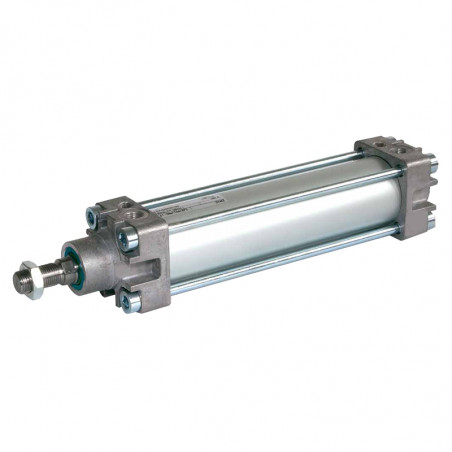

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: Norgren

Актуатори

Technical data
Medium:
Compressed air, filtered, lubricated / non lubricated
Operation:
PRA/182000: Regulated amortisation
PRA/182000/M:
Magnetic piston, Regulated amortisation
Operation pressure:
1 - 16 bar
Temperature:
-20°C - +80°C max.
High temperature resistant version:
150°C max.

Materials
Profile sleeve:
anode aluminium
Covers:
Aluminium
Piston rod:
stainless steel (ferrite)
Piston rod seal
polyurethane
Piston seal
polyurethane
O-ring:
nitrite rubber


Standard models


Piston rod Catalogue number (magnetic) Standard Protected from turning Catalogue number (non-magnetic) Standard Protected from turning Repair set Standard Protected from turning
Ø   Ø
32 12 G1/8 PRA/182032/IW* PRA/182032/N2/* PRA/182032/* PRA/182032/N1/* QA/8032/00 QA/8032/N1/00
40 16 G1/4 PRA/182040/IW* PRA/182040/N2/* PRA/182040/* PRA/182040/N1/* QA/8040/00 QA/8040/N1/00
50 20 G1/4 PRA/182050/M/* PRA/182050/N2/* PRA/182050/* PRA/182050/N1/* QA/8050/00 QA/8050/N1/00
63 20 G3/8 PRA/182063/IW* PRA/182063/N2/* PRA/182063/* PRA/182063/N1/* QA/8063/00 QA/8063/N1/00
80 25 G3/8 PRA/182080/IW* PRA/182080/N2/* PRA/182080/* PRA/182080/N1/* QA/8080/00 QA/8080/N1/00
100 25 G1/2 PRA/182100/IW* PRA/182100/N2/* PRA/182100/* PRA/182100/N1/* QA/8100/00 QA/8100/N1/00
125 32 G1/2 PRA/182125/IW* - PRA/182125/* - QA/8125/00 -
* insert step in mm

Option

*
Special versions
 Insert
High temperature resistant. max.150°C
 T
Hydraulic
 H
P
*
Piston rod material
Insert
Stainless steel(ferrite)
R
Hard galvanic chromium
C
Stainless steel (Austenitic)
S
A/182
***
Actuator diameter (mm)
Insert
032,040,050,063,080,100,125
**
Version(non magnetic piston rod) Insert

Standard

 M
Special drift fenders/seals
 W2
Small movement
 X2
piston rod
 MG
none amortisation
 MW
none amortisation, Small movement
 X4
Two side piston rod
 JM
Two side piston rod i

Special drift fenders/seals
 W4
4-positions
 MT
Piston rod protected from turning
 N2
Breaker
 L4
Sleeve turned 90°
 MIL
for slideways

enlarger piston rod
 MU
enlarger piston rod
 W6
Special drift fenders/seals

P*A/182***/MU/***/***

/W6/ ^--------->
 Wydłużenie(mm)
Version(non magnetic piston rod) Insert
Standard
 Brak
Special drift fenders/seals
 W1
Small movement
 X1
Mieszek tłoczyska
 G
none amortisation
 W
none amortisation, small movement resistances
 X3
Two side piston rod
 J
Two side piston rod

Special drift fenders/seals
 W3
4-positions
 IT
Piston rod protected from turning
 N1
Breaker
 L2
Sleeve turned 90° dla użycia

prowadnic GA/8000/61/*
 IIL
Sprzężenie zwrotne
 F1
Przedłużenie tłoczyska
 IU
enlarger piston rod i Special drift fenders/seals
 W5
P*A/182***/IU/****/***

/W5/ ^--------->
 Wydłużenie(mm)
****
step(mm)
3000 max.
Uwaga: Pomiń pozycje nie używanych opcji. W sprawie kombinacji kilku opcji skontaktuj się z naszym Działem Technicznym.


Limit switches

  Catalogoue number Cable with plug Groove plug
Contactrone IW50/LSU/*V IW50/LSU/CP M/P73001/5 (5 m) M/P72725/1000
Induction IW50/EAP/*V IW50/EAP/CP IWP73001/5 (5 m)

*Insert cable length- 2, 5 or10m.

Standard steps

Ø 25 50 80 100 125 160 200 250 320 400 500
32 ● ● ● ● ● ● ● ● o o o
40 ● ● ● ● ● ● ● ● ● o o
50 ● ● ● ● ● ● ● ● ● o o
63 ● ● ● ● ● ● ● ● ● o o
80 ● ● ● ● ● ● ● ● ● o o
100 ● ● ● ● ● ● ● ● ● o o
125 o o o o o o o o o o o
Teorethical force (N) @ 6 bar
Ø line feed slip
32 482 414
40 754 633
50 1178 990
63 1870 1680
80 3016 2722
100 4710 4416
125 7363 6882
