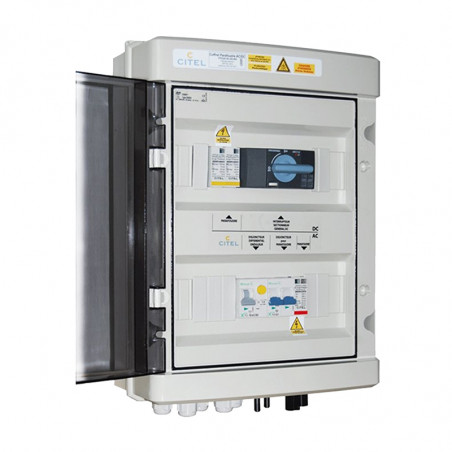

PV surge protector panel - AC side CPV240 series

PV surge protector panel - AC side CPV240 series

• Photovoltaic surge protector panel
• UTE C15-712-1 compliance
• AC network connection
• Line and differential circuit-breaker



CITEL part number

CPV240-230-xxx-DDR
Network tension Un 230 V mono
Maximum current 16 A - 25 A - 32 A
Network connection (intput/output) 6 mm2 max.
Security
Thermal disconnector internaL
Visualization of disconnection indicator Lightning
Surge protector branch circuit breaker in surge protector
Overcurrent protection by Line circuit breaker [catibre 16 or 32 A)
Protection against indirect contacts by differentiaL circuit breaker 30mA
Type 2 surge protector DS240-230/G
Max. operating vottage Uc 255 Vac
Nominał discharge current In 20 kA
Max. discharge current Imax 40 kA
Protection LeveL (CM/DM) Up 1,5/1,25 kV
Characteristics case
Protection LeveL IP 55
Dimensions (H x L x P) mm 198 x 255 x 108
Enclosure materiał PoLycarbonate UL 94VO
Access equipment Transparente door
Shift cabLe by cabLe gLands


PV surge protector panel - DC side CPV50-xxx-xxA-xST series


PV surge protector panel - DC side CPV50-xxx-xxA-xST series

• 3 string surge protector panel
• 500, 600 and 800 Vdc
• Max. current : 25 A
• Sectionnement




CITEL part number

CPV50-500-40A-3ST

CPV50-600-40A-3ST

CPV50-800-40A-3ST
Number of strings 3 3 3
Max. PV voLtage Uocstc 500 Vdc 600 Vdc 800 Vdc
Max. PV current Imppstc 25 A 25 A 25 A
Network connection (input/outputl terminal 6,5/10 mm2 terminaL 6,5/10 mm2 terminaL 6,5/10 mm2
DC switch yes yes yes
Fuses protection by strings option option option
Type 2 surge protector DS50PV-500/51 DS50PV-600/51 DS50PV-800/51
Max. PV voLtage Ucpv 600 Vdc 720 Vdc 960 Vdc
Nom. discharge current In 15 kA 15 kA 15 kA
Max. discharge current Imax 40 kA 40 kA 40 kA
Protection LeveL Up 2,2 kV 2,8 kV 2/3,6 kV
Characteristics case
Protection LeveL IP65
Dimensions (HxLxP) 305 x 225 x 125 mm
EncLosure materiaL ABS PC
Type of handLe externaL LockabLe


PV surge protector panel - AC/DC side CPV240-50 series

PV surge protector panel - AC/DC side CPV240-50 series

• AC/DC combined surge protector panel
• Differential circuit breakers
• Disconnection and connection of PV modules


CITEL part number

CPV240-50-230-xx-DDR
Network AC singLe phase network 2 strings - DC network
Network voltage Un/Uocstc 230 V mono 600 Vdc
Max. current (xx) 16A - 25A -32A 25A
Connection (inverter/networkj 6 mm2 max. in screw terminat 6mm2 max in terminaL resort type MC connector
Security
ThermaL disconnector internaL surge protector internaL surge protector
VisuaLization of disconnection surge protector indicator surge protector indicator
Surge protector SPDs breaker not necessary
Overcurrent protection by Line circuit breaker without
Protection against indirect contacts by diff. circuit breaker 30 mA without
Type 2 surge protector DS240-230/G DS50PV-600/51
Tension de regime permanent max. Ucpv 255 Vac 720 Vdc
Nominał discharge current In 20 kA 15 kA
Max. discharge current Imax 40 kA 40 kA
Protection LeveL Up 1,5/1,25 kV 2,8 kV
Characteristics case
Dimensions (H x L x P) 420 x 298 x 140 mm
EncLosure materiaL PoLycarbonate UL94 VD
Protection LeveL IP55
Access equipement Transparent door
Shift cabLe by cabLe gLands
