Serije: RM60-E2A, RM60-E3A, RM60-E4A, RM70-E4A, RM85-E6A, RM100-E8A, RM120-E8 / 2, RM140-E10 / 2

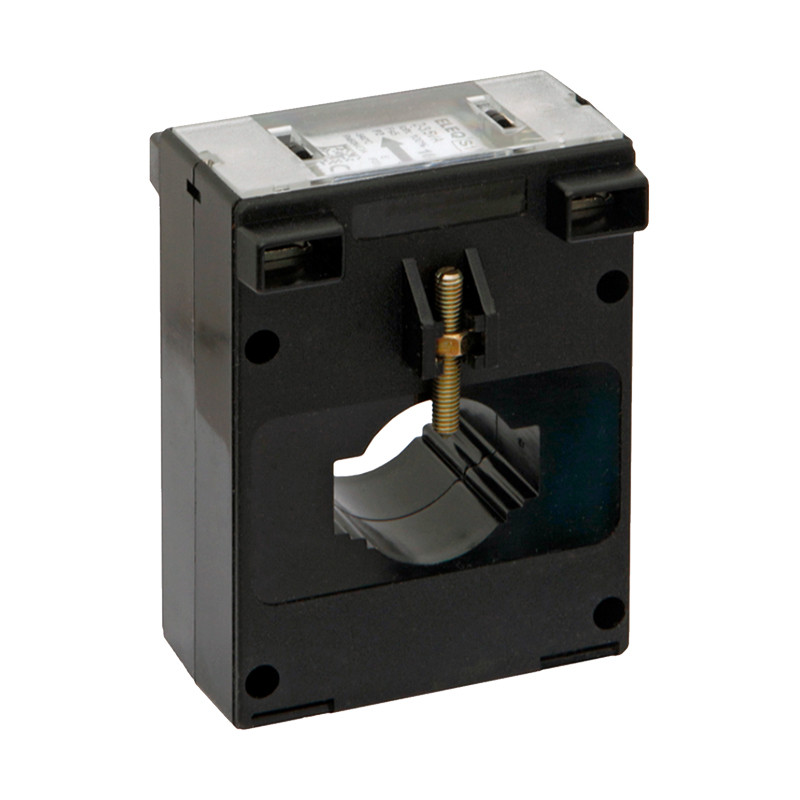

RM serija je transformator struje niskog napona.
Nekretnine:
sekundarne struje 5A ili 1A razreda 0,5, 1 i 3;
primarna struja do 3000, 50 / 60Hz;
promjer rupe: φ22,7mm, φ24,5mm, φ30,5mm, φ31mm i 5151mm
Promjer sabirnice: 20x10mm, 25x10mm, 30x10mm, 40x10mm, 50x10mm, 60x10mm, 80x10mm, 100x10mm, 2x80x10mm i 2x100x10mm;
montiran na bazu sa posebnim terminalima;
crno, polikarbonatno kućište;
terminali primarnog i sekundarnog kruga zaštićeni navlakom;
KEMA EUR certifikacija.
Prijave:
rad s ampermetrima (analognim i digitalnim);
rad sa aktuelnim diktafonima;
rad sa brojilima snage, brojila faktora snage;
rade s relejima, pretvaračima i brojilima energije.
Specifikacije:
Primenljivi standardi |
IEC 60044-1 |
Struja kratkog spoja |
60 x In/1s |
Kontinuirana struja |
1 x In |
Nivo izolacije |
0,72/3/-kV |
Radna frekvencija |
50/60Hz |
Klasa izolacije |
E |
Spajanje sekundarnog kruga |
Terminals |
Montaža |
Indoor |
Temperatura okoline |
-5°C do +40°C |
Vlažnost okoline |
5% do 85%, without condensation |
Stepen zaštite |
IP20 |
Modeli:
Prečnik rupe[mm] |
Φ22,7 |
Prečnik sabirnice [mm] |
15x10(15), 20x10 |
Širina transformatora [mm] |
60 |
Sekundarna struja 5A |
Class |
0,5 |
1 |
3 |
Part number |
Primarna struja [A] |
CT load [VA] |
25 |
|
|
0,5 |
4M2128N^
|
30 |
|
|
0,8 |
4M2129N^
|
40 |
|
|
1,2 |
4M2130N^
|
50 |
|
|
1,5 |
4M2101N^
|
60 |
|
|
2 |
4M2102N^
|
75 |
|
2 |
3 |
4M2103N^
|
80 |
|
2 |
3 |
4M2104N
|
100 |
1,5 |
3 |
4 |
4M2105N
|
120 |
2 |
3 |
5 |
4M2106N
|
125 |
2 |
3 |
5 |
4M2107N
|
150 |
2 |
3 |
5 |
4M2108N
|
200 |
4 |
5 |
7,5 |
4M2109N
|
250 |
4 |
7,5 |
10 |
4M2110N
|
300 |
7,5 |
10 |
12,5 |
4M2111N
|
400 |
5 |
7,5 |
10 |
4M2112N
|
|
Sekundarna struja 1A |
Class |
0,5 |
1 |
3 |
Nr katalogowy |
Primarna struja [A] |
CT load [VA] |
25 |
|
|
0,5 |
4M2131N
|
30 |
|
|
0,8 |
4M2132N
|
40 |
|
|
1,2 |
4M2133N
|
50 |
|
|
1,5 |
4M2113N
|
60 |
|
|
2 |
4M2114N
|
75 |
|
2 |
3 |
4M2115N
|
80 |
|
2 |
3 |
4M2116N
|
100 |
|
3 |
4 |
4M2117N
|
120 |
|
3 |
5 |
4M2118N
|
125 |
|
3 |
5 |
4M2119N
|
150 |
2 |
4 |
5 |
4M2120N
|
200 |
4 |
5 |
7,5 |
4M2121N
|
250 |
4 |
7,5 |
10 |
4M2122N
|
300 |
7,5 |
10 |
12,5 |
4M2123N
|
400 |
5 |
7,5 |
10 |
4M2124N
|
|
^ - CTs, which you can buy at our website by online store
Prečnik rupe [mm] |
Φ24,5 |
Prečnik sabirnice [mm] |
20x10(15), 25x10(11), 30x10 |
Širina transformatora [mm] |
60 |
Sekundarna struja 5A |
Class |
0,5 |
1 |
3 |
Part number |
Primarna struja [A] |
CT load [VA] |
50 |
|
|
1,5 |
4M2421N
|
60 |
|
|
2 |
4M2422N
|
75 |
|
1,5 |
2,5 |
4M2423N
|
80 |
|
1,5 |
2,5 |
4M2424N
|
100 |
|
2 |
3,5 |
4M2401N^
|
120 |
|
2,5 |
4 |
4M2402N
|
125 |
|
2,5 |
4 |
4M2403N^
|
150 |
|
3 |
5 |
4M2404N^
|
200 |
|
4 |
7,5 |
4M2405N^
|
250 |
|
3,5 |
5 |
4M2406N^
|
300 |
|
5 |
7,5 |
4M2407N^
|
400 |
5 |
7,5 |
10 |
4M2408N^
|
500 |
5 |
7,5 |
10 |
4M2409N
|
600 |
5 |
7,5 |
10 |
4M2410N
|
|
Sekundarna struja1A |
Class |
0,5 |
1 |
3 |
Nr katalogowy |
Primarna struja [A] |
CT load [VA] |
50 |
|
|
1,5 |
4M2425N
|
60 |
|
|
2 |
4M2426N
|
75 |
|
1,5 |
2,5 |
4M2427N
|
80 |
|
1,5 |
2,5 |
4M2428N
|
100 |
|
2 |
3,5 |
4M2411N
|
120 |
|
2,5 |
4 |
4M2412N
|
125 |
|
2,5 |
4 |
4M2413N
|
150 |
|
3 |
5 |
4M2414N
|
200 |
|
4 |
7,5 |
4M2415N
|
250 |
|
3,5 |
5 |
4M2416N
|
300 |
|
5 |
7,5 |
4M2417N
|
400 |
5 |
7,5 |
10 |
4M2418N
|
500 |
5 |
7,5 |
10 |
4M2419N
|
600 |
5 |
7,5 |
10 |
4M2420N
|
|
^ - CTs, which you can buy at our website by online store
Prečnik rupe [mm] |
Φ24,5 |
Prečnik sabirnice [mm] |
30x10(14), 40x10 |
Širina transformatora [mm] |
60 |
Sekundarna struja 5A |
Class |
0,5 |
1 |
3 |
Part number |
Primarna struja [A] |
CT load [VA] |
250 |
|
2,5 |
5 |
4M2701N
|
300 |
|
5 |
|
4M2702N
|
400 |
3 |
4 |
5 |
4M2703N
|
500 |
4 |
5 |
7,5 |
4M2704N^
|
600 |
5 |
7,5 |
10 |
4M2705N^
|
|
Sekundarna struja 5A |
Class |
0,5 |
1 |
3 |
Part number |
Primarna struja [A] |
CT load [VA] |
250 |
|
2,5 |
5 |
4M2711N
|
300 |
|
5 |
|
4M2712N
|
400 |
3 |
4 |
5 |
4M2713N
|
500 |
4 |
5 |
7,5 |
4M2714N
|
600 |
5 |
7,5 |
10 |
4M2715N
|
|
^ - CTs, which you can buy at our website by online store
Prečnik rupe [mm] |
Φ30 |
Prečnik sabirnice [mm] |
30x10(14), 40x10(13) |
Širina transformatora [mm] |
70 |
Sekundarna struja 5A |
Class |
0,5 |
1 |
FS 5 for range |
Part number |
Primarna struja [A] |
CT load [VA] |
600 |
|
5 |
7,5 |
4M3403
|
750 |
5 |
7,5 |
10 |
4M3401^
|
800 |
5 |
7,5 |
10 |
4M3402
|
|
Sekundarna struja 5A |
Class |
0,5 |
1 |
FS 5 for range |
Part number |
Primarna struja [A] |
CT load [VA] |
600 |
|
5 |
7,5 |
4M3412 |
750 |
5 |
7,5 |
10 |
4M3413 |
800 |
5 |
7,5 |
10 |
4M3414 |
|
^ - CTs, which you can buy at our website by online store
Prečnik rupe [mm] |
Φ30 |
Prečnik sabirnice [mm] |
60x10, 50x10(15), 40x10(16) |
Širina transformatora [mm] |
85 |
Sekundarna struja 5A |
Class |
0,5 |
1 |
FS 5 for range |
Part number |
Primarna struja [A] |
CT load [VA] |
750 |
1…5 |
10 |
5 |
4M8733
|
800 |
1…5 |
10 |
5 |
4M8709
|
1000 |
1…10 |
15 |
10 |
4M8710^
|
1200 |
1…10 |
15 |
10 |
4M8711
|
1250 |
1…10 |
15 |
10 |
4M8712^
|
1500 |
1…5 |
20 |
15 |
4M8713
|
|
Sekundarna struja 5A |
Class |
0,5 |
1 |
FS 5 for range |
Part number |
Primarna struja [A] |
CT load [VA] |
750 |
1…5 |
10 |
5 |
4M8718
|
800 |
1…5 |
10 |
5 |
4M8719
|
1000 |
1…10 |
15 |
10 |
4M8720
|
1200 |
1…10 |
15 |
10 |
4M8721
|
1250 |
1…10 |
15 |
10 |
4M8722
|
1500 |
1…5 |
20 |
15 |
4M8723
|
|
^ - CTs, which you can buy at our website by online store
Prečnik rupe [mm] |
Φ50 |
Prečnik sabirnice [mm] |
80x10(15), 60x10(30), 50x10(40) |
Širina transformatora [mm] |
100 |
Sekundarna struja 5A |
Class |
0,5 |
1 |
FS 5 for range |
Part number |
Primarna struja [A] |
CT load [VA] |
1000 |
1…10 |
20 |
10 |
4M9A01
|
1200 |
1…10 |
20 |
10 |
4M9A02
|
1250 |
1…10 |
20 |
10 |
4M9A25
|
1500 |
1…20 |
30 |
20 |
4M9A03^
|
1600 |
1…20 |
30 |
20 |
4M9A04^
|
|
Sekundarna struja 5A |
Class |
0,5 |
1 |
FS 5 for range |
Part number |
Primarna struja [A] |
CT load [VA] |
1000 |
1…10 |
20 |
10 |
4M9A11
|
1200 |
1…10 |
20 |
10 |
4M9A12
|
1250 |
1…10 |
20 |
10 |
4M9A16
|
1500 |
1…20 |
30 |
20 |
4M9A13
|
1600 |
1…20 |
30 |
20 |
4M9A14
|
|
^ - CTs, which you can buy at our website by online store
Prečnik rupe [mm] |
Φ30 |
Prečnik sabirnice [mm] |
2x80x10, 80x10(30) |
Širina transformatora[mm] |
120 |
Sekundarna struja 5A |
Class |
0,5 |
1 |
FS 5 for range |
Part number |
Primarna struja [A] |
CT load [VA] |
1000 |
1…10 |
20 |
10 |
4MA324
|
1200 |
1…10 |
20 |
10 |
4MA322
|
1250 |
1…10 |
20 |
10 |
4MA323
|
1500 |
1…20 |
30 |
20 |
4MA301
|
1600 |
1…20 |
30 |
20 |
4MA302
|
2000 |
1…20 |
30 |
20 |
4MA303^
|
2500 |
1…30 |
|
30 |
4MA304^
|
|
Sekundarna struja 1A |
Class |
0,5 |
1 |
FS 5 for range |
Part number |
Primarna struja [A] |
CT load [VA] |
1000 |
1…10 |
20 |
10 |
4MA316
|
1200 |
1…10 |
20 |
10 |
4MA317
|
1250 |
1…10 |
20 |
10 |
4MA318
|
1500 |
1…20 |
30 |
20 |
4MA311
|
1600 |
1…20 |
30 |
20 |
4MA312
|
2000 |
1…20 |
30 |
20 |
4MA313
|
2500 |
1…30 |
|
30 |
4MA314
|
|
^ - CTs, which you can buy at our website by online store
Prečnik rupe [mm] |
Φ30 |
Prečnik sabirnice [mm] |
2x100x10, 2x100x10(30) |
Širina transformatora [mm] |
140 |
Sekundarna struja 5A |
Class |
0,5 |
Part number |
Primarna struja [A] |
CT load [VA] |
1500 |
1…15 |
4MB001
|
1600 |
1…15 |
4MB002
|
2000 |
1…15 |
4MB003
|
2500 |
1…15 |
4MB004
|
3000 |
1…30 |
4MB005
|
|
Sekundarna struja 1A |
Class |
0,5 |
FS 5 for range |
Part number |
Primarna struja [A] |
CT load [VA] |
1500 |
1…15 |
15 |
4MB011
|
1600 |
1…15 |
15 |
4MB012
|
2000 |
1…15 |
15 |
4MB013
|
2500 |
1…15 |
15 |
4MB014
|
|
Transformatori za veće struje, s većim opterećenjem, boljim razredom i dvostrukim mjernim opsegom, izrađuju se po narudžbi. Za više informacija kontaktirajte naš odjel prodaje.
Dimenzije
[mm]:
RM60-E2A
|
RM60-E3A
|
 |
 |
RM60-E4A
|
RM70-E4A
|
|
 |
RM85-E6A
|
RM100-E8A
|
 |
|
RM120-E8/2
|
RM140-E10/2
|
 |
 |
