Произвођач: TOSHIBA TEC Poland

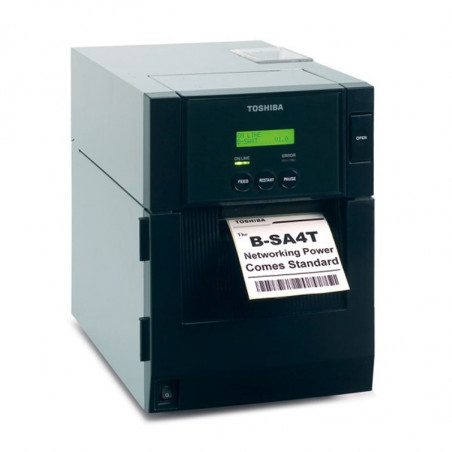

Индустријски штампач Б-СА4ТМ

Industrial printer B-SA4TM

Technical data
Printing technology
Thermal and thermal transfer
Type of printhead
Flat
Printing width
23 - 104 mm for 203 dpi
23 - 105,7 mm for 300 dpi
Printing length
13 - 997 mm
Label backing width
118 mm
Resolution
203 dpi or 300 dpi
Printing speed
Up to 152,4 mm/s
Memory
16 MB DRAM, 16 MB Flash
Supported barcodes
UPC/EAN/JAN, Code 39, Code 93, Code 128 UCC, Code 128, NW7, MSI,
Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-code, RSS14
Customer Bar Code
Supported 2D codes
Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417, CP Code
Interfaces
Two-way LPT port, USB 2.0, LAN 10/100
Dimensions
238 (W) x 332 (H) x 402 (D) mm
Additional options
Blade, label peel-off module, WLAN card, serial port, RFID module,
binary logic port, printhead 300 dpi, real-time clock
Weigth
15 kg (not including tapes and labels)
Consumables
Paper roll - internal diameter
38 - 76,2 mm
Paper roll - external diameter
200 mm (inward- and outward-facing rolls available)
Label thickness
0,08 - 0,17 (wide label) and 0,08 - 0,26 (narrow label)
Thermal transfer tape length
Max. 450 m


B-SA4TM
Thermal and thermal transfer industrial printer
Model Description Printing resolution (dpi) Max. printing speed (mm/s) Max. printing width (mm) LPT USB LAN
B-SA4TM-GS12-QM-R
Printhead 203 dpi
 203 104 105,7 V V V
B-SA4TM-TS12-QM-R
Printhead 305 dpi
 305 152,4 105,7 V V V
B-SA4TM - options
B-SA204P-QM-R
Blade
B-SA904P-H-QM-R
Label peel-off module
B-SA704-RS-QM-R
Serial port
B-SA704-WLAN-QM-R
WLAN card
B-SA704-IO-QM-R
Binary logic module
B-SA704-TPH3-QM-R
Printhead 300 dpi
B-SA704-RFID-U1-EU-R
UHF RFID module (868 MHz) - in progress
B-SA704-RFID-H1-QM-R
HF RFID module (13,56 MHz) - in progress
B-SA704-RTC-QM-R
Real-time clock
B-SA4TM - spare parts
7FM00973000
Printhead 203dpi
7FM00973100
Printhead 305dpi
