Произвођач: Eaton / CEAG

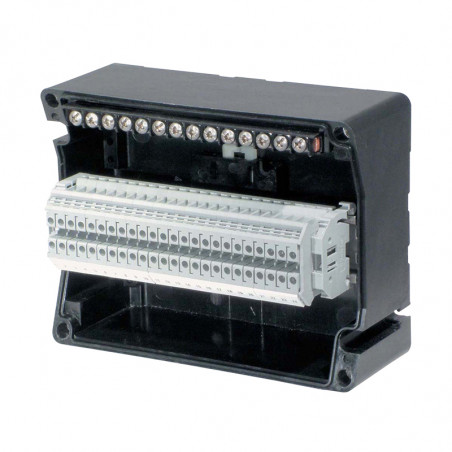

Универзалне стезаљке из пластике серије ГХГ

Ex-e/Ex-i Technology

plastic version measuring and controlling for Zone 1, 2, 21 and 22


Connecting your field devices

The terminal boxes were designed for measuring and controlling utilization in Ex-e and Ex-i applications. They are used as a link between the main cable to the control room and the branch cables into the field. In addition to this, they may also be used for the direct connection of actuators and sensors. The new terminal boxes for instrumentation installations are available in 5 sizes, ranging from 6 to max. 60 connection terminals. The optional interior coating protects your data cable connections against external radiation fields. The choice between screw and tension spring (screwless) terminals for single and multi-wire conductors makes it possible for engineers to select the type of connection most suitable for the particular application.

Easy to install

The CEAG installation system provides an economical way of mounting the terminal boxes on walls, trellis work and pipes. The terminal boxes are suited for the use of single or multiple cable glands. With CEAG terminal boxes it is possible to apply separate potentials such as screen-grid leads or PE/PA conductors to the plug-in PE rails. The snapout terminal rails allow a problem-free feeding-in of cables. The well-proven clip-in flanges in moulded plastic or metal design allow multiple application possibilities. As a result of the optimized design, a large drilling surface was created. This can be fitted with a sufficient number of moulded plastic glands or an equal number of metal glands.

Features:

  • Decisive cost saving
  • with the CEAG installation system
  • Safety standard IP66
  • Freely accessible connection terminals
  • Clip-in flange technique
  • Snap-out terminal rails
  • Internal coating for EMC-protection on request

To make it easier for you to be able to choose a terminal or junction box, you will find in table-form all the basic data that is required below. Using the table below you can choose and configure your terminal boxes. The table “Max. number of terminals“ is based on the mechanical conditions of the terminal enclosure such as length of mounting rail and height the terminals. It is based on common terminal types such as Phoenix© or Wago©. The permissible number of terminals in terms of the type examination certificate must be checked in each individual case based on the current load tables in the operating instructions. Using the maximum drill surface and the interference diameter of the wire and cable entries tables plus the number of terminals you require, you can choose the right terminal box for your application. The terminal boxes can also be equipped with (when requested) brass flanges and external earthing connectors.

Technical data



Maximum number of terminals acc. to certification
Type Terminal cross section in mm²
  2,5 4 6 10 16 25 35
GHG 791 01 6 6 – – – – –
GHG 791 02 12 10 7 – – – –
GHG 731 11 16 14 10 8 8 – –
GHG 731 12 24 24 18 18 14 – –
GHG 721 00 26 22 17 13 11 – –
GHG 721 10 48 40 30 24 20 – –
GHG 744 01 40 33 25 20 17 17 –
GHG 745 02 2 x 41 2 x 34 2 x 26 2 x 20 17 17 14
GHG 746 03 2 x 94 2 x 78 2 x 59 2 x 47 40 40 32
GHG 749 04 2 x 148 2 x 124 2 x 94 2 x 75 63 63 51






Terminal rails
Type Rail Length
GHG 791 01 40 mm
GHG 791 02 95 mm
GHG 731 11 107 mm
GHG 731 12 169 mm
GHG 721 00 140 mm
GHG 721 10 262 mm
GHG 744 01 230 mm
GHG 745 02 2 x 235 mm
GHG 746 03 2 x 510 mm
GHG 749 04 2 x 795 mm


Dimensions
Type Width x Length x Height
GHG 791 01 100 mm x 81 mm x 61 mm
GHG 791 02 113 mm x 117 mm x 73 mm
GHG 731 11 120 mm x 140 mm x 95 mm
GHG 731 12 182 mm x 140 mm x 95 mm
GHG 721 00 165 mm x 165 mm x 131 mm
GHG 721 10 285 mm x 165 mm x 143 mm
GHG 744 01 271 mm x 134 mm x 136 mm
GHG 745 02 271 mm x 271 mm x 136 mm
GHG 746 03 544 mm x 271 mm x 136 mm
GHG 749 04 817 mm x 271 mm x 136 mm
Space required for wire and cable entries
Type Interference Plastic Diameter Metal
M12 Ø 19 mm Ø 21 mm
M16 Ø 25 mm Ø 21 mm
M20 Ø 31 mm Ø 26,5 mm
M25 Ø 37 mm Ø 33 mm
M32 Ø 46 mm Ø 45,1 mm
M40 Ø 56 mm Ø 53 mm
M50 Ø 68 mm Ø 60,5 mm
M63 Ø 84 mm Ø 80 mm
max. drill surface
Type Width x Height
GHG 791 01 80 mm x 45 mm
GHG 791 02 93 mm x 57 mm
GHG 731 11 95 mm x 75 mm
GHG 731 12 144 mm x 75 mm
GHG 721 00 132 mm x 91 mm
GHG 721 10 252 mm x 95 mm
GHG 744 01 238 mm x 134 mm
GHG 745 02 238 mm x 134 mm
GHG 746 03 (2x) 238 mm x 134 mm
GHG 749 04 (3x) 238 mm x 134 mm
Flange 1 70,5 mm x 48,5 mm
Flange 2 204 mm x 72,5 mm


GHG 791 01 up to 6 terminals I GHG 791 02 up to 12 terminals


Technical data

Marking accd. to 2014/34/EU

EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking accd. to IECEx

Permissible ambient temperature

Rated voltage
Protection class
Degree of protection accd. to EN 60529
Enclosure material:
Enclosure colour		 II 2G Ex e II T6 / Ex ia IIC T6
II 2D IP66 T58°C
PTB 00 ATEX 3108
IECEx BKI 07.0034
Ex e II T6 / Ex ia IIC T6
Ex tD A21 IP66 T58°C
-20°C do +40°C
-55°C do +40°C (option)
690 V
I
IP66
poliamid
black
GHG 791 01
GHG 791 02


GHG 731 11 up to 16 terminals I GHG 731 12 up to 24 terminals

Technical data

Marking accd. to 2014/34/EU

EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking accd. to IECEx

Permissible ambient temperature

Rated voltage
Rated current
Protection class
Degree of protection accd. to EN 60529
Enclosure material
Enclosure colour		 II 2G Ex e II T6 / Ex ia IIC T6
II 2D IP66 T58°C
PTB 00 ATEX 3108
IECEx BKI 07.0034
Ex e II T6 / Ex ia IIC T6
Ex tD A21 IP66 T58°C
-20°C do +40°C
-55°C do +40°C (option)
690 V
depends on terminal mounting
I
IP66
poliamid
black
GHG 731 11
GHG 731 1


Dimensions



GHG 721 00 up to 26 terminals I GHG 721 10 up to 48 terminals

Technical data

Marking accd. to 2014/34/EU

EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking accd. to IECEx

Permissible ambient temperature

Rated voltage
Rated current
Protection class
Degree of protection accd. to EN 60529
Enclosure material
Enclosure colour		 II 2G EEx e II T6 / EEx ia IIC T6
II 2D IP66 T80°C
PTB 99 ATEX 1044
IECEx BKI 07.0023
Ex ed ia/ib m [ia/ib] IIC T4 – T6
Ex tD A21 IP66 T80°C
-20°C do +40°C
-55°C do +55°C (option)
690 V
depends on terminal mounting
I
IP66
glass-fibre reinforced polyester
black
GHG 731 11
GHG 731 1


GHG 744 01 up to 40 terminals I GHG 745 02 up to 82 terminals

Technical data

Marking accd. to 2014/34/EU

EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking accd. to IECEx

Permissible ambient temperature

Rated voltage
Rated current
Protection class
Degree of protection accd. to EN 60529
Enclosure material
Enclosure colour		 II 2G EEx e II T6 / EEx ia IIC T6
II 2D IP66 T80°C
PTB 99 ATEX 1044
IECEx BKI 07.0023
Ex ed ia/ib m [ia/ib] IIC T4 – T6
Ex tD A21 IP66 T80°C
-20°C do +40°C
-55°C do +55°C (option)
690 V
depends on terminal mounting
I
IP66
glass-fibre reinforced polyester
black
GHG 731 11
GHG 731 1


Dimensions



GHG 746 03 up to 188 terminals I GHG 749 04 up to 296 terminals

Technical data

Marking accd. to 2014/34/EU

EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking accd. to IECEx

Permissible ambient temperature

Rated voltage
Rated current
Protection class
Degree of protection accd. to EN 60529
Enclosure material
Enclosure colour		 II 2G EEx e II T6 / EEx ia IIC T6
II 2D IP66 T80°C
PTB 99 ATEX 1044
IECEx BKI 07.0023
Ex ed ia/ib m [ia/ib] IIC T4 – T6
Ex tD A21 IP66 T80°C
-20°C do +40°C
-55°C do +55°C (option)
690 V
depends on terminal mounting
I
IP66
glass-fibre reinforced polyester
black
GHG 731 11
GHG 731 1


Dimensions


Order:
