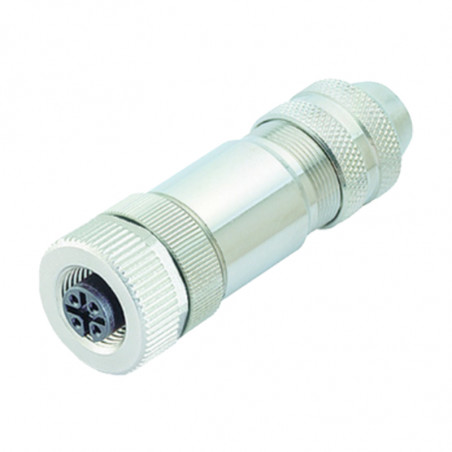

![М12 Контролни конектори М12 Контролни конектори](https://www.dacpol.eu/13045-large_default/m12-kontrolni-konektori.jpg)
![М12 Контролни конектори М12 Контролни конектори](https://www.dacpol.eu/13045-large_default/m12-kontrolni-konektori.jpg)
Морате бити пријављени да
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Фотографије су само у информативне сврхе. Погледајте спецификацију производа
please use latin characters
Material: | nickel plated |
Protection: | max. IP 66/67 |
Type of protection : | II 1 G Ex ia IIC T6 Ga |
CE Declatation | AV1-il-C0001 |
Ambient temp.: | -40oC ÷ +80oC |
Connection thread | M12x1 |
Contact material: | gold plated |
Connection plug: | max. 0,75mm2 |
Screw type for cable | 4-6mm lub 6-8mm. |
Coupler |
Flange plug |
![]() |
1. brown 2. white 3. blue 4 black |
![]() |
![]() |
||
Plug |
Flange socket |
![]() |
1. brown 2. white 3. blue 4 black |
![]() |
![]() |
a) Plug / Coupler | b)Single connection box with one flange socket |
![]() |
![]() |
Picture | Art. No | Describtion | Code | Connection | Diameter |
---|---|---|---|---|---|
![]() |
500001* | Coupler 4 - pole | A | M12x1 | Ø6-8 |
![]() |
500002* | Coupler 4 - pole | A | M12x1 | Ø4-6 |
![]() |
500003* | Coupler 4 - pole | B | M12x1 | Ø4-6 |
![]() |
500004* | Coupler 4 - pole | B | M12x1 | Ø6-8 |
![]() |
500005* | Coupler 4 - pole | D | M12x1 | Ø6-8 |
![]() |
500006* | Coupler 4 - pole | D | M12x1 | Ø4-6 |
![]() |
500007* | Socket 4 - pole | A | M12x1 | Ø4-6 |
![]() |
500008* | Socket 4 - pole | A | M12x1 | Ø6-8 |
![]() |
500009* | Socket 4 - pole | B | M12x1 | Ø6-8 |
![]() |
500010* | Socket 4 - pole | B | M12x1 | Ø4-6 |
![]() |
500011* | Socket 4 - pole | D | M12x1 | Ø4-6 |
![]() |
500012* | Socket 4 - pole | D | M12x1 | Ø6-8 |
Picture | Art. No | Describtion | Code | Connection | Diameter |
---|---|---|---|---|---|
![]() |
500013* | Flange socket 4-pol wire lenght 0,5m |
A | M12x1 | M16x1,5 |
![]() |
500014* | Flange socket 4-pol wire lenght 0,5m |
B | M12x1 | M16x1,5 |
![]() |
500015* | Flange socket 4-pol wire lenght 0,5m |
D | M12x1 | M16x1,5 |
![]() |
500016* | Socket 4 -pola wire lenght 0,5m |
A | M12x1 | M16x1,5 |
![]() |
500017* | Socket 4 -pola wire lenght 0,5m |
B | M12x1 | M16x1,5 |
![]() |
500018* | Socket 4 -pola wire lenght 0,5m |
D | M12x1 | M16x1,5 |
Picture | Art. No | Describtion |
---|---|---|
![]() |
500019* | Protection cab for flange plug 500016, 500017, 500018 |
![]() |
500020* | Protection cab for flange socket 500013, 500014, 500015 |
![]() |
500021* | Protection cab for plug 500007÷500012 |
![]() |
500022* | Protection cab for coupler 500001÷500006 |
