Јамин 133
  • Јамин 133

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: Sammode

Јамин 133

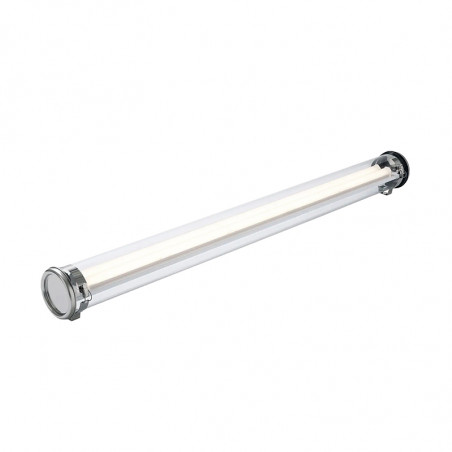

Luminaire JAMIN 133


Characteristic

LED technology
Low in maintenance Instantaneous full light output on ignition over the entire temperature range of use Designed for repeated switching on and off

Tubular
Increased mechanical resistance. Easy to clean. Limited dirt accumulation. Orientation 360o.

Impervious
(IP68/IP69K) Absolute imperviousness No internal dust accumulation Maximum light output Adapted for pressure cleaning

Robust
Mechanical assembly insensitive to external mechanical and/or chemical aggressio

Basic parameters
Electrical class: I
Fire resistance: Coex. polycarbonate/PMMA (650oC), Borosilicate glass (non-flammable)
Protecion: IP 68/69K
Shock resistance: IK10 (polycarbonate), IK07 (Borosilicat glass).
Operationg temperature: -20oC do +40oC
II 3G Ex nA IIC T4 Gc, II 2D Ex tb IIIC T80oC Db



Dimensions


Ø133 mm coextruded polycarbonate/ PMMA diffuser for chemically aggressive environments environments and outdoor lighting
End caps 1/2 ring press-formed in 304L stainless steel (316L also available)
Gaskets moulded in EPDM
Cable entry with cable gland
Possibility for a model with 2 cable entries for looping-in (2 cable glands with stopper plug or 1 cable gland and 1 blind plug at the same cap)



Power Fliux
(Im)		 Designation Code Optics Colour temperatue
[K]		 L
[mm]		 Ciężar
[kg]
VERSIONS WITH COEXTRUDED POLYCARBONATE / PMMA HOUSING
    Equivalent to 2x36W T8
48W 5550

HUT100 13H830 POME 113

1988 0010

 3000 995 3,9
48W 5550

HUT100 13H840 POME 113

1988 0020

 4000 995 3,9
    Equivalent au 2x58W T8
80W 9250

HUT100 15H830 POME 113

1988 0030

 3000 1595 5,5
80W 9250

HUT100 15H840 POME 113

1988 0040

 4000 1595 5,5

Options
Designation Code
Cable entries
1 or 2 cable glands in black polyamide
Cable Ø: 8-13 mm 113/213
Cable Ø: 10-15 mm 116/216
1 cable gland in black polyamide and 1 blind plug Hole Ø20 mm
Cable Ø: 8-13 mm 113-1B
Cable Ø: 10-15 mm 116-1B
1 or 2 cable glands in nickel-coated brass
Cable Ø : 5-14 mm 113LN/213LN
Designation Code
Finishings
End caps and fixing straps in 316L stainless steel MR
Fixings
Reinforced bolt-fitted fixing straps with HSHC screw* BRV
Dodatkowe elementy
Protective covers
Fixing for coluns
