![]() 250 V 4 kV/3, 10 A |
IP 54 IP 65 |
3-poles + grounding
plastic casing 400V/4kV, 10 A metal casing250 V/400 V/4 kV, 10 A |
wire section | Certificates | Insulated length | Material | Package. | Catalogue number | |||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
Contacts screw | Socket | 0,5-2,5mm2 0,5-2,5mm2 |
![]() |
4 mm | Nickel(3-pol) Silvered(4-pol.) | 10 | 73.300.0353.0 | ||
Pin | 0,2-1,5mm2 | ![]() |
4 mm | Nickel(3-pol.) Silvered(4-pol.) | 10 | 73.310.0353.0 | ||||
![]() |
Contacts clamps | Socket without Contacts |
0,2-1,5mm2 | ![]() |
4 mm | 10 | ||||
Pin without Contacts |
4mm | 10 | ||||||||
Thread size | Gland type | Material | Package. | |||||||
![]() |

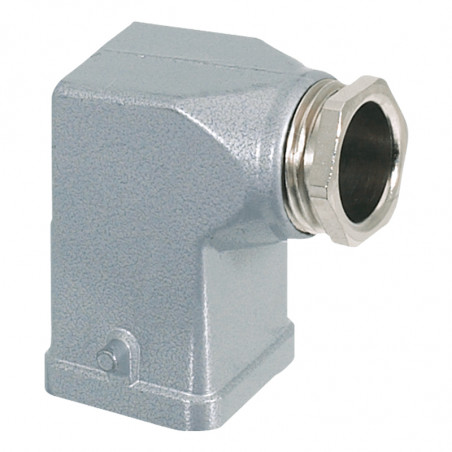

M 20 | Angular cover | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.350.0736.0 76.350.0736.1 76.350.0760.1 | ||||
![]() |
M 20 | Straight cover | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.352.0736.0 76.352.0736.1 76.352.0760.1 | ||||
![]() |
M 20 | Cover with clamp lever and gland | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.372.0736.0 76.372.0736.1 76.372.0760.1 | ||||
![]() |
Open base with clamp lever | Metal Plastic |
10 10 |
76.320.0729.0 76.320.0753.0 | ||||||
![]() |
Open angular base with clamp lever | Metal Plastic |
10 10 |
76.321.0729.0 76.321.0753.0 | ||||||
![]() |
M 20 | Closed base with clamp lever |
0 with gland 1 with thread for gland 1 with thread for gland |
Metal |
10 10 10 |
76.322.0736.0 76.322.0736.1 76.322.0760.1 |
4-poles + grounding plastic casing 250V/4kV, 10 A metal casing250V/4kV, 10 A
|
wire section | Certificates | Insulated length | Material | Package. | Catalogue number | |||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
Contacts screw | Socket | 0,5-2,5 mm2 0,5-2,5mm2 |
![]() |
4 mm | Nickel(3-pol) Silvered(4-pol.) | 10 | 73.300.0453.0 | ||
Pin | 0,2-1,5mm2 | ![]() |
4 mm | Nickel(3-pol.) Silvered(4-pol.) | 10 | 73.310.0453.0 | ||||
![]() |
Contacts clamps | Socket without Contacts |
0,2-1,5mm2 | ![]() |
4 mm | 10 | ||||
Pin without Contacts |
4mm | 10 | ||||||||
Thread size | Gland type | Material | Package. | |||||||
![]() |
M 20 | Angular cover | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.350.0736.0 76.350.0736.1 76.350.0760.1 | ||||
![]() |
M 20 | Straight cover | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.352.0736.0 76.352.0736.1 76.352.0760.1 | ||||
![]() |
M 20 | Cover with clamp lever and gland |
0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.372.0736.0 76.372.0736.1 76.372.0760.1 | ||||
![]() |
Open base with clamp lever | Metal Plastic |
10 10 |
76.320.0729.0 76.320.0753.0 | ||||||
![]() |
Open angular base with clamp lever | Metal Plastic |
10 10 |
76.321.0729.0 76.321.0753.0 | ||||||
![]() |
M 20 | Closed base with clamp lever | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal |
10 10 10 |
76.322.0736.0 76.322.0736.1 76.322.0760.1 |
7-poles + grounding plastic casing 250V/4kV, 10 A metal casing50V/0,8kV, 10 A
|
wire section | Certificates | Insulated length | Material | Package. | Catalogue number | |||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
Contacts screw | Socket | 0,5-2,5 mm2 0,5-2,5mm2 |
![]() |
4 mm | Nickel(3-pol) Silvered(4-pol.) | 10 | |||
Pin | 0,2-1,5mm2 | ![]() |
4 mm | Nickel(3-pol.) Silvered(4-pol.) | 10 | |||||
![]() |
Contacts clamps | Socket without Contacts |
0,2-1,5mm2 | ![]() |
4 mm | 10 | 73.700.0753.0 | |||
Pin without Contacts |
4mm | 10 | ||||||||
Thread size | Gland type | Material | Package. | |||||||
![]() |
M 20 | Angular cover | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.350.0736.0 76.350.0736.1 76.350.0760.1 | ||||
![]() |
M 20 | Straight cover | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.352.0736.0 76.352.0736.1 76.352.0760.1 | ||||
![]() |
M 20 | Cover with clamp lever and gland | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.372.0736.0 76.372.0736.1 76.372.0760.1 | ||||
![]() |
Open base with clamp lever | Metal Plastic |
10 10 |
76.320.0729.0 76.320.0753.0 | ||||||
![]() |
Open angular base with clamp lever | Metal Plastic |
10 10 |
76.321.0729.0 76.321.0753.0 | ||||||
![]() |
M 20 | Closed base with clamp lever | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal |
10 10 10 |
76.322.0736.0 76.322.0736.1 76.322.0760.1 |
8-poles
plastic casing 50V/0,8kV, 10 A metal casing50V/0,8kV, 10 A |
wire section | Certificates | Insulated length | Material | Package. | Catalogue number | |||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
Contacts screw | Socket | 0,5-2,5mm2 0,5-2,5mm2 |
![]() |
4 mm | Nickel(3-pol) Silvered(4-pol.) | 10 | |||
Pin | 0,2-1,5mm2 | ![]() |
4 mm | Nickel(3-pol.) Silvered(4-pol.) | 10 | |||||
![]() |
Contacts clamps | Socket without Contacts |
0,2-1,5mm2 | ![]() |
4 mm | 10 | 73.700.0853.0 | |||
Pin without Contacts |
4mm | 10 | 73.710.0853.0 | |||||||
Thread size | Gland type | Material | Package. | |||||||
![]() |
M 20 | Angular cover | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.350.0736.0 76.350.0736.1 76.350.0760.1 | ||||
![]() |
M 20 | Straight cover | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.352.0736.0 76.352.0736.1 76.352.0760.1 | ||||
![]() |
M 20 | Cover with clamp lever and gland | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal Metal Plastic |
10 10 10 |
76.372.0736.0 76.372.0736.1 76.372.0760.1 | ||||
![]() |
Open base with clamp lever | Metal Plastic |
10 10 |
|||||||
![]() |
Open angular base with clamp lever | Metal Plastic |
10 10 |
76.321.0729.0 76.321.0753.0 | ||||||
![]() |
M 20 | Closed base with clamp lever | 0 with gland 1 with thread for gland 1 with thread for gland |
Metal |
10 10 10 |
76.322.0736.0 76.322.0736.1 76.322.0760.1 |
Contacts for clamp version
|
|
||||||||||||||||||||||||||||||||||||
Socket contac![]() |
|||||||||||||||||||||||||||||||||||||
pin contac![]() |
Accessories | |
---|---|
Catalogue number | Catalogue number |
![]() |
![]() |
Protection cover | Protection cover |
without gasket for pin | without gasket for socket |
Plastic 07.417.6753.0 Metal 07.417.6729.0 |
Plastic 07.417.6853.0 Meta 07.417.6829.0 |
Assembly holes for closed version | ![]() |
