Лічильник імпульсів EC2401
  • Лічильник імпульсів EC2401
  • Лічильник імпульсів EC2401

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: Sisel

Лічильник імпульсів EC2401

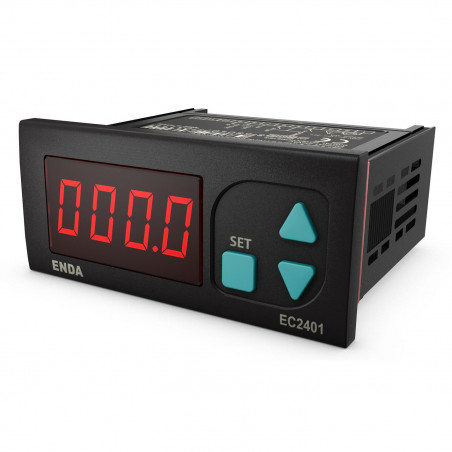

Pulse counter EC2401

The EC2401 is a very basic version of the pulse counter. It has a single display showing the counted value. It can be properly calibrated in relation to the electrical impulses supplied by the user in the programming menu. The most basic version only has an input for a 3-wire sensor or a normally open contact. Additionally, the EC2401 meter can have a built-in possibility of communication via RS485. This is an additional option that must be selected when ordering.

The 35x77mm casing is a standard maintained by many manufacturers of similar devices, so they can be used interchangeably.

As standard, the manufacturer provides 90-250VAC or 10-30VDC / 8-24VAC or 24VAC only. Regardless of the power supply of the meter, it has an additional 12VDC output to power the external sensor.

The housing is made of a self-extinguishing plastic and an additional gasket in the package provides IP65 from the front for panel mounting.

  • Easy to use
  • 4 digits indicator
  • Easy to use front panel keypad
  • Input frequency can be selected
  • Parameter access protection
  • RS485 Modbus communication interface
  • CE marked according to European Norms
Менше
Читати більше

Відправити запит

Ви зацікавлені у цьому продукті? Вам потрібна додаткова інформація або індивідуальні розцінки?

Зв'яжіться з нами
Запитайте про продукт close
Дякуємо за надіслане повідомлення. Ми відповімо якомога швидше.
Запитайте про продукт close
Огляд
Надіслати запит

Додати до списку бажань

Ви повинні увійти в систему

Pulse counter EC2401

The EC2401 is a very basic version of the pulse counter. It has a single display showing the counted value. It can be properly calibrated in relation to the electrical impulses supplied by the user in the programming menu. The most basic version only has an input for a 3-wire sensor or a normally open contact. Additionally, the EC2401 meter can have a built-in possibility of communication via RS485. This is an additional option that must be selected when ordering.

The 35x77mm casing is a standard maintained by many manufacturers of similar devices, so they can be used interchangeably.

As standard, the manufacturer provides 90-250VAC or 10-30VDC / 8-24VAC or 24VAC only. Regardless of the power supply of the meter, it has an additional 12VDC output to power the external sensor.

The housing is made of a self-extinguishing plastic and an additional gasket in the package provides IP65 from the front for panel mounting.

  • Easy to use
  • 4 digits indicator
  • Easy to use front panel keypad
  • Input frequency can be selected
  • Parameter access protection
  • RS485 Modbus communication interface
  • CE marked according to European Norms
