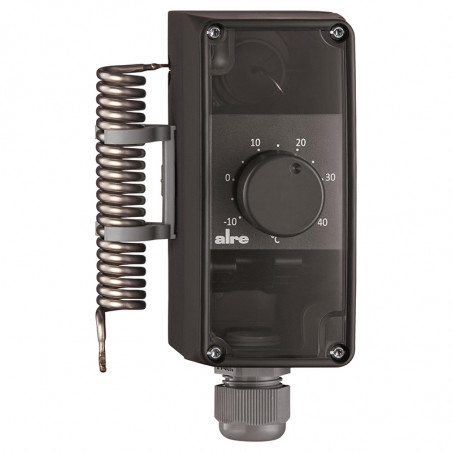

Промисловий настінний термостат RTKSA
  • Промисловий настінний термостат RTKSA

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: ALRE

Промисловий настінний термостат RTKSA

Application

RTKSA plant room thermostats were specially developed for use in industrial halls, exhibition halls, air halls and greenhouses. When used as a frost protection controller, the higher tolerances at the end of the scale must be observed.

Technical data

Colour: Anthracite grey (similar to RAL7016), front side transparent
Sensor material: V4A
Max. sensor temperature Top scale value +15%
Max. head temperature: 50 °C
Permissible atmospheric humidity: Max. 95% rel. humidity, non-condensing
Operating voltage: none
Max. switching current: NC contact:
16 (2.5) A at 230 VAC +10%
0.25 A at 230 VDC +10%
NO contact:
6.3 (2.5) A at 230 VAC +10%
0.25 A at 230 VDC +10%
Min. switching current: Min. 100 mA at 24 V (AC/DC)
Max. switching voltage: 230 VAC 50/60 Hz, 230 VDC
Min. switching voltage: 24 VAC/50 Hz, 24 VDC
Switching element: microswitch
Switching contact: toggler, potential-free
Control function: heating or cooling
Hysteresis: 1.3 K
Electrical connection: Push-in terminals
Mounting/attachment: wall mounting
Protection class: I
Protection rating: IP 54 (optionally IP 65)
Safety and EMC: In accordance with DIN EN 60730 (VDE 0631)
Sensor: liquid-filled capillary
General features: Scale: degrees Celsius
Type Item no. Control range Hysteresis Features
RTKSA-100.010 KA010000 −10…+40 °C 1.3 K TR, external setting
RTKSA-101.010 KA010100 −10…+40 °C 1.3 K TW, internal setting
RTKSA-100.110 KA010001 0…+50 °C 1.3 K TR, external setting
RTKSA-101.110 KA010101 0…+50 °C 1.3 K TW, internal setting

TR = temperature controller, TW = temperature monitor

Type comparison (old/new type)

Old alre types Control range Hysteresis New alre types Control range Hysteresis
JET-40 0…+35 °C 1 K RTKSA-100.010 −10…+40 °C 1.3 K
JET-40F 0…+35 °C 1 K RTKSA-101.010 −10…+40 °C 1.3 K
JET-41 0…+70 °C 2 K RTKSA-100.110 0…+50 °C 1.3 K
JET-41F 0…+70 °C 2 K RTKSA-101.110 0…+50 °C 1.3 K

TR = temperature controller, TW = temperature monitor
