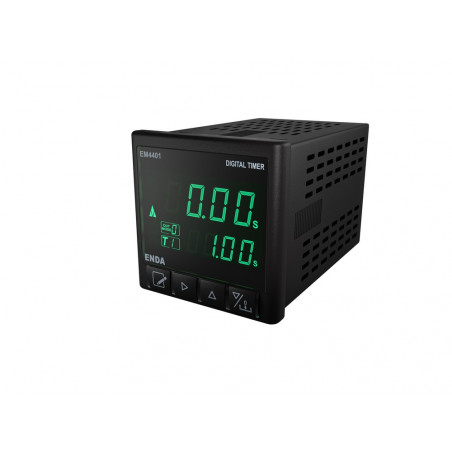

ENDA EM4401 DIGITAL TIMER

ENDA EM4401 DIGITAL TIMER

Thank you for choosing ENDA EM4401 Digital Timer.

  • 48x48mm sized.
  • Easy to use.
  • 9 Level time intervals. (Between 0-99.99sec. and 0-9999 hours).
  • Sensor type selection (PNP, NPN).
  • Selectable up / down counting direction.
  • Adjustable input signal pulse and void duration.
  • Memory option can be selected.
  • 12 Different output mode.
  • Two N.O. contact output and two NPN 50mA SSR output with current limiting.
  • Display brightness can be adjusted.
  • 2x4 line display.
  • Parameter security can be adjusted.
  • Easy installation and service operations with terminal plug-in connectors.
  • Rs485 ModBus communication input. (Specify at order).
  • CE marked according to European Norms

TECHNICAL SPECIFICATIONS

Dimensions 48x48x87mm
Timescale range Programmable (0 - 99,99 s; 0 - 9999 h)
Accuracy ±0,01% ±1ms
Start at the time of giving the impulse
Output function 12 selectable output functions
Exit 1 1 relay (250VAC, 2A for ohmic loads, NO)
Exit II Open collector type (S. S. OUT), max 30 V DC, 100 mA
Reset By giving an impulse to the "reset" input
Supply voltage 90-250V AC or 24V AC or 9-30V DC / 7-24V AC
Power consumption Maks. 5VA
Working temperature 0... 50°C
Electrical installation Panel mounting, screw terminals
Weight 230g

List of models:

Symbol Supply voltage RS485
EM4401-UV 90-250 VAC lack
EM4401-LV 7-24VAC/9-30VDC lack
EM4401-UV-RS 90-250 VAC is
EM4401-LV-RS 7-24VAC/9-30VDC is
