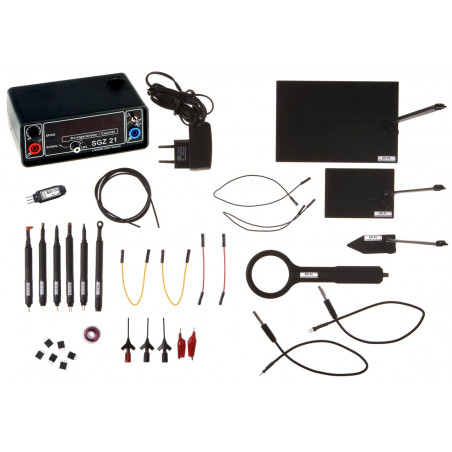

The E1 is a set of EMC tools used for EMI suppression in printed circuit boards during the development phase. The developer can use the E1 set to quickly identify the causes of burst and ESD interference. This allows the developer to design suitable measures to solve the causes of the interference. It can also be used to test the effectiveness of the measures taken. The E1 test set-up is small and fits easily on a developer’s desk. The E1 set user manual describes EMC mechanisms and provides detailed descriptions of basic measuring strategies for interference suppression in printed circuit boards. The E1 set includes a generator to generate burst and ESD disturbances.
Scope of delivery
Technical parameters
S21 optical sensor | |
---|---|
Transmission range | DC...10 Mbps |
Optical fibre connector | 2.2 mm Ø |
Supply voltage | (3-5) V |
Current input | 10 mA |
SGZ 21 burst Generator | |
Pulse parameter | |
Rise time | ca. 2 ns |
Tail time | ca. 10 ns |
Peak values | ca. 0...1500 V |
Optical input | |
Optical fiber | 2.2 mm |
Max. frequency | 5 MHz |
Min. pulse width | 100 ns |
Supply voltage | 12 V / 200 mA |
Sizes (L x W x H) | (154 x 100 x 62) mm |
