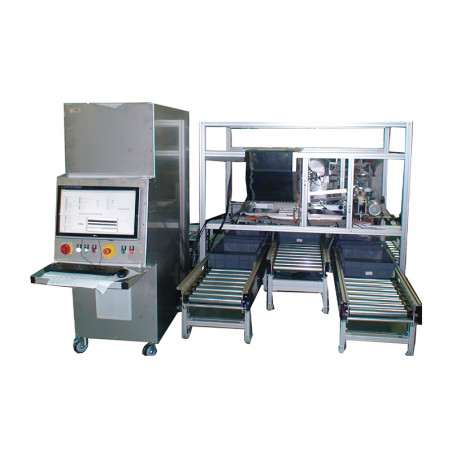

Тестер зору для поршневих тяг

Vision tester for piston rods

Tester for vision testing of piston rods, gas springs with diameters of 6, 8, 10, 14 mm and lengths from 50 to 550 mm.


Technical data

Vision system
Tested piston rods Ø6, Ø8, Ø10, Ø14 mm
Power supply
 230 VAC, 50 Hz
Power supply tolerance +10% ÷ -10%
Power connection 3 x 4 mm²
Maximum main current ≤ 20 A
Output power 2 kW
Piston rod length 50 ÷ 550 mm
Surface layer hardness
 HV0,1 ≥ 550
Color
 gray-black
Roughness max. Ra0,1 (after polishing)
Maximum number of simultaneously tested piston rods 10 pcs.
Number of measuring fields
 10 pcs.
Cycle of work
 every 6 seconds - piston rod 250 mm
Pressure connection 6 atm, pipe Ø8mm
Operating mode
 24 h/day
Environmental conditions operating temperature: 10 °C ÷ 35 °C
humidity: 10% ÷ 75%
Dimensions of the control cabinet (H x W x D)
 1727 x 600 x 1532 [mm]
Overall dimensions with polisher and feeders (H x W x D)
 1800 x 4508 x 4210 [mm]
Feeders
Number of feeders
 2 pcs.
Power supply
 from the vision system control cabinet
Connection of pneumatics
 from vision system
Number of piston rods in the feeder
 approx. 400 pcs. Ø8
Maximum piston rod length
 550 mm
Polisher
Polisher symbol
 LMCL-01
Power supply
 3x400 VAC
Type of polisher
 centreless for steel round shafts
Tape
 polishing with abrasive belts (dry, recommended belt length - 3000 mm)
Body
 provides vibration elimination and dimensional accuracy
Roller feed
 by means of clamping of an angled rubber roller
Loading workpieces for polishing from the automatic feeder
Adjustments for changing process parameters feed rollers, centering, camber, clamping
Speed
 approx. 2-5 m/min
