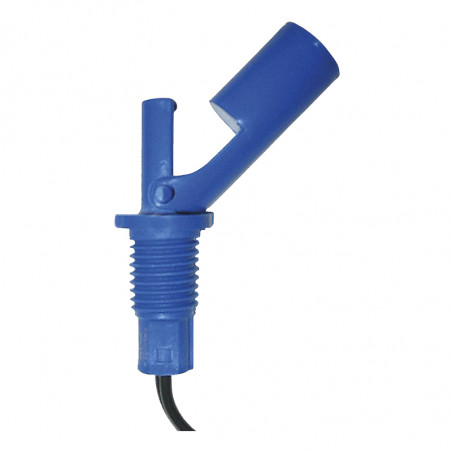

Sensor construction allows for low and high level detection by turning sensor for 180° Sensors can be mounted from the inside or outside of the container, there is also an universal version available. They are available in nylon, cast iron, polypropylene filled with glass fibre casings. LRN sensors can be used in chemical, petrochemical, food and control processes.
Type | Assembly method | Casing | Operation temperature range | Load | Seal | Assembly method | Cable | Drawing nr |
---|---|---|---|---|---|---|---|---|
LRNH31S42 | horizontal | nylon | -30...130°C | SPST250Vrms/1A | silicone | universal | 2m | 1 |
LRNH41021 | horizontal | iron cast | -30...130°C | SPST 250Vrms/1A | none | 1/2” NPT outside | 0,5m | 2 |
LRNR31N01 | angular | nylon | -30...130°C | SPST250Vrms/1A | nitrile | Ml 6x2 inside | 0,5m | 3 |
LRNV31S42 | vertical | nylon | -30...130°C | SPST250Vrms/1A | silicone | universal | 2m | 4 |
Drawing 1![]() |
Drawing 2![]() |
Drawing 3![]() |
Drawing 4![]() |
