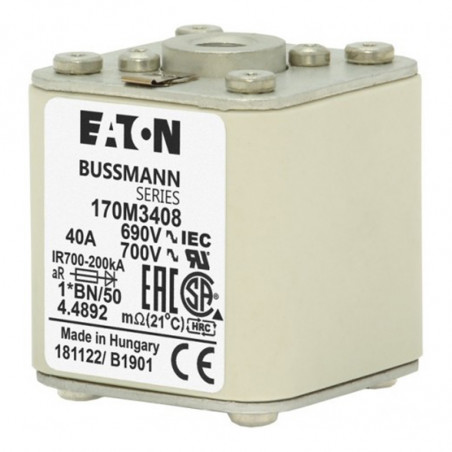

Швидкі запобіжники гвинтові
  • Швидкі запобіжники гвинтові

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: EATON Bussmann

Швидкі запобіжники гвинтові

Table. 660 V/700 VAC 40-2000A - SIZE1*, 1, 2, 3 aR Breaking capacity 200kARMS

Size IN
[A]		 I2t
before arc
[A2s]		 I2t
@660 V
[A2s]		 Power loss
[W]		 Type -B/-
visual indicator		 Type -BKN/-
indicator for micro-relay type T		 Type -G/-
visual indicator		 Type -GKN/-
indicator for micro-relay type k		 Quantity in package Package weight
[kg]
1* 40 40 270 9 170M3408 170M3458 170M3508 170M3558 10 2,4
50 77 515 11 170M3409 170M3459 170M3509 170M3559 (-B/-)
63 115 770 14 170M3410 170M3460 170M3510 170M3560
80 185 1250 18 170M3411 170M3461 170M3511 170M3561 10 2,4
100 360 2450 21 170M3412 170M3462 170M3512 170M3562 (-G/-)
125 550 3700 26 170M3413 170M3463 170M3513 170M3563
160 1100 7500 30 170M3414 170M3464 170M3514 170M3564 6 1,62
200 2200 15000 35 170M3415 170M3465 170M3515 170M3565 (-BKN/-)
250 4200 28500 40 170M3416 170M3466 170M3516 170M3566
315 7000 46500 50 170M3417 170M3467 170M3517 170M3567
350 10000 68500 55 170M3418 170M3468 170M3518 170M3568 6 1,62
400 15000 105000 60 170M3419 170M3469 170M3519 170M3569 (-GKN/-)
450 21000 140000 65 170M3420 170M3470 170M3520 170M3570
500 27000 180000 70 170M3421 170M3471 170M3521 170M3571
550 34000 230000 75 170M3422 170M3472 170M3522 170M3572
630 48500 325000 80 170M3423 170M3473 170M3523 170M3573
1 200 1650 11500 45 170M4408 170M4458 170M4508 170M4558 6 2,4
250 3100 21000 55 170M4409 170M4459 170M4509 170M4559 6 2,4
315 6200 42000 58 170M4410 170M4460 170M4510 170M4560 6 2,4
350 8500 59000 60 170M4411 170M4461 170M4511 170M4561 6 2,4
400 13500 91500 65 170M4412 170M4462 170M4512 170M4562 6 2,4
450 17000 120000 70 170M4413 170M4463 170M4513 170M4563 6 2,4
500 25000 170000 72 170M4414 170M4464 170M4514 170M4564 6 2,4
550 34000 230000 75 170M4415 170M4465 170M4515 170M4565 6 2,4
630 52000 350000 80 170M4416 170M4466 170M4516 170M4566 6 2,4
700 69500 465000 85 170M4417 170M4467 170M4517 170M4567 6 2,4
800 105000 725000 95 170M4418 170M4468 170M4518 170M4568 6 2,4
9002) 155000 8500002) 100 170M4419 170M4469 170M4519 170M4569 6 2,4
2 400 11000 74000 65 170M5408 170M5458 170M5508 170M5558 6 3,3
450 15500 105000 70 170M5409 170M5459 170M5509 170M5559 6 3,3
500 21500 145000 75 170M5410 170M5460 170M5510 170M5560 6 3,3
550 28000 190000 80 170M5411 170M5461 170M5511 170M5561 6 3,3
630 41000 275000 90 170M5412 170M5462 170M5512 170M5562 6 3,3
700 60500 405000 95 170M5413 170M5463 170M5513 170M5563 6 3,3
800 86000 575000 105 170M5414 170M5464 170M5514 170M5564 6 3,3
900 125000 840000 110 170M5415 170M5465 170M5515 170M5565 6 3,3
1000 180000 1250000 115 170M5416 170M5466 170M5516 170M5566 6 3,3
1100 245000 1600000 120 170M5417 170M5467 170M5517 170M5567 6 3,3
1250 365000 2400000 130 170M5418 170M5468 170M5518 170M5568 6 3,3
3 500 14000 95000 95 170M6408 170M6458 170M6508 170M6558 3 2,52
550 19500 135000 100 170M6409 170M6459 170M6509 170M6559 3 2,52
630 31000 210000 105 170M6410 170M6460 170M6510 170M6560 3 2,52
700 44500 300000 110 170M6411 170M6461 170M6511 170M6561 3 2,52
800 69500 465000 115 170M6412 170M6462 170M6512 170M6562 3 2,52
900 100000 670000 120 170M6413 170M6463 170M6513 170M6563 3 2,52
1000 140000 945000 125 170M6414 170M6464 170M6514 170M6564 3 2,52
1100 190000 1300000 130 170M6415 170M6465 170M6515 170M6565 3 2,52
1250 290000 1950000 140 170M6416 170M6466 170M6516 170M6566 3 2,52
1400 370000 2450000 155 170M6417 170M6467 170M6517 170M6567 3 2,52
1500 460000 3100000 160 170M6418 170M6468 170M6518 170M6568 3 2,52
1600 580000 390000 160 170M6419 170M6469 170M6519 170M6569 3 2,52
18001) 880000 52500002) 165 170M6420 170M6470 170M6520 170M6570 3 2,52
20002) 1150000 63500002) 175 170M6421 170M6471 170M6521 170M6571
Caution
1)- 600V,2)- 550V
Size
[mm]		 A B D E F F1) G H
1* 50 51 59 45 M8 5/16” - 18 UNC-2B 5 17
1 50 51 69 53 M8 5/16” - 18 UNC-2B 8 20
2 50 51 77 61 M12 3/8” - 16 UNC-2B 10 24
3 51 53 92 76 M12 1/2” - 13 UNC-2B 10 30
Dimensions [mm]
Caution
1)– consider fuses type -G/- and -GKN/-


Table. 1000 VAC 50-1400A - SIZE1*, 1, 2, 3 aR Breaking capacity 150kARMS

Size UN
[V]		 IN
[A]		 I2t
before arc
[A2s]		 I2t
@1000 V
[A2s]		 Power loss
[W]		 Type -BKN-
indicator for micro-relay type k		 Type -GKN-
indicator for micro-relay type k		 Quantity in package Package weight
[kg]
1* 1000 50 135 815 20 170M3951 170M3921 6 2,35
1000 63 215 1300 25 170M3952 170M3923 6 2,35
1000 80 460 2750 30 170M3953 170M3923 6 2,35
1000 100 860 5100 35 170M3954 170M3924 6 2,35
1000 125 1450 8600 40 170M3955 170M3925 6 2,35
1000 160 2850 17500 45 170M3956 170M3926 6 2,35
1000 200 4950 29500 50 170M3957 170M3927 6 2,35
1000 250 9550 57000 55 170M3958 170M3928 6 2,35
1000 315 21500 130000 65 170M3959 170M3929 6 2,35
1000 350 29000 175000 70 170M3960 170M3930 6 2,35
1000 400 42000 250000 75 170M3961 170M3931 6 2,35
1 1000 160 2200 13500 50 170M4951 170M4921 6 3,5
1000 200 4150 24500 55 170M4952 170M4922 6 3,5
1000 250 7750 46000 65 170M4953 170M4923 6 3,5
1000 315 16500 98500 70 170M4954 170M4924 6 3,5
1000 350 21500 130000 75 170M4955 170M4925 6 3,5
1000 400 31000 185000 80 170M4956 170M4926 6 3,5
1000 450 44500 26500 85 170M4957 170M4927 6 3,5
1000 500 63000 375000 90 170M4958 170M4928 6 3,5
1000 550 84500 500000 95 170M4959 170M4929 6 3,5
1000 630 125000 755000 100 170M5960 170M4930 6 3,5
2 1000 250 6750 40000 65 170M5952 170M5922 3 2,5
1000 315 13500 81500 75 170M5953 170M5923 3 2,5
1000 350 16500 99000 80 170M5954 170M5924 3 2,5
1000 400 26000 155000 85 170M5955 170M5924 3 2,5
1000 450 35500 21000 90 170M5956 170M5925 3 2,5
1000 500 49500 295000 95 170M5957 170M5926 3 2,5
1000 550 66000 390000 100 170M5958 170M5927 3 2,5
1000 630 93500 555000 110 170M5959 170M5928 3 2,5
3 1000 700 130000 770000 115 170M5960 170M5929 2 2,5
1000 800 190000 115000 125 170M5961 170M5930 2 2,5
1000 315 9200 54500 90 170M8600 170M8500 2 2,5
1000 350 13000 77500 95 170M8601 170M8501 2 2,5
1000 400 19000 115000 105 170M8602 170M8502 2 2,5
1000 450 27000 160000 107 170M8603 170M8503 2 2,5
1000 500 37500 225000 110 170M8604 170M8504 2 2,5
1000 550 52000 310000 115 170M8605 170M8505 2 2,5
1000 630 82500 490000 120 170M8606 170M8506 2 2,5
1000 700 115000 700000 125 170M8607 170M8507 2 2,5
1000 800 170000 1050000 135 170M8608 170M8508 2 2,5
1000 900 250000 1500000 145 170M8609 170M8509 2 2,5
1000 1000 340000 2050000 150 170M8610 170M8510 2 2,5
1000 1100 460000 2750000 155 170M8611 170M8511 2 2,5
3 1000 1250 575000 3400000 175 170M8612** 170M8512** 1 1,5
900 1400 795000 4200000 185 170M8613** 170M8513** 1 1,5
Caution
**) - Fuses size 3BKN/90 or 3GKN/90
Size
[mm]		 A B Max
D		 E F F1) Min
G		 H
1*BKN/75+GKN/75 73 74 61 43 M8 5/16” -18UNC-2B 5 18
1BKN/75+GKN/75 74 74 69 52 M8 5/16” -18UNC-2B 8 20
2BKN/75+GKN/75 73 74 77 59 M10 3/8” -16 UNC-2B 10 24
3BKN/75+GKN/75 73 75 92 74 M12 1/2” -13 UNC-2B 10 30
3BKN/90+GKN/90 80,3 91,4 92 74 M12 1/2” -13 UNC-2B 10 30
Caution
1)– consider fuses type GKN
Dimensions [mm]

Table. 1250 VAC/ 1300 V 50-1400A - SIZE1*, 1, 2, 3 aR Breaking capacity 100kARMS

Size IN
[A]		 I2t
before arc
[A2s]		 I2t
@
1000 V
[A2s]		 I2t
@
1250 V
[A2s]		 Power loss
[W]		 Type -BK/75
indicator for micro-relay type k		 Type -BK/80
indicator for micro-relay type k		 Type -BK/90
indicator for micro-relay type k		 Type -Gk/75
indicator for micro-relay type k		 Type -Gk/90
indicator for micro-relay type k
1* 50 135 815 1100 15 170M3388 170M3438   170M3488
63 215 1300 1750 20 170M3389 170M3439   170M3489
80 420 2500 3350 25 170M3390 170M3440   170M3490
100 750 4450 5950 30 170M3391 170M3441   170M3491
125 1450 9000 11500 35 170M3392 170M3442   170M3492
160 2600 16000 21000 40 170M3393 170M3443   170M3493
200 5150 31000 41000 45 170M3394 170M3444   170M3494
250 9200 54500 73000 55 170M3395 170M3445   170M3495
315 18500 115000 150000 60 170M3396 170M3446   170M3496
350 27000 165000 220000 65 170M3397 170M3447   170M3497
400 53000 265000 335000 70   170M3448
1 160 1900 11500 15500 45 170M4388 170M4438   170M4488
200 3800 22500 30000 50 170M4389 170M4439   170M4489
250 7750 46000 61500 60 170M4390 170M4440   170M4490
315 15000 90000 120000 65 170M4391 170M4441   170M4491
350 20000 125000 165000 70 170M4392 170M4442   170M4492
400 29500 175000 235000 75 170M4393 170M4443   170M4493
450 42000 250000 335000 80 170M4394 170M4444   170M4494
500 69500 340000 435000 85 170M43951) 170M4445   170M44951)
550 95000 465000 590000 95 170M43962) 170M4446   170M44962)
630 130000 660000   100 170M43972) 170M4447   170M44972)
2 250 6500 38500 51500 65 170M5388 170M5438   170M5588
280 9350 55500 74500 70 170M5389 170M5439   170M5589
315 13000 77500 105000 75 170M5390 170M5440   170M5590
350 16500 97500 135000 80 170M5391 170M5441   170M5591
400 23000 140000 180000 85 170M5392 170M5442   170M5592
450 34000 205000 270000 90 170M5393 170M5443   170M5593
500 48000 285000 380000 95 170M5394 170M5444 170M5494 170M5594 170M5644
550 62000 370000 495000 100 170M5395 170M5445 170M5495 170M5595 170M5645
630 115000 575000 730000 110 170M53961) 170M5446 170M5496 170M55961) 170M5646
700 160000 795000 1050000 115 170M53972) 170M54471) 170M5497 170M55972) 170M5647
800 245000 1200000 1550000 120 170M53982) 170M54482) 170M5498 170M55982) 170M5648
9001) 360000 1750000   125     170M54991)   170M56491)
10001) 480000 2350000   135     170M55001)   170M56501)
3 315 9500 58000 77500 85 170M6338 170M6538   170M6588
350 13500 81500 110000 90 170M6339 170M6539   170M6589
400 19500 120000 160000 95 170M6340 170M6540   170M6590
450 31000 185000 245000 100 170M6341 170M6541   170M6591
500 39000 235000 310000 105 170M6342 170M6542   170M6592
550 55000 325000 435000 110 170M6343 170M6543   170M6593
630 83500 495000 665000 115 170M6344 170M6544 170M6494 170M6594 170M6644
700 115000 705000 940000 120 170M6345 170M6545 170M6495 170M6595 170M6645
800 205000 995000 1300000 125 170M63461) 170M6546 170M64963) 170M65961) 170M66463)
900 305000 1500000 1900000 130 170M63472) 170M65471) 170M64973) 170M65972) 170M66473)
1000 450000 2150000 2750000 135 170M63482) 170M65481) 170M64983) 170M65982) 170M66483)
1100 575000 2800000 3600000 140 170M63492) 170M65492) 170M64993) 170M65992) 170M66493)
12501),/ 810000 3950000   145     170M65001)   170M66501)
14001) 1250000 6000000   150     170M65011)   170M66511)
Caution
1)– 1100V,2)– 1000V,3)– 1250V
Size
[mm]		 Type A B D E F F1) G H
1* BK + GK/75 74 75 59 45 M8 5/16” - 18 UNC-2B 5 17
1* BK/80 80 81 59 45 M8   5 17
1 BK + GK/75 74 75 69 53 M8 5/16” - 18 UNC-2B 8 20
1 BK/80 80 81 69 53 M8   8 20
2 BK + GK/75 74 75 77 61 M10 3/8” - 16 UNC-2B 10 24
2 BK/80 80 81 77 61 M10   10 24
2 BK + GK/90 80 91 77 61 M10 3/8” - 16 UNC-2B 10 24
3 BK + GK/75 74 76 92 76 M12 1/2” - 13 UNC-2B 10 30
3 BK/80 81 83 92 76 M12   10 30
3 BK + GK/90 81 91 92 76 M12 1/2” - 13 UNC-2B 10 30

Caution
1) - consider fuses type -GK/-
Dimensions [mm]
Менше
Читати більше

Відправити запит

Ви зацікавлені у цьому продукті? Вам потрібна додаткова інформація або індивідуальні розцінки?

Зв'яжіться з нами
Запитайте про продукт close
Дякуємо за надіслане повідомлення. Ми відповімо якомога швидше.
Запитайте про продукт close
Огляд
Надіслати запит

Додати до списку бажань

Ви повинні увійти в систему

Table. 660 V/700 VAC 40-2000A - SIZE1*, 1, 2, 3 aR Breaking capacity 200kARMS

Size IN
[A]		 I2t
before arc
[A2s]		 I2t
@660 V
[A2s]		 Power loss
[W]		 Type -B/-
visual indicator		 Type -BKN/-
indicator for micro-relay type T		 Type -G/-
visual indicator		 Type -GKN/-
indicator for micro-relay type k		 Quantity in package Package weight
[kg]
1* 40 40 270 9 170M3408 170M3458 170M3508 170M3558 10 2,4
50 77 515 11 170M3409 170M3459 170M3509 170M3559 (-B/-)
63 115 770 14 170M3410 170M3460 170M3510 170M3560
80 185 1250 18 170M3411 170M3461 170M3511 170M3561 10 2,4
100 360 2450 21 170M3412 170M3462 170M3512 170M3562 (-G/-)
125 550 3700 26 170M3413 170M3463 170M3513 170M3563
160 1100 7500 30 170M3414 170M3464 170M3514 170M3564 6 1,62
200 2200 15000 35 170M3415 170M3465 170M3515 170M3565 (-BKN/-)
250 4200 28500 40 170M3416 170M3466 170M3516 170M3566
315 7000 46500 50 170M3417 170M3467 170M3517 170M3567
350 10000 68500 55 170M3418 170M3468 170M3518 170M3568 6 1,62
400 15000 105000 60 170M3419 170M3469 170M3519 170M3569 (-GKN/-)
450 21000 140000 65 170M3420 170M3470 170M3520 170M3570
500 27000 180000 70 170M3421 170M3471 170M3521 170M3571
550 34000 230000 75 170M3422 170M3472 170M3522 170M3572
630 48500 325000 80 170M3423 170M3473 170M3523 170M3573
1 200 1650 11500 45 170M4408 170M4458 170M4508 170M4558 6 2,4
250 3100 21000 55 170M4409 170M4459 170M4509 170M4559 6 2,4
315 6200 42000 58 170M4410 170M4460 170M4510 170M4560 6 2,4
350 8500 59000 60 170M4411 170M4461 170M4511 170M4561 6 2,4
400 13500 91500 65 170M4412 170M4462 170M4512 170M4562 6 2,4
450 17000 120000 70 170M4413 170M4463 170M4513 170M4563 6 2,4
500 25000 170000 72 170M4414 170M4464 170M4514 170M4564 6 2,4
550 34000 230000 75 170M4415 170M4465 170M4515 170M4565 6 2,4
630 52000 350000 80 170M4416 170M4466 170M4516 170M4566 6 2,4
700 69500 465000 85 170M4417 170M4467 170M4517 170M4567 6 2,4
800 105000 725000 95 170M4418 170M4468 170M4518 170M4568 6 2,4
9002) 155000 8500002) 100 170M4419 170M4469 170M4519 170M4569 6 2,4
2 400 11000 74000 65 170M5408 170M5458 170M5508 170M5558 6 3,3
450 15500 105000 70 170M5409 170M5459 170M5509 170M5559 6 3,3
500 21500 145000 75 170M5410 170M5460 170M5510 170M5560 6 3,3
550 28000 190000 80 170M5411 170M5461 170M5511 170M5561 6 3,3
630 41000 275000 90 170M5412 170M5462 170M5512 170M5562 6 3,3
700 60500 405000 95 170M5413 170M5463 170M5513 170M5563 6 3,3
800 86000 575000 105 170M5414 170M5464 170M5514 170M5564 6 3,3
900 125000 840000 110 170M5415 170M5465 170M5515 170M5565 6 3,3
1000 180000 1250000 115 170M5416 170M5466 170M5516 170M5566 6 3,3
1100 245000 1600000 120 170M5417 170M5467 170M5517 170M5567 6 3,3
1250 365000 2400000 130 170M5418 170M5468 170M5518 170M5568 6 3,3
3 500 14000 95000 95 170M6408 170M6458 170M6508 170M6558 3 2,52
550 19500 135000 100 170M6409 170M6459 170M6509 170M6559 3 2,52
630 31000 210000 105 170M6410 170M6460 170M6510 170M6560 3 2,52
700 44500 300000 110 170M6411 170M6461 170M6511 170M6561 3 2,52
800 69500 465000 115 170M6412 170M6462 170M6512 170M6562 3 2,52
900 100000 670000 120 170M6413 170M6463 170M6513 170M6563 3 2,52
1000 140000 945000 125 170M6414 170M6464 170M6514 170M6564 3 2,52
1100 190000 1300000 130 170M6415 170M6465 170M6515 170M6565 3 2,52
1250 290000 1950000 140 170M6416 170M6466 170M6516 170M6566 3 2,52
1400 370000 2450000 155 170M6417 170M6467 170M6517 170M6567 3 2,52
1500 460000 3100000 160 170M6418 170M6468 170M6518 170M6568 3 2,52
1600 580000 390000 160 170M6419 170M6469 170M6519 170M6569 3 2,52
18001) 880000 52500002) 165 170M6420 170M6470 170M6520 170M6570 3 2,52
20002) 1150000 63500002) 175 170M6421 170M6471 170M6521 170M6571
Caution
1)- 600V,2)- 550V
Size
[mm]		 A B D E F F1) G H
1* 50 51 59 45 M8 5/16” - 18 UNC-2B 5 17
1 50 51 69 53 M8 5/16” - 18 UNC-2B 8 20
2 50 51 77 61 M12 3/8” - 16 UNC-2B 10 24
3 51 53 92 76 M12 1/2” - 13 UNC-2B 10 30
Dimensions [mm]
Caution
1)– consider fuses type -G/- and -GKN/-


Table. 1000 VAC 50-1400A - SIZE1*, 1, 2, 3 aR Breaking capacity 150kARMS

Size UN
[V]		 IN
[A]		 I2t
before arc
[A2s]		 I2t
@1000 V
[A2s]		 Power loss
[W]		 Type -BKN-
indicator for micro-relay type k		 Type -GKN-
indicator for micro-relay type k		 Quantity in package Package weight
[kg]
1* 1000 50 135 815 20 170M3951 170M3921 6 2,35
1000 63 215 1300 25 170M3952 170M3923 6 2,35
1000 80 460 2750 30 170M3953 170M3923 6 2,35
1000 100 860 5100 35 170M3954 170M3924 6 2,35
1000 125 1450 8600 40 170M3955 170M3925 6 2,35
1000 160 2850 17500 45 170M3956 170M3926 6 2,35
1000 200 4950 29500 50 170M3957 170M3927 6 2,35
1000 250 9550 57000 55 170M3958 170M3928 6 2,35
1000 315 21500 130000 65 170M3959 170M3929 6 2,35
1000 350 29000 175000 70 170M3960 170M3930 6 2,35
1000 400 42000 250000 75 170M3961 170M3931 6 2,35
1 1000 160 2200 13500 50 170M4951 170M4921 6 3,5
1000 200 4150 24500 55 170M4952 170M4922 6 3,5
1000 250 7750 46000 65 170M4953 170M4923 6 3,5
1000 315 16500 98500 70 170M4954 170M4924 6 3,5
1000 350 21500 130000 75 170M4955 170M4925 6 3,5
1000 400 31000 185000 80 170M4956 170M4926 6 3,5
1000 450 44500 26500 85 170M4957 170M4927 6 3,5
1000 500 63000 375000 90 170M4958 170M4928 6 3,5
1000 550 84500 500000 95 170M4959 170M4929 6 3,5
1000 630 125000 755000 100 170M5960 170M4930 6 3,5
2 1000 250 6750 40000 65 170M5952 170M5922 3 2,5
1000 315 13500 81500 75 170M5953 170M5923 3 2,5
1000 350 16500 99000 80 170M5954 170M5924 3 2,5
1000 400 26000 155000 85 170M5955 170M5924 3 2,5
1000 450 35500 21000 90 170M5956 170M5925 3 2,5
1000 500 49500 295000 95 170M5957 170M5926 3 2,5
1000 550 66000 390000 100 170M5958 170M5927 3 2,5
1000 630 93500 555000 110 170M5959 170M5928 3 2,5
3 1000 700 130000 770000 115 170M5960 170M5929 2 2,5
1000 800 190000 115000 125 170M5961 170M5930 2 2,5
1000 315 9200 54500 90 170M8600 170M8500 2 2,5
1000 350 13000 77500 95 170M8601 170M8501 2 2,5
1000 400 19000 115000 105 170M8602 170M8502 2 2,5
1000 450 27000 160000 107 170M8603 170M8503 2 2,5
1000 500 37500 225000 110 170M8604 170M8504 2 2,5
1000 550 52000 310000 115 170M8605 170M8505 2 2,5
1000 630 82500 490000 120 170M8606 170M8506 2 2,5
1000 700 115000 700000 125 170M8607 170M8507 2 2,5
1000 800 170000 1050000 135 170M8608 170M8508 2 2,5
1000 900 250000 1500000 145 170M8609 170M8509 2 2,5
1000 1000 340000 2050000 150 170M8610 170M8510 2 2,5
1000 1100 460000 2750000 155 170M8611 170M8511 2 2,5
3 1000 1250 575000 3400000 175 170M8612** 170M8512** 1 1,5
900 1400 795000 4200000 185 170M8613** 170M8513** 1 1,5
Caution
**) - Fuses size 3BKN/90 or 3GKN/90
Size
[mm]		 A B Max
D		 E F F1) Min
G		 H
1*BKN/75+GKN/75 73 74 61 43 M8 5/16” -18UNC-2B 5 18
1BKN/75+GKN/75 74 74 69 52 M8 5/16” -18UNC-2B 8 20
2BKN/75+GKN/75 73 74 77 59 M10 3/8” -16 UNC-2B 10 24
3BKN/75+GKN/75 73 75 92 74 M12 1/2” -13 UNC-2B 10 30
3BKN/90+GKN/90 80,3 91,4 92 74 M12 1/2” -13 UNC-2B 10 30
Caution
1)– consider fuses type GKN
Dimensions [mm]

Table. 1250 VAC/ 1300 V 50-1400A - SIZE1*, 1, 2, 3 aR Breaking capacity 100kARMS

Size IN
[A]		 I2t
before arc
[A2s]		 I2t
@
1000 V
[A2s]		 I2t
@
1250 V
[A2s]		 Power loss
[W]		 Type -BK/75
indicator for micro-relay type k		 Type -BK/80
indicator for micro-relay type k		 Type -BK/90
indicator for micro-relay type k		 Type -Gk/75
indicator for micro-relay type k		 Type -Gk/90
indicator for micro-relay type k
1* 50 135 815 1100 15 170M3388 170M3438   170M3488
63 215 1300 1750 20 170M3389 170M3439   170M3489
80 420 2500 3350 25 170M3390 170M3440   170M3490
100 750 4450 5950 30 170M3391 170M3441   170M3491
125 1450 9000 11500 35 170M3392 170M3442   170M3492
160 2600 16000 21000 40 170M3393 170M3443   170M3493
200 5150 31000 41000 45 170M3394 170M3444   170M3494
250 9200 54500 73000 55 170M3395 170M3445   170M3495
315 18500 115000 150000 60 170M3396 170M3446   170M3496
350 27000 165000 220000 65 170M3397 170M3447   170M3497
400 53000 265000 335000 70   170M3448
1 160 1900 11500 15500 45 170M4388 170M4438   170M4488
200 3800 22500 30000 50 170M4389 170M4439   170M4489
250 7750 46000 61500 60 170M4390 170M4440   170M4490
315 15000 90000 120000 65 170M4391 170M4441   170M4491
350 20000 125000 165000 70 170M4392 170M4442   170M4492
400 29500 175000 235000 75 170M4393 170M4443   170M4493
450 42000 250000 335000 80 170M4394 170M4444   170M4494
500 69500 340000 435000 85 170M43951) 170M4445   170M44951)
550 95000 465000 590000 95 170M43962) 170M4446   170M44962)
630 130000 660000   100 170M43972) 170M4447   170M44972)
2 250 6500 38500 51500 65 170M5388 170M5438   170M5588
280 9350 55500 74500 70 170M5389 170M5439   170M5589
315 13000 77500 105000 75 170M5390 170M5440   170M5590
350 16500 97500 135000 80 170M5391 170M5441   170M5591
400 23000 140000 180000 85 170M5392 170M5442   170M5592
450 34000 205000 270000 90 170M5393 170M5443   170M5593
500 48000 285000 380000 95 170M5394 170M5444 170M5494 170M5594 170M5644
550 62000 370000 495000 100 170M5395 170M5445 170M5495 170M5595 170M5645
630 115000 575000 730000 110 170M53961) 170M5446 170M5496 170M55961) 170M5646
700 160000 795000 1050000 115 170M53972) 170M54471) 170M5497 170M55972) 170M5647
800 245000 1200000 1550000 120 170M53982) 170M54482) 170M5498 170M55982) 170M5648
9001) 360000 1750000   125     170M54991)   170M56491)
10001) 480000 2350000   135     170M55001)   170M56501)
3 315 9500 58000 77500 85 170M6338 170M6538   170M6588
350 13500 81500 110000 90 170M6339 170M6539   170M6589
400 19500 120000 160000 95 170M6340 170M6540   170M6590
450 31000 185000 245000 100 170M6341 170M6541   170M6591
500 39000 235000 310000 105 170M6342 170M6542   170M6592
550 55000 325000 435000 110 170M6343 170M6543   170M6593
630 83500 495000 665000 115 170M6344 170M6544 170M6494 170M6594 170M6644
700 115000 705000 940000 120 170M6345 170M6545 170M6495 170M6595 170M6645
800 205000 995000 1300000 125 170M63461) 170M6546 170M64963) 170M65961) 170M66463)
900 305000 1500000 1900000 130 170M63472) 170M65471) 170M64973) 170M65972) 170M66473)
1000 450000 2150000 2750000 135 170M63482) 170M65481) 170M64983) 170M65982) 170M66483)
1100 575000 2800000 3600000 140 170M63492) 170M65492) 170M64993) 170M65992) 170M66493)
12501),/ 810000 3950000   145     170M65001)   170M66501)
14001) 1250000 6000000   150     170M65011)   170M66511)
Caution
1)– 1100V,2)– 1000V,3)– 1250V
Size
[mm]		 Type A B D E F F1) G H
1* BK + GK/75 74 75 59 45 M8 5/16” - 18 UNC-2B 5 17
1* BK/80 80 81 59 45 M8   5 17
1 BK + GK/75 74 75 69 53 M8 5/16” - 18 UNC-2B 8 20
1 BK/80 80 81 69 53 M8   8 20
2 BK + GK/75 74 75 77 61 M10 3/8” - 16 UNC-2B 10 24
2 BK/80 80 81 77 61 M10   10 24
2 BK + GK/90 80 91 77 61 M10 3/8” - 16 UNC-2B 10 24
3 BK + GK/75 74 76 92 76 M12 1/2” - 13 UNC-2B 10 30
3 BK/80 81 83 92 76 M12   10 30
3 BK + GK/90 81 91 92 76 M12 1/2” - 13 UNC-2B 10 30

Caution
1) - consider fuses type -GK/-
Dimensions [mm]
Менше
Читати більше
Коментарі (0)
