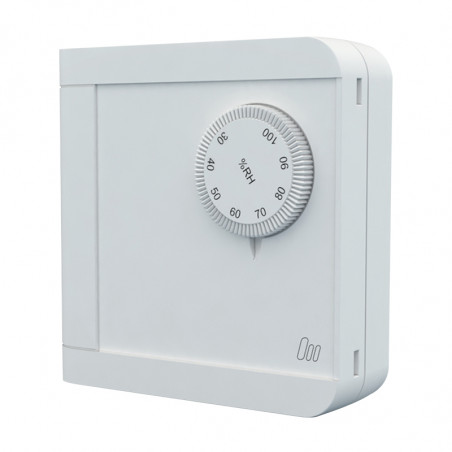

Hygroswitch – кімнатний гігростат

Hygroswitch – room hygrostat

MODEL Product Number Contact type
Hygroswitch

4204201K

 Changeover contacts: Max. 5A, with control knob
Hygroswitch-i

4204201L

 Changeover contacts: Max. 5A, scale adjustment inside the case
Hygroswitch

4204701K

 Changeover contacts (gold plated): 1...100mA
Hygroswitch-i

4204701L

 Switching contacts (gold plated): 1...100mA, scale adjustment inside the case


Technical data:

Measuring element Polyga® type, waterproof
Scale range 30…100%rh
Measuring precision >40%rh ±3%
<40%rh ±5%
Operating range 35…95%rh
Switching hysteresis ref. 50%rh…….ok. 4%rh
Load capacity of contacts (Max. 250VAC and...) 0.1…5 A load for dehumidification
0.1…2 A for moisturing
0.1…1 A for induction loads with cosφ = 0,7
Resistance 100 000 contact cycles
Operating temperature 0…60 °C
Storage temperature -40…60 °C
Temperature coefficient of the medium ref. 20°C/50%rh -0.2%rh/K
The half-life for v=2m/sec 1.2 min
Rated surge voltage 4 kV
Dent test 92 °C
Ingress Protection IP30D
Degree of contamination 2
Dimensions approx. 81x81x28
Assembly wall mounting
Weight approx. 58g
Acceptable standards
DIN EN 60730-1 ver. 12/05
DIN EN 60730-2-13 ver. 09/02
EMC - Directive 2006/95/EG
Optional microswitch with gold-plated contacts
Load capacity of contacts Max. 48 VAC and 1…100 mA


Description

The "Polyga" measuring element produced by Galltec consists of several synthetic material strips, each of which is braided with 90 fibers with a diameter of 3 μm. The fibers acquire their hygroscopic characteristics during a special process. The measuring element absorbs and releases moisture, resulting in a change in the length of the fibers which, acting on a lever system, switches a microswitch with an extremely small switching path. The measuring element reacts quickly and accurately to any change in humidity. A knob can be used to vary the humidity value at which the contacts will switch.

The hardened measuring element is located inside the housing and must be protected from dust, dirt and water. The sensors are designed for vacuum operation. Select a mounting location that prevents condensed water from entering the sensor. The mounting position is arbitrary, however, it is recommended that the housing openings be oriented in the direction of air flow.


Use

Hygroswitch is an ON/OFF controller of relative air humidity. It is used to control humidification and dehumidification in offices and rooms with electronic equipment, such as server rooms. Other areas are food storage rooms, fruit and vegetable cold rooms, greenhouses, textile industry, paper industry, printing houses and hospitals.

In case of Hygroswitch-i room hygrostats the knob for setting humidity value is located inside the housing. This location protects the humidistat against changes in settings by accidental persons.

Hygroswitch – higrostat pokojowy schemat podłączenia


The physical effect of temperature on relative humidity

For temperature variations of ±1°C relating to individual room temperatures.

  10 °C 20 °C 30 °C 50 °C
10%rh ± 0,7%rh ± 0,6%rh ± 0,6%rh ± 0,5%rh
50%rh ± 3,5%rh ± 3,2%rh ± 3,0%rh ± 2,6%rh
90%rh ± 6,3%rh ± 5,7%rh ± 5,4%rh ± 4,6%rh

Therefore, it is extremely important to maintain a constant temperature while taking humidity measurements.


Maintenance

In a clean environment the measuring element requires no special maintenance. Various aggressive media (especially those containing solvents) may cause measuring errors depending on the type and concentration of the substance. As with all measuring elements, substances which cause water-impermeable layers are harmful (e.g. resin aerosols, lacquers, soot, etc.).

Assembly

  • Do not allow the humidistat to come into direct contact with water, such as splashing during cleaning.
  • The mounting location should have humidity values similar to those of the entire room.
  • The humidistat should have airflow.


Dimensions

Hygroswitch – higrostat pokojowy wymiary
