Виробник: Galltec Mela Sensortechnik

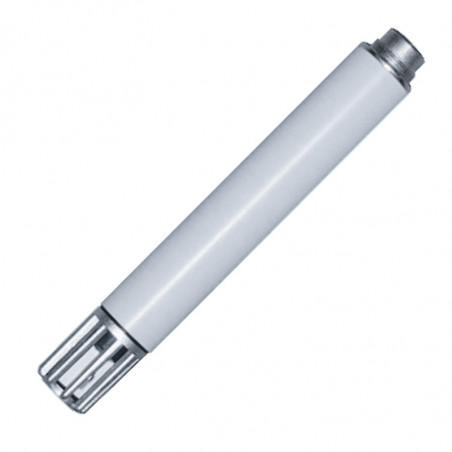

Модулі вимірювання вологості

The MELA®-sensing modules are sub-assemblies which are used to measure relative humidity, relative humidity uad temperature, and temperature in air and other nonaggressive gases.
The MELA®-sensing modules are available as printed circuit board installation modules (OEM modules). With the wide range of types, these modules can be used for a wide range of applications.

User instructions
Install the MELA®-sensing modules at a place in the room or equipment where characteristic levels of humidity occur.
The proximity of heat sources, installation on external walls or installation in a splash area are to be avoided; ensure good ventilation of the sensor element.
The specified minimum air speeds and the operating voltage-adapted current at current-output (diagram) should be
complied with. Deviations may lead to additional corrupted measurement readings because the sensor self-heats.
Dew formation and splashes do not damage the sensing modules,although corrupted measurement readings are recorded until all the moisture on and directly around the sensor element has dried up.
Dust does not cause any harm , however, it does affect dynamic performance.
If there is an excessive build-up of dust then you can unscrew the protective cap ZE16 resp. ZE04 on the series .../9 and carefully rinse the sensor head with distilled water. The element filter made of PTFE is not exchangeable.
On the series .../5 and .../6 the stainless steel sinter filter ZE21 and ZE13 can also be unscrewed and rinsed out with distilled water. Loose dirt can also be removed from the measuring element by blowing it off or by rinsing it carefully with distilled water. In order to avoid corrupted measurement readings, only screw the above mentioned sintered inox fi lter back on when they are completely dry. Do not touch the highly sensitive sensor
element.
Please consult the application instructions for the sensing elements (product info sheet no. A 1) or check with the manufacturer for further information which you need to bear in mind when using humidity sensors with capacitive sensing elements. In order to check functioning in the place of installation, we recommend that you use the MELA®-ZE31/1-type humidity standard with a ZE 33-type auxiliary adapter.

Technical Data:

Humidity
• measuring range 0...100%rh
• accuracy (MR 5...95%rh @10...40°C ±2% rh
• Additional error(<10°C, >40 °C <0,1%/K
• Reaction time
  (T90 for 1m/s) 10s
  (T 90 przy 1m/s)10s ( Series xVM) 1min
Temperature
• measuring element ( (DIN IEC 751) Pt100 class B
• measuring range temperature -30...80°C
class 1/3 DIN on reques
• accuracy
  0...1V (-17...80 °C) ±0,2 K
  0...10V (-19...80 °C) ±0,2 K
  4...20mA ±0,3K
• Additional error (<10°C, >40°C ±0,007K/ K
•Reaction time (T 90) 10s
  xVM dla 1m/s 1 min
Other data
• ambient temperature -40...80°C
• power consumption
  0...10V, 2x0...1V <5mA
  0...1V <1mA
• minimum air speed (across the sensor)
  output 2x4...20mA 1,5m/s
  4...20mA, 2x0...10V 1m/s
  0...10V, 2x0...10V 0,5m/s
• load resistance (voltage output 0...10V/0...1V) 310kW/32kW
• load (current output) zobacz wykres
• operating voltage
  current output 12...30V DC
  voltage output 0...10V 15...30V DC
  voltage output 0...1V 6...30V DC
• self-heating Pt100 (v=2 m/s in air) 0,1K



Sensors types



Type
versions
measured
variable		 output OM series
printed
circuit		 GM series
alu tube
with thread		 VM series
stainless
steel tube
with thread
F
relative
humidity		 4...20 mA FOM 3/5 FGM 3/5 FVM 3/5
0...10 V FOM 2/5 FGM 2/5 FVM 2/5
0...1 V FOM 1/5 FGM 1/5 FVM 1/5*)
C
rel.humidity
+
temp.
passive		 4...20 mA, Pt100 COM 3/5 CGM 3/5 CVM 3/5
0...10 V, Pt100 COM 2/5 CGM 2/5 CVM 2/5
0...1 V, Pt100 COM 1/5 CGM 1/5 CVM 1/5
K
rel.humidity
+
temp.
active		 2 x 4...20 mA KOM 3/5 KGM 3/5 KVM 3/5
2 x 0...10 V KOM 2/5 KGM 2/5 KVM 2/5
2 x 0...1 V KOM 1/5 KGM 1/5 KVM 1/5
T
temperature		 4...20mA TOM 3/5 TGM 3/5 TVM 3/5
0...10V TOM 2/5 TGM 2/5 TVM 2/5
0...1V TOM 1/5 TGM 1/5 TVM 1/5
weight 6g 23g 27g

Load at current output
Humidity working range

Dimensions [mm]
Series OM
Series GM
Series VM
