Виробник: KSE Lights

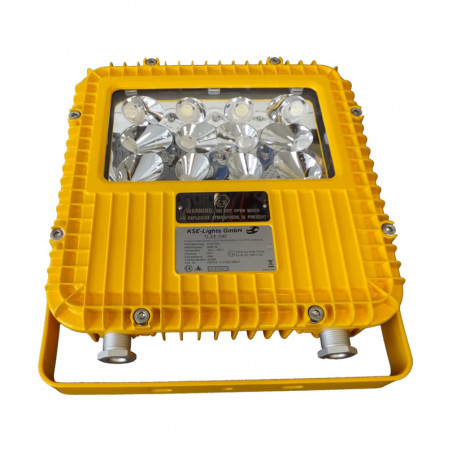

LED TL-EX LIGHT

Explosion Proof LED Light

Application

  • Ideal to be used in the oilfield, chemical industry , steel industry , power, port, Petroleum etc.
  • Harsh environment, moist area.
  • Gas explosive environment: Group IIA; IIB.
  • Zone 1, Zone2; Zone 21, Zone 22.
  • Temperature class: T1 to T6.


Characteristics

  • With its reflector which have different angles design, it efficiently utilize the light. Have a good performance of illuminance uniformity , glare free, can avoid eyestrain to the worker.
  • It adopts American CREE LED as light source, can save 60% or more on energy than metal halide lamp.
  • The housing is especially designed to dissipate heat, which increase the efficiency and lifespan of the LED, so that to ensure the 100,000 hours LED lifespan.
  • World top ranking Taiwan Meanwell LED Driver, power factor:0.98, has a highly stable performance.
  • The adjustable locking device on the bracket can tightly fix the lamp to any desired angle, making the lamp resist to harsh vibration
  • The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof , make the lamp an excellent option for all kinds of high stress environment.
  • Multiple mounting options including ceiling mounting, pendent mounting, wall mounting etc.
  • The lamp can parallel connected , no need to use the junction box.
  • 18~43V AC or 18~55VDC is optional for 25W and 40W as customer's requirement.

Approvals
ATEX: II 2 GD Ex d IIB T6 Gb, Ex tb IIC T80oC Db
Normy: GB3836.1, GB3836.2, EN60079-0: 2009, EN60079-1: 2007, EN60079-31: 2009, IEC60079-0: 2007, IEC60079-1: 2007, IEC60079-31: 2008

Light distribution curve

T echnical Specification

Imput Voltage 90 – 305V AC / 127 – 431V DC
Frequency 50/60 Hz
Anti corrosion grade WF2
Insulation Grade I
Screw Thread 3/4“
Cable Diameter 8 – 14 mm
Dimension 370 x 326 x 88 mm
Net weight 6,5 kg

Drawing of dimension

Ordering reference

Model Number Input Voltage Rated wattage (W) Light output (lm) Equivalent to
Metal Halide Lamp Electrode Less Lamp Energy Saving Lamp High Pressure
Mercury Lamp

TL-EX 1025

 90 – 305VAC
lub
127 – 431VDC		 25 3300 70W 60W 80W 80W

TL-EX 1040

 40 5508 100W 100W 130W 125W

TL-EX 1060

 60 8138 150W 135W 180W 175W

TL-EX 1080

 80 9168 175W 165W - 250W
Optional

TL-EX 1025-D

 18-43VAC
lub
18-55VDC		 25 3300 70W 60W 80W 80W

TL-EX 1040-D

 40 5508 100W 100W 130W 125W
