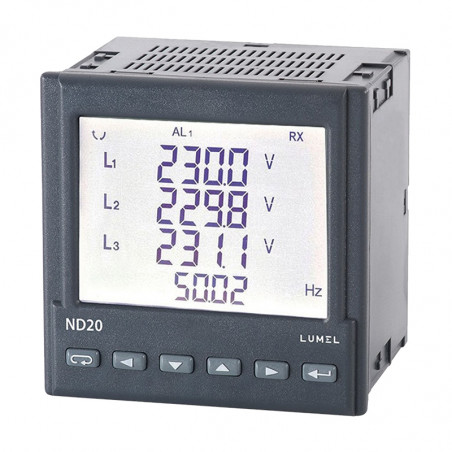

![Лічильник параметрів мережі ND20 Лічильник параметрів мережі ND20](https://www.dacpol.eu/8181-large_default/nd20-meter-of-network-parameters.jpg)
![Лічильник параметрів мережі ND20 Лічильник параметрів мережі ND20](https://www.dacpol.eu/8181-large_default/nd20-meter-of-network-parameters.jpg)
Ви повинні увійти в систему
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту
please use latin characters
Measured Quantities and Measuring Ranges
Measured Quantities and Measuring Ranges |
||||||||
---|---|---|---|---|---|---|---|---|
Measured value | Indication range | Measuring range | L1 | L2 | L3 | ∑ | Basic error | |
Current In | 1 A 5 A |
0,00...1,5 kA 0,00 ... 60 kA |
0,005...1,200 A~ 0,025...6,000 A~ | ♦ | ♦ | ♦ | ±0,2 % zak. | |
Voltage L-N | 57,7 V 230 V |
0,0 ... 230,8 kV 0,0 ... 1,012 MV |
0,6 ... 64,0 V~ 2,3 ... 253,3 V~ |
♦ | ♦ | ♦ | ±0,2% w.m. | |
Voltage L-L | 100 V 400 V |
0,0 ... 440 kV 0,0 ... 1,752 MV |
85...110 V~ 340 ... 440 V~ |
♦ | ♦ | ♦ | ±0,5% w.m. | |
Frequency | 47,0 .. 63,0 Hz | 47,0...63,0 Hz | ♦ | ♦ | ♦ | ±0,2% w.m. | ||
Active power | -9999 MW .. 0,00 W .. 9999 MW | -1,65 kW...1,4 W...1,65 kW | ♦ | ♦ | ♦ | ♦ | ±0,5% w.m. | |
Reactive power | -9999 Mvar .. 0,00 var ... 9999 Mvar | -1,65 kW...1,4 W...1,65 kW | ♦ | ♦ | ♦ | ♦ | ±0,5% zak. | |
Apparent power | 0,00 VA .. 9999 MVA | 1,4 VA ... 1,65 kVA | ♦ | ♦ | ♦ | ♦ | ±0,5% zak. | |
Power factor PF | -1 .. 0.. 1 | -1 .. 0.. 1 | ♦ | ♦ | ♦ | ♦ | ±1% zak. | |
Tangent φ | -1,2...0...1,2 | -1,2...0...1,2 | ♦ | ♦ | ♦ | ♦ | ±1% zak. | |
Cosinus φ | -1...1 | -1...1 | ♦ | ♦ | ♦ | ♦ | ±1% zak. | |
φ | -180...180 | -180...180 | ♦ | ♦ | ♦ | ±0,5% zak. | ||
Imported active energy | 0 .. 99 999 999,9 kWh | ♦ | ±0,5% zak. | |||||
Exported active energy | 0 .. 99 999 999,9 kWh | ♦ | ±0,5% zak. | |||||
Reactive inductive energy | 0 .. 99 999 999,9 kvarh | ♦ | ±0,5% zak. | |||||
Reactive capacitive energy | 0 .. 99 999 999,9 kvarh | ♦ | ±0,5% zak. | |||||
THD | 0 .. 100% | 0 .. 100% | ♦ | ♦ | ♦ | ±5% zak. |
Outputs | |
---|---|
Kind of output | Properties |
Analog output | • 1 programmable current output 0/4...20 mA |
Relay output | • programmable relay output, normally open voltageless contacts, load capacity 250 V~/0.5 A~ |
Pulse output of active or reactive energy | • 1 OC type, passive |
Digital Interface | |||
---|---|---|---|
Interface type | Transmission protocol | Mode | Baud rate |
RS-485 | MODBUS RTU | 8N2, 8E1, 8O1, 8N1 | 4,8; 9,6; 19,2; 38,4 kbit/s |
External Features | ||
---|---|---|
Readout field | LCD 3.5” screen, specialized, monochromatic with backlit | |
Weight | < 0,3 kg | |
Overall dimensions | 96 X 96 X 77 mm | panel cut-out: 92+06 X 92+06 mm |
Protection grade (acc. to EN 60529)) | from frontal side: IP65 | from terminal side: IP20 |
Rated Operating Conditions | ||
---|---|---|
Supply voltage | 85...253 V a.c. lub d.c. (40...400 Hz), 20...40 V a.c. lub d.c. (40...400 Hz) |
|
Temperature | ambient: -25...23...55°C | storage:: -30...70°C |
Relative humidity | 25...95% | inadmissible condensation |
Operating position | any | |
External magnetic field | 40...400 A/m | |
Short duration overload (1 s | voltage input: 2Un (max. 1000 V) | current input: 10 In |
Power consumption | - in the supply circuit ≤6 VA - in the voltage and current circuits ≤ 0,05 VA |
Safety and Compatibility Requirements | ||
---|---|---|
Electromagnetic compatibility | noise immunity | acc. to EN 61000-6-2 |
noise emissions | acc. to EN 61000-6-4 | |
Safety requirements | acc. to EN 61010-1 |
Connections:
Example of order:
The code ND20 - 2 2 1 1 00 E 0 means:
ND20 - meter of network parameters of ND20 type
2- current input: 5A (X/5)
2- input voltage (phase/phase-to-phase) Un =
3 x 230 V/ 400 V
1- with programmable analog output
1- supply voltage: 85...253 V a.c./ d.c.
00- standard version
E- all descriptions and user's manual in English
0- without extra quality requirements
