Unicase

Unicase Instrument Cases

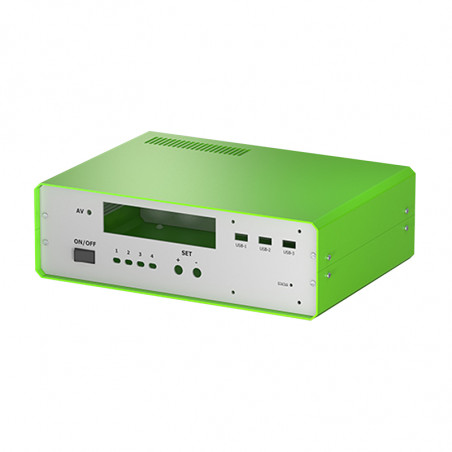

Attractive universal enclosures for desktop or portable electronics. Total access design for fast assembly and equipping. Internal assembly extrusions with four guide rail positions for mounting PCBs. Anodised aluminium front panels included.

Opis
1)Top cover
2)Base Panel
3)Assembly profile (x2)
4)Front panel (x2)
5)Rubber Foot (x4)
6)M3 x 6 mm (x16)
* Accessories
Standardowe kolory
Dimensions and drawings Unicase
Unicase
PCB Size
VersionABT
1 166 (6.53”) 159 (6.26”) 1.6 (0.06”)
2 241 (9.49”) 229 (9.01”) 1.6 (0.06”)
3 331 (13.03”) 229 (9.01”) 1.6 (0.06”)
4 242 (9.52”) 279 (10.98”) 1.6 (0.06”)
5 348 (13.70”) 279 (10.98”) 1.6 (0.06”)
6 455 (17.91”) 279 (10.98”) 1.6 (0.06”)



Part No.VersionColoursWHDd
M 55 01 110 1 RAL 7035 185 (7.28”) 65 (2.56”) 180 (7.09”) 159 (6.26”)
M 55 01 119 1 RAL 9005 185 (7.28”) 65 (2.56”) 180 (7.09”) 159 (6.26”)
M 55 02 110 2 RAL 7035 260 (10.23”) 90 (3.54”) 250 (9.84”) 229 (9.01”)
M 55 02 119 2 RAL 9005 260 (10.23”) 90 (3.54”) 250 (9.84”) 229 (9.01”)
M 55 03 110 3 RAL 7035 350 (13.78”) 110 (4.33”) 250 (9.84”) 229 (9.01”)
M 55 03 119 3 RAL 9005 350 (13.78”) 110 (4.33”) 250 (9.84”) 229 (9.01”)
M 55 04 110 4 RAL 7035 261 (10.27”) 134.5 (5.29”) 300 (11.81”) 279 (10.98”)
M 55 04 119 4 RAL 9005 261 (10.27”) 134.5 (5.29”) 300 (11.81”) 279 (10.98”)
M 55 05 110 5 RAL 7035 367 (14.45”) 134.5 (5.29”) 300 (11.81”) 279 (10.98”)
M 55 05 119 5 RAL 9005 367 (14.45”) 134.5 (5.29”) 300 (11.81”) 279 (10.98”)
M 55 06 110 6 RAL 7035 474 (18.66”) 134.5 (5.29”) 300 (11.81”) 279 (10.98”)
M 55 06 119 6 RAL 9005 474 (18.66”) 134.5 (5.29”) 300 (11.81”) 279 (10.98”)




Unicase SL


PCB Size
VersionABT
SL1 111 (4.37”) 159 (6.26”) 1.6 (0.06”)
SL2 166 (6.53”) 229 (9.01”) 1.6 (0.06”)
SL3 231 (9.09”) 229 (9.01”) 1.6 (0.06”)
SL4 231 (9.09”) 279 (10.98”) 1.6 (0.06”)



Part No.VersionColoursWHDd
M 55 11 110 SL1 RAL 7035 130 (5.12”) 50 (1.96”) 180 (7.09”) 159 (6.26”)
M 55 11 119 SL1 RAL 9005 130 (5.12”) 50 (1.96”) 180 (7.09”) 159 (6.26”)
M 55 12 110 SL2 RAL 7035 185 (7.28”) 50 (1.96”) 250 (9.84”) 229 (9.02”)
M 55 12 119 SL2 RAL 9005 185 (7.28”) 50 (1.96”) 250 (9.84”) 229 (9.02”)
M 55 13 110 SL3 RAL 7035 250 (9.84”) 50 (1.96”) 250 (9.84”) 229 (9.02”)
M 55 13 119 SL3 RAL 9005 250 (9.84”) 50 (1.96”) 250 (9.84”) 229 (9.02”)
M 55 14 110 SL4 RAL 7035 250 (9.84”) 50 (1.96”) 300 (11.81”) 279 (10.98”)
M 55 14 119 SL4 RAL 9005 250 (9.84”) 50 (1.96”) 300 (11.81”) 279 (10.98”)
