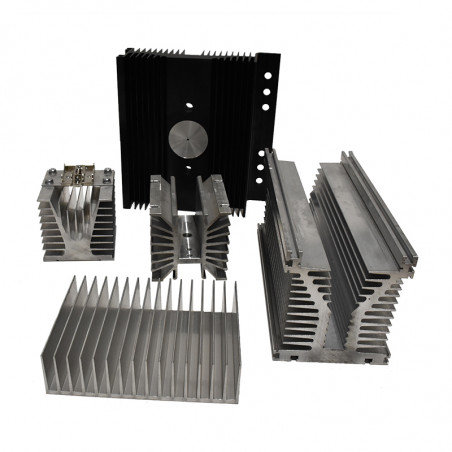

радіатори повітря
  • радіатори повітря

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: ALUTRONIC

радіатори повітря

Cross section for heat sink type RM


Example marking RM 65 (profileRM, length 65mm)
RM 65g M12 (profileRM, length 65mm, threaded hole M12)
RM 160g M20 (profileRM, length 160 mm, threaded hole M20)
Weight 9 kg/mb
Application diodes, transistor: D32, D42, D51, D52, D61, D62, D64, D66, T32, T51, T52, T61, T62, T64, T66, TS32


Cross section for heat sink type RF

Example marking RF 60 (profileRF, length 60mm)
RF 100g M6 (profileRF, length 100mm, threaded hole M6)
RF 120g M12 (profileRF, length 120mm, threaded hole M12)
Weight 13,9 kg/mb
Application diodes, transistor: D32, D42, D51, D52, D61, D62, D64, D66, T32, T51, T52, T61, T62, T64, T66, TS32, thyristor modules,



Cross section for heat sink type RD

Example marking RD 114 (profileRD, length 114mm)
RD 140 (profileRD, length 140mm)>
Weight 8,7 kg/mb
Application diodes, transistor: D63, D73, D75, D83, T63, T73, T75, T83.



Cross section for heat sink type RP

Example marking RP 127 (profileRP, length 127mm)
Weight 7 kg/mb
Application diodes, transistor: D51, D52, T51, T52.



Cross section for heat sink type RS

Example marking RS 152 (profileRS, length 152mm)
Weight 9,3 kg/mb
Application diodes, transistor: D61, D62, T61, T62


Cross section for heat sink type RU

Raw profileRU we have in sztangach length = 2000mm

Example marking RU 152 (profileRU, length 152mm)
Weight 8,9 kg/mb
Application diodes,transistor: D63, D73, D75, D83, T63, T73, T75, T83


Cross section for heat sink type RY

We have RY profiles in barbells with a length of 2000mm and in a raw (metallurgical) form it has technologically folded so-called "Fin". Figure 1 cross-section of a raw RY profile with a bent fin.

In order for power blocks to be built from the RY profile, the bent fin should be straightened properly - see Figure 2.

We have raw profileRY in barbells with a length = 2000mm. Cut to any lengths as desired.

Additional mechanical processing (milling, drilling) and electroplating are possible.

An example of a symbol RY-205/AL.

Means: profileRY, cut to length 205mm, AL - pure aluminum (CZ - black anode)
Weight about 16.05 kg

Application diodes, transistor:D73, D83, D95, T73, T83, T95.




Cross section for heat sink type RY1

Surowy profileRY1 mamy w sztangach o długości = 2000mm
Docinamy na dowolne długości według życzenia.
Możliwa jest dodatkowa obróbka mechaniczna (frezowanie, wiercenie) oraz obróbka galwaniczna.
An example of a symbol RY1-205/AL.
Oznacza: profileRY1, docięty na length 205mm, AL - czyste aluminium (CZ – czarna anoda)
Weight około 16,09 kg
Application diodes, transistor:D73, D83, D95, T73, T83, T95.



Cross section for heat sink type P8394

We have raw profile P8394 in stock in 1000 mm long barbells.
On order, it is possible to supply the profile in any metallurgical length, up to length = 4000mm
We cut to any lengths as desired.
Additional mechanical processing (milling, drilling) and electroplating are possible.

An example of a symbol P8394 / 300 / AL
Means: profile P8394, cut to length 300mm, AL - pure aluminum (CZ - black anode)
Weight: 29.73 kg / linear meter
Application for diodes, thyristors, semiconductor relays, semiconductor bridges.



Cross section for heat sink type RE

We have raw profileR in barbells with a length = 2000 mm
T-slot spacing = 80mm

Example marking RE - 100 (profileRE, length 100mm)
Weight 18,7 kg/mb
Application thyristor modules, rectifier bridges



Cross section for heat sink type RE1

We have raw profile E1 in barbells with a length of 2000 mm
T-slot spacing = 92mm

Example marking RE1 - 100 (profileRE1 length 100mm)
Weight 18,24 kg/mb
Application thyristor modules, rectifier bridges



Cross section for heat sink type RE2

We have raw profileR 2 in barbells with a length = 2000 mm
T-slot spacing = 112mm

Example marking RE2 - 100 (profileRE2 length 100mm)
Weight 22,6 kg/mb
Application thyristor modules, rectifier bridges



Clip for DIN rail for screwing to the heat sink
All steel clasp with spring clasp. Can be attached to heat sinks. Enables mounting heat sinks to the TS35 (DIN) rail.



Cross section for heat sink type RH

We have raw profileR in barbells with a length = 2000 mm
Example marking RH-100 (profileRH length 100mm)
Weight 3,6 kg/mb
Application do diod, tyrystorów, tranzystorów





Example of forced cooling with a fan on the RE heatsink

Example marking

RE 180 (profileRE 180mm long)
RE 180K3 + W, (180mm long RE profiles drilled on one side for a 3-hole fan)
RE-350K3 + 2W (180mm long RE profiles drilled from two sides for a fan with 3 holes)





Cross section for heat sink type RK

We have raw profileRK in barbells with a length = 2000mm
Example marking RK-100 (profileRK with a length of 100mm)
Weight 4,65 kg/mb
Application for diodes, thyristors, relay transistors, bridge rectifiers





Cross section for heat sink type RK1

Example marking RK1-1000 (profileR K1 with a length of 1000 mm)
Weight 6,24 kg/mb
Application for diodes, thyristors, relay transistors, bridge rectifiers





Cross section for heat sink type RK3

Example marking RK3-100 (profileRK3 with a length of 100mm)
Weight 8,16 kg/mb
Application for diodes, thyristors, relay transistors, bridge rectifiers





Cross section for heat sink type RK4

Example marking RK4-100 (profileRK4 with a length of 100mm)
Weight 4,72 kg/mb
Application for diodes, thyristors, relay transistors, bridge rectifiers





Cross section for heat sink type RK5

Example marking RK5-150 (profileRK5 with a length of 150mm)
Weight 4,66 kg/mb
Application for diodes, thyristors, relay transistors, bridge rectifiers





Cross section for heat sink type W3456

We have raw W3456 profiles in barbells = 2500 mm long
Example marking W3456 - 1000 (W3456 profiles with a length of 1000 mm)
Weight 24,70 kg/mb
Application for diodes, thyristors, relay transistors, bridge rectifiers





Cross section for heat sink type RL

Application for high power semiconductor components and low power diodes.
Weight 3,00 kg/mb





Cross section for heat sink type PR 181

Weight 2,1 kg/mb
Application for CRYDOM solid state relays





Cross section for heat sink type W3432

Example marking W3432 - 400 (400 mm length W3432)
Weight 9,80 kg/mb
Application for diodes, thyristors, relay transistors, bridge rectifiers





Radiator PR 32

Gotowe radiatory-anodowane i czernione; możliwość dostawy sprężyny dociskowej.
Example marking PR-32/25,4/SE, PR-32/38,1/SE, PR-32/50,8/SE
Application for medium power solid state relays.





Cross section for heat sink type PR 169

Application for diode, thyristor, transistor and relay modules
Weight 8,60kg/mb





Cross section for heat sink type PR 236

Application for diode, thyristor, transistor and relay modules
Ciężar 18.00 kg/mb





Cross section for heat sink type PR 304

Application for diode, thyristor, transistor and relay modules


Cross section for heat sink type P300-84

We have the raw profile P300-84 in stock in 1000 mm long barbells.
On order, it is possible to supply the profile in any metallurgical length, up to length = 4000mm
We cut to any lengths as desired.
Additional mechanical processing (milling, drilling) and electroplating are possible.
An example of a symbol P300-84 / 330 / AL
Means: profileP300-84, cut to length 330mm, AL - pure aluminum (CZ - black anode)
Weight about 28.44 kg / linear meter
Application for diodes, thyristors, semiconductor relays, semiconductor bridges.



Cross section for heat sink type PR 253

Application for high power semiconductor components
Ciężar 20,00 kg/mb
the profile is adapted to the forced air flow, by means of fans.


Cross section for heat sink type P288

J

it is the widest possible profile extruded in one piece.
We have the raw profile P288 in 1000 mm barbells.
On order, it is possible to supply the profile in any metallurgical length, up to length = 2000mm
We cut to any lengths as desired.
Additional mechanical processing (milling, drilling) and electroplating are possible.
An example of a symbol P288 / 500 / AL
Means: profile P288, cut to length 500mm, AL - pure aluminum (CZ - black anode)
Weight: 38.00 kg / linear meter
Application for diodes, thyristors, semiconductor relays, semiconductor bridges.





Cross section for heat sink type PR 255-259

Application for high power semiconductor components.
Typ B width
[mm]		 Number of ribs
PR255 300 22
PR256 400 30
PR257 500 38
PR258 600 46
PR259 750 58
