Профипласт PBS-P від ​​-40 ° C до + 70 ° С
  • Профипласт PBS-P від ​​-40 ° C до + 70 ° С

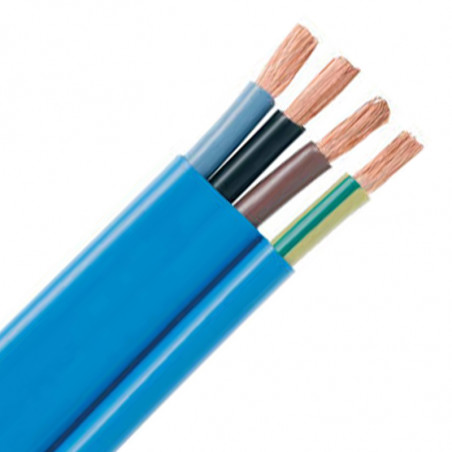

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: OMERIN

Профипласт PBS-P від ​​-40 ° C до + 70 ° С

Characteristics

  • Rated voltage:

fixed installation: 0.6/1 kV
flexible installation: 450/750 V

  • Operating temperature:

outdoor fixed installation: -40°C to +70°C
outdoor flexible installation: -25°C to +70°C
underwater fixed installation: +50°C

  • Test voltage: 2500 V
  • Permanent immersion AD8 according to NF C 15-100
  • Depth of immersion: 250 m - 25 bars
  • Resistance per unit length at 20°C according to IEC 60228

Marking

  • PROFIPLAST PBS-P section mm2 - ACS ALIMENTAIRE - IMMERSION PERMANENTE NF C 15-100 AD8

Packaging

  • Coils. Reels. Drums.

Certifications - Standards

  • NF C 15-100, IEC 60228, NF C 32-070, IEC 60332-1
  • Certification AD8 by Bureau Veritas according to NF C 32-102-16 A-B
  • Contact with food: ACS 11 MAT LI 004
  • France: Official journal no. 1227/2002 and amendments
  • Germany: Federal Law gazette, Part I, Annex 3 (1992)
  • Belgium: Royal Belgian decrees: Belgian Gazette (MB) of 24.07.1992 and updates
  • Spain: Royal decree 2207/94 of 16 November 1994 and updates
  • Italy: Italian ministerial decree of 21 March 1973 (GU No. 104 of 20 April 1973) and updates
  • The United Kingdom: British regulations “Statutory instruments” No.1376 (1998) and updates
  • CE: Directive 2002/72/CE

Applications

  • Ideal for the power supply of submersible pumps in direct contact with fresh water, PROFIPLAST® PBS-P is certified by Bureau Veritas AD8 (immersion and submersion) in accordance with standard NF C 15-100. This cable is certified ACS (Certificate of Sanitary Conformity) by the Institut Pasteur in Lille which guaranties its use in “water and environment”.

Options

  • Flexible tin plated copper core: contact us
  • Other cross-sections: contact us
  • Other dimensions: contact us
 PROFIPLAST PBS-P -40°C do + 70°C kable wielożyłowy do zastosowań specjalnych

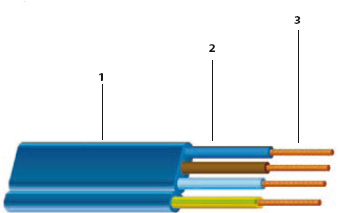

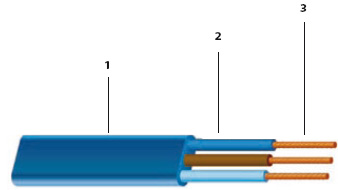

1- Flexible bare copper core class 5 - IEC 60228
2- Insulation: isovinyl
Plain or two-tone colours or numbering
3- Sheath: Atoxic PROFIPRENE
Standard colour: blue RAL 5012

PROFIPLAST PBS-P -40°C do + 70°C zastosowania specjalne
Nominal cross-section (mm2) Nominal composition Diameter of insulated conductors
[mm]		 Nominal external diameter (mm) Approximate linear weight (kg/km)
4 G 1,5 28 x 0.245 3.0 5.4 x 16.8 139
4 G 2,5 47 x 0,245 3.6 6.3 x 19.8 204
4 G 4 56 x 0,290 4.3 7.5 x 23.6 318
4 G 6 80 x 0.290 4.8 8.2 x 26.0 424
4 G 10 84 x 0.380 6.2 10.0 x 32.4 580
4 G 16 132 x 0.380 7.4 11.4 x 37.6 890
4 G 25 175 x 0.400 9.5 13.5 x 46.0 1350
4 G 35 238 x 0.400 10.6 14.8 x 50.8 1830



Nominal cross-section (mm2) Nominal composition Diameter of insulated conductors
[mm]		 Nominal external diameter
[mm]		 Approximate linear weight
[kg/km]
3 x 1,5 28 x 0,245 3.0 5.4 x 11.4 109
3 x 2,5 47 x 0,245 3.6 6.3 x 13.5 168
3 x 4 56 x 0,290 4.8 8.2 x 17.8 345
3 x 10 84 x 0.380 6.2 10.0 x 22.4 467
3 x 16 132 x 0,380 7.4 12.4 x 27.6 675
3 x 25 175 x 0,40 9.5 13,5 x 32,5 1035
3 x 35 238 x 0,40 10.6 14,8 x 36 1295
3 x 50 377 x 0,40 12.9 17,5 x 43,3 1810
3 x 70 340 x 0,500 14.8 19,4 x 49 2995
4 G 1,5 28 x 0.245 3.0 5.4 x 14.5 140
4 G 2,5 47 x 0,245 3.6 6,3 x 17,2 190
4 G 4 56 x 0,290 4.4 8.5 x 23.5 320
4 G 6 80 x 0,290 5.1 9.0 x 25.0 420
