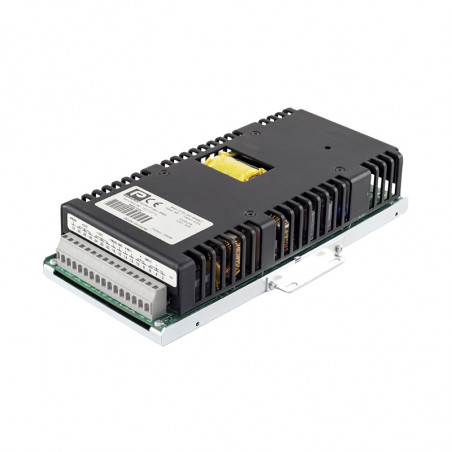

Railway 180-280W Industrial DC/DC converters

All DC/DC converters from the CTS-240 series meet the requirements of EN50155 for electronic equipment used in rolling applications and are approved for the fire and smoke EN45545-2. This converter series has been designed to fit in a wide variety of railway applications and track record in numerous projects over the years, offering a 5 year warranty.

All models have adjustable output voltage and generate up to 280W. The CTS-240 converter series offers a wide variety of input-output combinations and allow parallel connection. These DC/DC converters are presented in Eurocard 3U format and have an optional alarm. In addition, they allow easy mounting on surface, subrack or DIN rail. They are also cooled by natural convection and with a robust design, it can fit in harsh environments being able to operate at up to -40ºC to 85ºC.

The CTS-240 has an up to date high efficiency circuit design that gives models up to 92% efficiency and protection against overloads, short-circuits, reverse input voltage, input under-voltage and over-currents.

• Designed according to EN50155
• Fire and smoke: EN45545-2 approved
• High input-output isolation
• Standard size Eurocard 3U
• Adjustable output voltage
• Input voltage OK LED
• Output voltage presence LED
• Remote inhibit
• Option: remote sensing or alarm
• Efficiency up to 92%

• 19″ rack front panel (3U 9TE)
• Mounting base
• DIN rail mounting Kit
• Redundant connection

• Spring clamp terminal
• DIN 41612 H15
