Серия GLL
  • Серия GLL

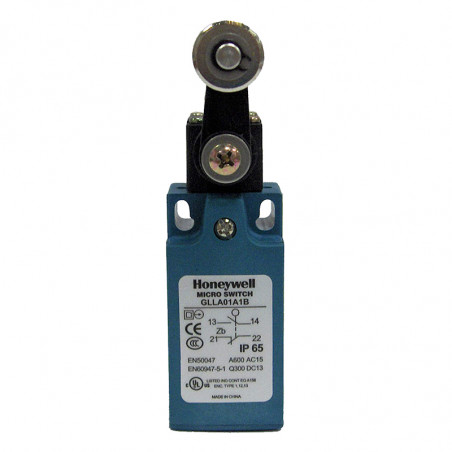

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: Honeywell

Серия GLL

Technical data

Electric load: 10A, 300 VAC/ 250 VDC
Cable lead out: gland
Operation temperature: -10...80°C
Vibration resistance: 10g
Casing material: plastic
Shock resistance: 50a
Contacts: 1NO 1NC
Approvals: UL, C-UL, CE
IP: IP65
Life time: 5x106operations


GLLA01B
GLLC01B
GLLA01C
GLLC01
GLLA01A1B
GLLC01A1B
Lever type Pusher Pusher with roller Side lever with roller
Operating Force O.F. 9,8 N max. [2.22 Ibs] 9,8 N max. [2.22 Ibs] 12,0 N-cm [1.062 Ib-in]
Release Force R.F. 1,5 N max. [0.34 Ibs] 1,5 N max. [0.34 Ibs] 2,0 N-cm [0.177 Ib-in]
Pretravel P.T. 2,8 mm max. [0.11 in] 2,8 mm max. [0.11 in] 30° max.
Overtravel O.T. 3,0 mm min. [0.12 in min.] 3,0 mm min. [0.12 in min.] 40° min.
Differential travel D.T. 1,5 mm max. [0.06 in max] 1,5 mm max. [0.06 in max] 18° max.
Operating Position O.P. 18 mm± 0,5 mm
[0.71 in ± 0.02 in]		 28,7 mm± 0,5 mm
[1.13 in ± 0.02 in		 30°


GLLA02B
GLLC02B
GLLA01A1Y
GLLC01A1Y
GLLA01A2Y
GLLC01A2Y
Lever type Regulated side lever with roller Side lever with rubber roller 50 mm Regulated side lever with rubber roller 50 mm
Operating Force O.F. 12,0 N-cm [1.062 Ib-in] 12,0 N-cm [1.062 Ib-in] 12,0 N-cm [1.062 Ib-in]
Release Force R.F. 2,0 N-cm [0.177 Ib-in] 2,0 N-cm [0.177 Ib-in] 2,0 N-cm [0.177 Ib-in]
Pretravel P.T. 30° max. 30° max. 30° max.
Overtravel O.T. 40° min. 40° min. 40° min.
Differential travel D.T. 18° max. 18° max. 18° max.
Operating Position O.P. 30° 30° 30°

Dimensions [mm/in]

GLLA01A1Y, GLLC01A1Y
GLLA01A2Y, GLLC01A2Y
GLLA01B, GLLC01B
GLLA01C, GLLC01C
GLLA01A1B, GLLC01A1B
GLLA01A2B, GLLC01A2B

Catalogue number
