VC9808 + мультиметр RLC Energylab

  • 111553

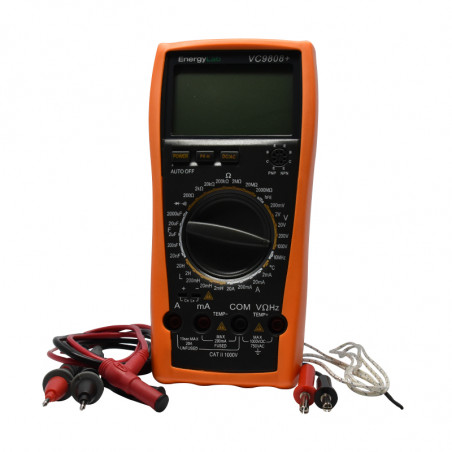

The VC9808+ RLC EnergyLab Multimeter is a precision 3 1/2 digit multimeter (max 1999) with RLC measurement functions. It is equipped with a display with a digit height of 26mm, which allows easy reading and convenient operation. The parameters measured by the multimeter are: DCV voltage up to 1000V and ACV 750V, current DCA and ACA up to 20A, resistance up to 2000 M Ohm, capacity 2000 uF, inductance 20 H, temperature 1000 degrees C, frequency 10 MHz, diode test, hFe test of transistors and continuity test. The multimeter is protected against overload. In order to ensure high accuracy and resolution of the measurements, an A / D converter with double integration was used. The housing is made of durable ABS plastic and additionally secured with a rubber protective cover. The meter version meets the safety category III 1000V.

  • Display: 3 ½ max. Indication 1999
  • Sampling 3x / s
  • LCD display (26mm digits high)
  • PEAK HOLD stop function on the maximum value display
  • Low battery indication
  • Auto-shutdown
  • Overload protection
  • Safety: EN61010-1, CAT II 1000V
Менше
Читати більше

Відправити запит

Ви зацікавлені у цьому продукті? Вам потрібна додаткова інформація або індивідуальні розцінки?

Зв'яжіться з нами
Запитайте про продукт close
Дякуємо за надіслане повідомлення. Ми відповімо якомога швидше.
Запитайте про продукт close
Огляд
Надіслати запит

Додати до списку бажань

Ви повинні увійти в систему

The VC9808+ RLC EnergyLab Multimeter is a precision 3 1/2 digit multimeter (max 1999) with RLC measurement functions. It is equipped with a display with a digit height of 26mm, which allows easy reading and convenient operation. The parameters measured by the multimeter are: DCV voltage up to 1000V and ACV 750V, current DCA and ACA up to 20A, resistance up to 2000 M Ohm, capacity 2000 uF, inductance 20 H, temperature 1000 degrees C, frequency 10 MHz, diode test, hFe test of transistors and continuity test. The multimeter is protected against overload. In order to ensure high accuracy and resolution of the measurements, an A / D converter with double integration was used. The housing is made of durable ABS plastic and additionally secured with a rubber protective cover. The meter version meets the safety category III 1000V.

  • Display: 3 ½ max. Indication 1999
  • Sampling 3x / s
  • LCD display (26mm digits high)
  • PEAK HOLD stop function on the maximum value display
  • Low battery indication
  • Auto-shutdown
  • Overload protection
  • Safety: EN61010-1, CAT II 1000V
