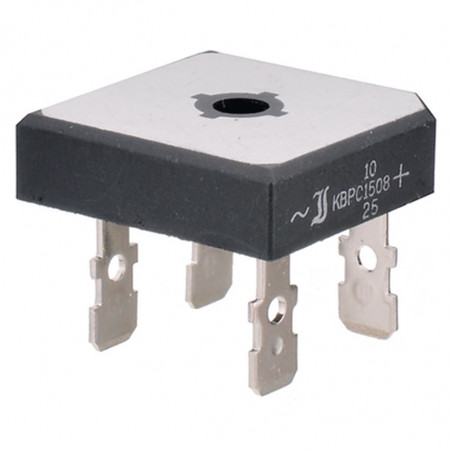

Однофазні випрямлячі моста
  • Однофазні випрямлячі моста

Фотографії призначені тільки для інформаційних цілей. Подивитися специфікацію продукту

please use latin characters

Виробник: Diotec

Однофазні випрямлячі моста

Casing type3 x 3 x 1.8 (So)4.7 x 3.9 x 2.4 (So)8.5 x 6.6 x 3.28.5 x 6.6 x 3.2
One phase bridgesVoltage
VRRM
[V]		;
Current0,5 [A]0,8 [A]1 [A]1 [A]
Standard 40 MYS20 S20 B20S B20D
80 MYS40 S40 B40S B40D
160 MYS80 S80 B80S B80D
250 MYSI 25 S125 B125S B125D
600 MYS250 S250 B250S B250D
800 S380 B380S B380D
1000 S500 B500S B500D
Fast 40 B20FS B20FD
80 B40FS B40FD
160 B80FS B80FD
250 B125FS B125FD
600 B250FS B250FD
800 B380FS B380FD

Casing type19 x 4.4 x 10Ø 8.5 x 5.132 x 5.6 x 17
One phase bridgesVoltage
V RRM
[V]
Current2.3 [A] / 1.5 [A]2 [A]3.2 [A] / 2.2 [A]3.7 [A] / 2.2 [A]5 [A] / 3 [A]5 [A] / 3.3 [A]7 [A] / 4 [A]
Standard 80 B40C2300-1500 B40R B40C3200-2200 B40C3700-2200 B40C5000-3000 B40C5000-3300 B40C7000-4000
160 B80C2300-1500 B80R B80C3200-2200 B80C3700-2200 B80C5000-3000 B80C5000-3300 B80C7000-4000
250 B125C2300-1500 B125R B125C3200-2200 B125C3700-2200 B125C5000-3000 B125C5000-3300 B125C7000-4000
600 B250C2300-1500 B250R B250C3200-2200 B250C3700-2200 B250C5000-3000 B250C5000-3300 B250C7000-4000
800 B380C2300-1500 B380R B380C3200-2200 B380C3700-2200 B380C5000-3000 B380C5000-3300 B380C7000-4000
1000 B500C2300-1500 B500R B500C3200-2200 B500C3700-2200 B500C5000-3000 B500C5000-3300 B500C7000-4000

Casing type19 x 4.4 x 1032 x 5.6 x 17
One phase bridgesVoltage
V RRM
[V]
Current4 [A]10 [A]15 [A]20 [A]25 [A]
Standard 50 GBS4A GBI10A GBI15A GBI20A GBI25A
100 GBS4B GBI10B GBI15B GBI20B GBI25B
200 GBS4D GBI10D GBI15D GBI20D GBI25D
400 GBS4G GBI10G GBI15G GBI20G GBI25G
600 GBS4J GBI10J GBI15J GBI20J GBI25J
800 GBS4K GBI10K GBI15K GBI20K GBI25K
1000 GBS4M GBI10M GBI15M GBI20M GBI25M

Casing type20.8 x 3.3 x 1823.5 x 19.3 x 5.7
One phase bridgesVoltage
V RRM
[V]
Current4 [A]6 [A]8 [A]12 [A]4 [A]6 [A]8 [A]12 [A]
Standard 50 GBU4A GBU6A GBU8A GBU12A KBU4A KBU6A KBU8A KBU12A
100 GBU4B GBU6B GBU8B GBU12B KBU4B KBU6B KBU8B KBU12B
200 GBU4D GBU6D GBU8D GBU12D KBU4D KBU6D KBU8D KBU12D
400 GBU4G GBU6G GBU8G GBU12G KBU4G KBU6G KBU8G KBU12G
600 GBU4J GBU6J GBU8J GBU12J KBU4J KBU6J KBU8J KBU12J
800 GBU4K GBU6K GBU8K GBU12K KBU4K KBU6K KBU8K KBU12K
1000 GBU4M GBU6M GBU8M GBU12M KBU4M KBU6M KBU8M KBU12M

Casing type28.6 x 28.6 x 7.328.6 x 28.6 x 10
One phase bridgesVoltage
V RRM
[V]
Current10 [A]15 [A]25 [A]35 [A]50 [A]25 [A]35 [A]
Standard 50 KBPC1000 KBPC1500 KBPC2500 KBPC3500 KBPC5000 *) KBPC2500 I KBPC3500 I
100 KBPC1001 KBPC1501 KBPC2501 KBPC3501 KBPC5001 *) KBPC2501 I KBPC3501 I
200 KBPC1002 KBPC1502 KBPC2502 KBPC3502 KBPC5002 *) KBPC2502 I KBPC3502 I
400 KBPC1004 KBPC1504 KBPC2504 KBPC3504 KBPC5004 *) KBPC2504 I KBPC3504 I
600 KBPC1006 KBPC1506 KBPC2506 KBPC3506 KBPC5006 *) KBPC2506 I KBPC3506 I
800 KBPC1008 KBPC1508 KBPC2508 KBPC3508 KBPC5008 *) KBPC2508 I KBPC3508 I
1000 KBPC1010 KBPC1510 KBPC2510 KBPC3510 KBPC5010 *) KBPC2510 I KBPC3510 I
1200 KBPC1012 KBPC1512 KBPC2512 KBPC3512
1400 KBPC1014 KBPC1514 KBPC2514 KBPC3514 *) tylko
1600 KBPC1016 KB'C1516 KBPC2516 typ F

Casing type15.2 x 15.2 x 6.319 x 19 x 6.815.1 x 15.1 x 5
One phase bridgesVoltage
V RRM
[V]
Current6 [A]8 [A]10 [A]10 [A]
Standard 50 KBPC600 KBPC800 PB1000 PB1000S
100 KBPC601 KBPC801 PB1001 PB1001S
200 KBPC602 KBPC802 PB1002 PB1002S
400 KBPC604 KBPC804 PB1004 PB1004S
600 KBPC606 KBPC806 PB1006 PB1006S
800 KBPC608 KBPC808 PB1008 PB1008S
1000 KBPC610 KBPC810 PB1010 PB1010S
